Introduction:
ETS 3166 and ETS 3167 antennas are produced by the United States ETS-Lindgren and authorized by the Shenzhen EUTTEST agent sales of TEM horn antennas, ETS-Lindgren's ETS 3166 and ETS 3167 type TEM horn antennas in the frequency range of 380 MHz to 6 GHz to generate a homogeneous field, specifically designed for proximity immunity testing in accordance with IEC / EN 61000-4-39 standard for proximity immunity testing.
Difference between ETS 3166 and ETS 3167:
The ETS 3166 model operates from 380 MHz to 3 GHz with a VSWR of less than 7:1 at 400 MHz to 700 MHz and 3:1 at 700 MHz and above.
The ETS 3167 has a VSWR of less than 2:1 over the frequency range of 3 GHz to 6 GHz.
Antenna features found in both the ETS 3166 and ETS 3167:
Generates a uniform magnetic field for immunoassay testing
Proximity immunity test
IEC / EN 61000-4-39 standards
Contact EUTTEST for a detailed installation plan
Technical data of the ETS 3166 and ETS 3167 antennas:
<<<<提醒:左右滑动表格>>>>Frequency range | 700MHz-6GHz |
Cross-polarized isolation | >25dB |
Maximum continuous power | 5W |
connector | SMA mother |
impedance | 50Ω |
Antenna type | directional |
polarize | bipolar |
Available Models | ETS 3166 and ETS 3167 Antennas - MG ETS 3166 and ETS 3167 Antennas - SQ ETS 3166 and ETS 3167 Antennas - RD |

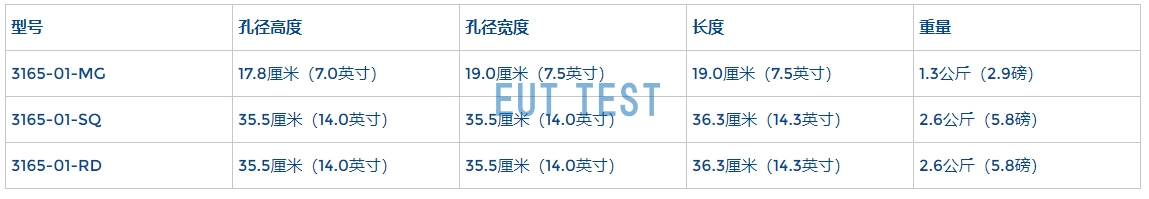

Standard Accessories | Includes antenna for selected mounts (specified when ordering): MG-Magnetic Seat SQ-Mounted to 50.8 mm (2 in. x 2 in.) square tube RD-Mounted to 50 mm (1.96 in) round tube Individually calibrated at 1 m according to SAE ARP 958 |

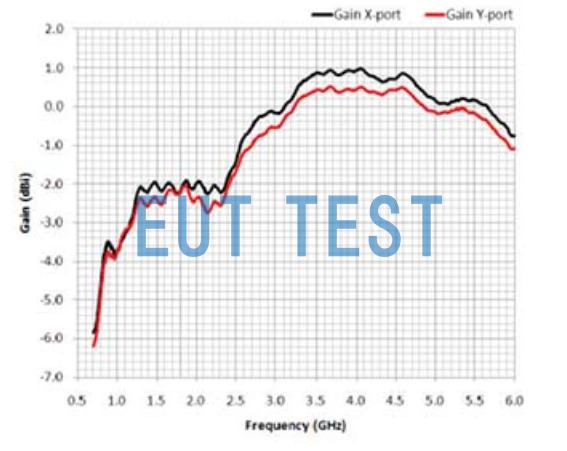

Gain diagram for ETS 3166 and ETS 3167 antennas

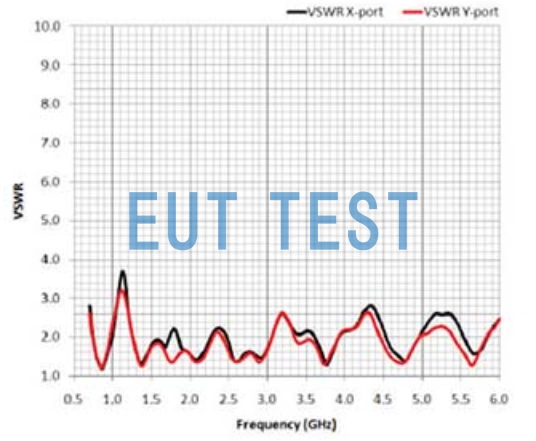

VSWR for ETS 3166 and ETS 3167 Antennas
