ETS 3162-01 ETS-lindgren Radar Wave Immunity

Model: ETS 3162-01
Type: Horn Antenna
Brand: ETS-Lindgren

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

ETS 3162-01 radar wave transmitting antenna is a product generated by ETS-lindgren, USA and authorized to be distributed by EUTTEST Shenzhen. ETS-Lindgren's ETS 3162-01 high gain horn antenna is used for radar wave immunity testing. The ETS 3162-01 was developed specifically for automotive electronic component test standards such as GMW 3097 and ES-XW7T-1A278-AC. These radar wave tests require the EUT to be exposed to a peak pulse field level of 600 V/m at a distance of 100 cm (3.28 ft) from the front of the horn.

Due to near-field gain compression, most speakers are unable to meet this specification at the required test distance. The ETS 3162-01 Radarwave antenna optimizes the near-field behavior to overcome this problem and produces a field level of 600 V/m with less than 500 W input power.

Technical data for ETS 3162-01:

<<<<提醒:左右滑动表格>>>>
Antenna ModelETS 3162-01
Product nameRadar wave immunity for automotive electronic components Transmitter antenna, double ridge horn antenna
manufacturerETS-lindgren
agentEUTTEST
Available frequency1.1GHz-1.5GHz
Maximum continuous power550W (600V/m@500W)
peak power700W
VSWRMaximum 2:1

Typical 1.5:1

connectorN
polarizebiometrics
orientationsdirectional
sizeHeight: 74.68 cm (29.40 inches)

Length: 160.27 cm (63.10 inches)

Width: 64.77 cm (25.50 inches)

Weight: 23.6 kg (52.03 lbs)

Random AccessoryPyramid horn antenna with coaxial to waveguide adapter

Two-year warranty

<<<<提醒:左右滑动表格>>>>

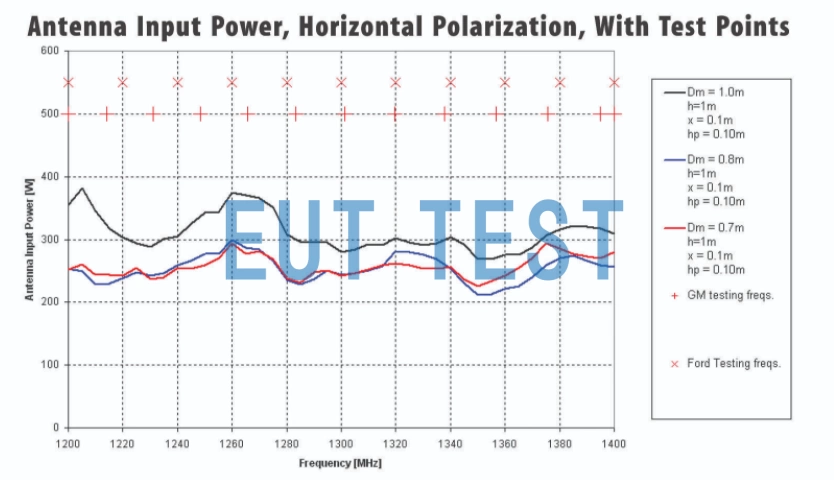

 ETS 3162-01 Radar Wave Immunity Antenna Horizontally Polarized Antenna Input Power

ETS 3162-01 Radar Wave Immunity Antenna Horizontally Polarized Antenna Input Power

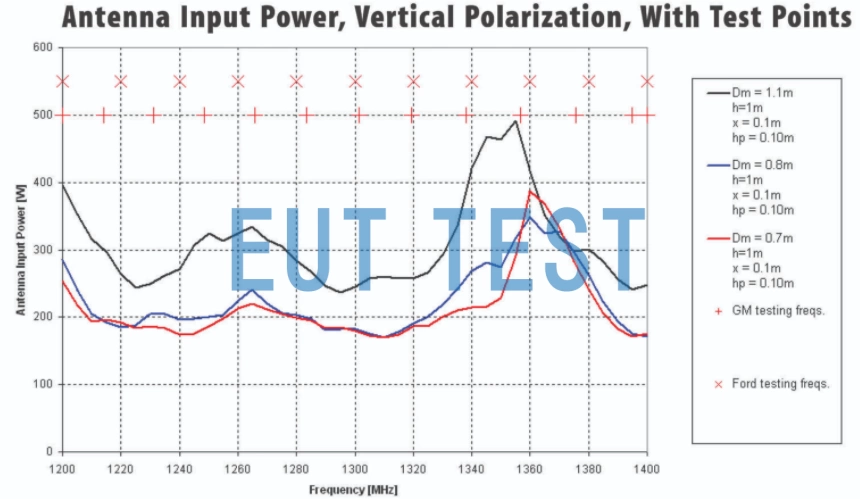

 ETS 3162-01 Radar wave immunity antenna vertical polarization antenna input power

ETS 3162-01 Radar wave immunity antenna vertical polarization antenna input power
