Introduction：

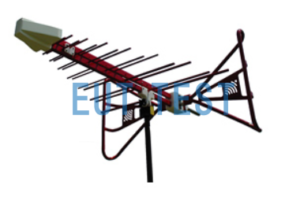

ETS 3149 is a log-periodic hybrid antenna manufactured by ETS-Lindgren in the U.S.A. and authorized for sale by EUTTEST in Shenzhen, China. ETS-Lindgren's Hybrid Log-Periodic and Bowtie (BiConiLog) Antenna Type ETS 3149 has an ultra-wideband frequency range, accepts high-power inputs, and has a compact size for easy transportation and compact indoor use. and use in compact rooms. Rugged construction ensures dimensional and electrical stability over time. The electrical characteristics of the antenna were modeled using a powerful workstation running electromagnetic simulation software. Equally important, experienced RF engineers worked with our manufacturing team to implement the modeling process in a practical and affordable manner. Once completed, the antenna was tested and calibrated in our A2LA accredited lab. All production units are individually calibrated at this facility.
Technical data of the ETS 3149:
<<<<提醒：左右滑动表格>>>>| Model number | ETS 3149 |
| manufacturer | ETS-lindgren |
| agent | Shenzhen EUTTEST |
| Available frequency range | 80MHz-6GHz |
| connector | N mother |
| impedance | 50Ω |
| antennae direction | directional |
| polarize | biometrics |
| VSWR | Maximum 6:1 |
| size | Height: 52.24 cm (20.57 inches) Length: 121.5 centimeters (47.83 inches) Width: 91.0 cm (35.83 inches) Weight: 5.0 kg (11.02 lbs) |
| standard equipment | Antenna components Rear "Stinger" bracket Drilled mounting bracket accepts ETS-Lindgren or other tripod mounts with 1/4 in x 20 threads Individually calibrated at 10 m H Pol. Conforms to ANSI C63.5 Antennas are supplied with VSWR only and typical gains can be found in the manual. If antenna gain is required, an additional charge will apply. brochure |
More technical data charts:

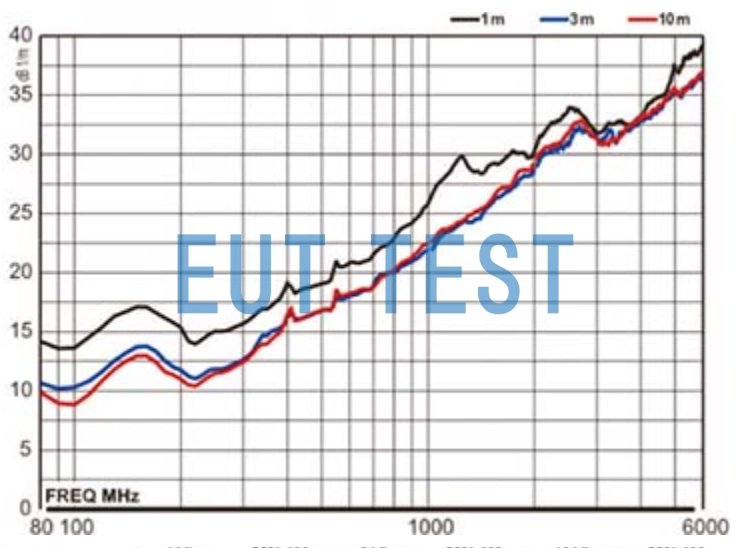

Antenna factor for ETS 3149

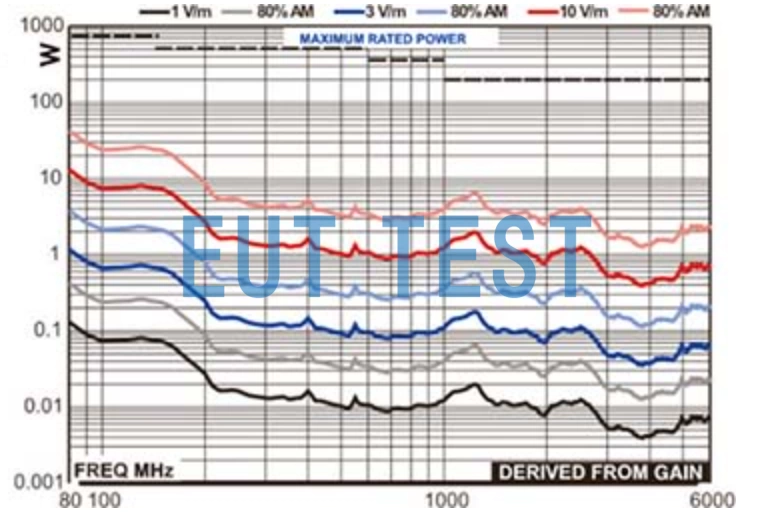

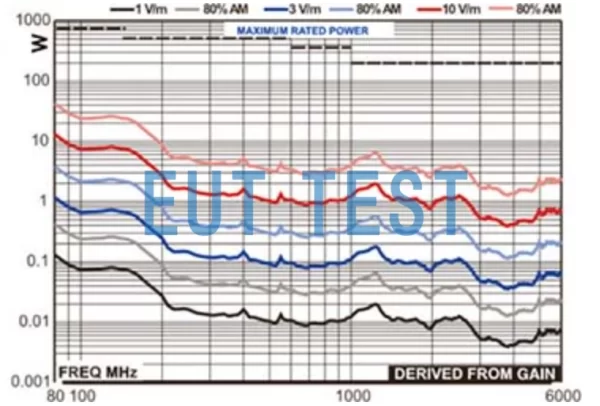

ETS 3149 Forward power of antenna at 1 meter position

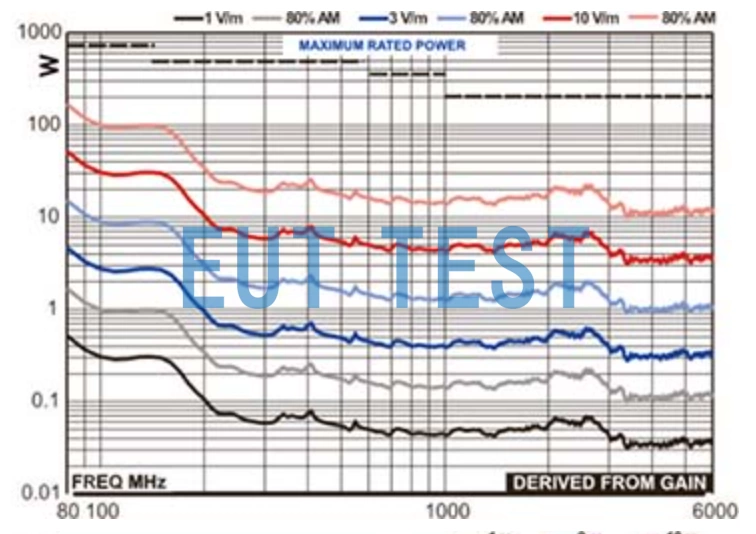

ETS 3149 Forward power of antenna at 3 meters

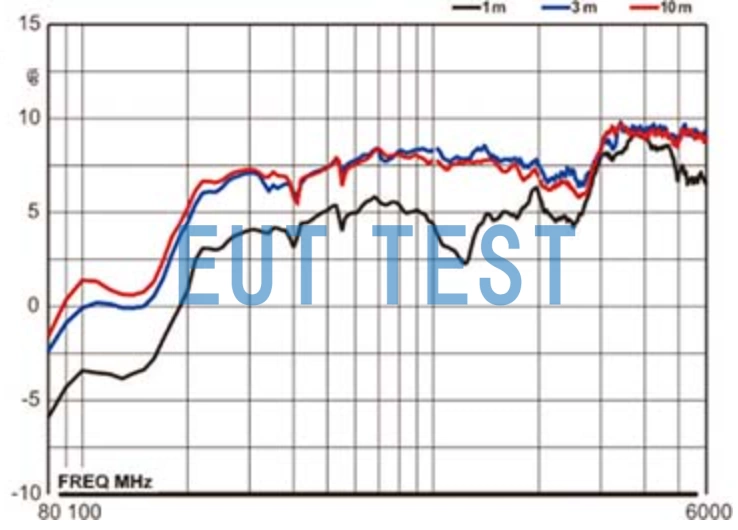

Antenna Gain of ETS 3149

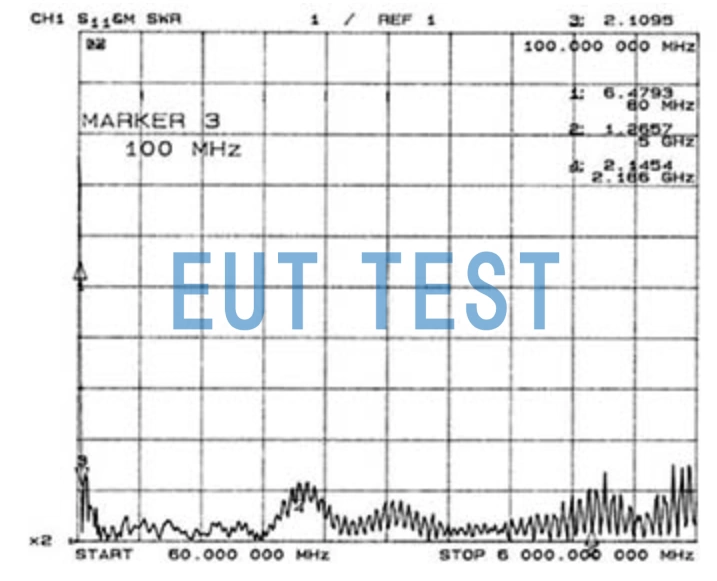

Antenna VSWR of ETS 3149
