Introduction：
The ETS 3144 Log Periodic Dipole Array (LPDA) antenna, manufactured by ETS-LINDGREN in the U.S.A. and authorized to be distributed by EUTTEST in Shenzhen, China, is a standard medium gain (6 dBi) log periodic dipole array. This logarithmic antenna allows the user to scan frequencies from 80 MHz to 2 GHz in one pass, eliminating the need to replace the antenna in the event of a band break, saving time and money.
In addition, the high power input capacity of the ETS 3144 is ideally suited for IEC 61000-4-3 testing and applications that require field strengths in excess of 100 V/m to be generated. The antenna has a hard powder-coated surface that resists scratches and abrasions better than painted or bare surfaces. The ETS 3144 is calibrated to 1 m according to SAE ARP 958 and 3 m and 10 m according to ANSI C63.5, respectively.The antenna also comes with a signed certificate of compliance with the calibration.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | ETS 3144 |
| factory owners | ETS-LINDGREN, USA |
| agent | EUTTEST Shenzhen provides quotation and after-sales service. |
| Available frequency range | 80MHz-2GHz |
| connector | Nf |
| impedance | 50Ω |
| Maximum continuous power | 1000W |
| peak power | 2.6kW |
| standing wave ratio (physics) | 1.2:1 |
| antennae direction | directional |
| polarize | biometrics |
| size | Height: 9.5 cm (3.74 inches) Length: 170.2 cm (67.01 inches) Weight: 4.5 kg (9.92 lbs) Width: 210.8 cm (82.99 inches) |
More technical data charts:

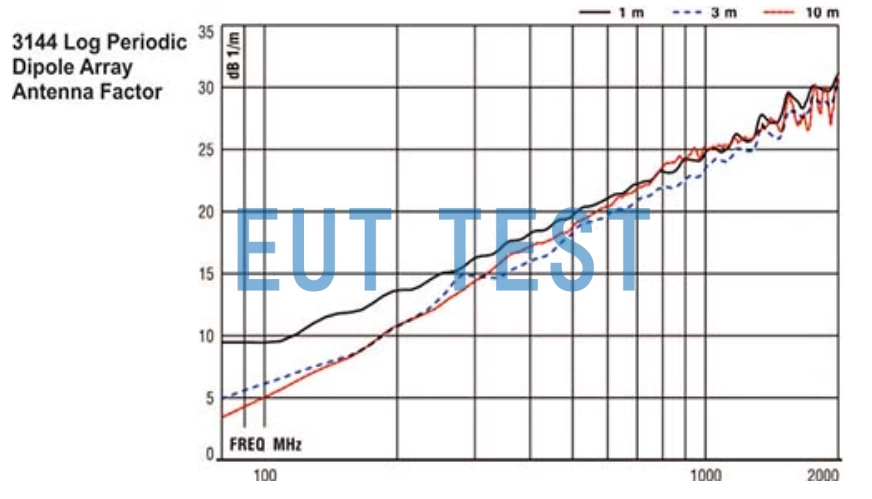

ETS 3144 Coefficients of log-periodic antennas
ETS 3144 Input power for immunity applications
