Introduction：
The ETS 3142E is a log-periodic hybrid antenna manufactured by ETS-Lindgren in the U.S.A. and distributed by EUTTEST in Shenzhen, China. ETS-Lindgren's BiConiLog antenna, Type ETS 3142E, allows the user to make sweeping measurements over the frequency range of 30 MHz to 6 GHz in a single pass, eliminating the need for multiple antennas and time-consuming equipment setup. Accuracy and repeatability are improved while saving time and money. The BiConiLog is designed as a dual-purpose antenna that can be used for both immunity and emission testing.
BiConiLog Type ETS 3142E is suitable for RE (radiated emission) measurements. For RS radiated immunity applications, ETS-Lindgren recommends the use of the 3140B Biconilog.
ETS 3142E Technical Data:
| Model number | ETS 3142E |
| manufacturer | ETS-lindgren |
| agent | Shenzhen EUTTEST |
| Available frequency range | 30MHz-6GHz |
| connector | N mother |
| impedance | 50Ω |
| Maximum continuous power | inapplicable |
| antennae direction | directional |
| peak power | inapplicable |
| polarize | biometrics |
| VSWR | 2:1 |
| size | Height: 76.2 cm (30.0 inches) Width: 133.9 cm (52.7 inches) Depth: 139.2 cm (54.8 in) Weight: 5.7 kg (12.6 lbs) |
| standard equipment | Antenna Assembly Rear "Stinger" bracket Drilled mounting bracket accepts ETS-Lindgren or other tripod mounts with 1/4 in x 20 threads Individually calibrated at 10 m H Pol. Conforms to ANSI C63.5 The actual factors and calibration consistency of the signed certificates are I ncluded in the manuals. brochure |
Detailed charts of technical parameters:

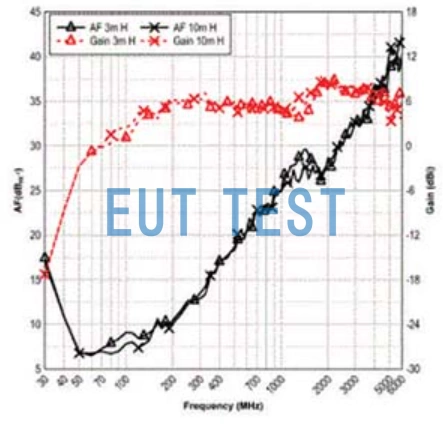

Antenna factor for ETS 3142E

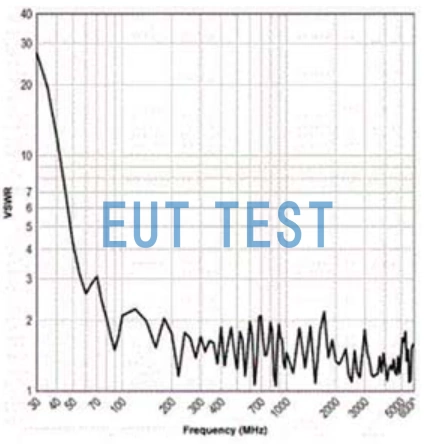

Antenna VSWR for ETS 3142E

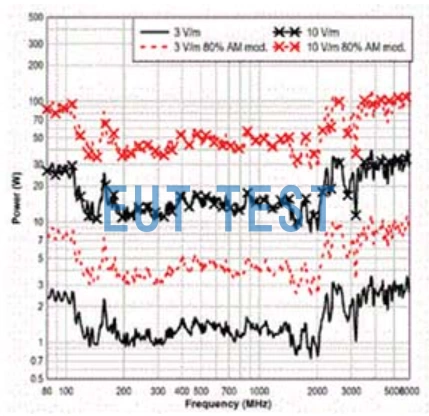

ETS 3142E Verification of 16-point field uniformity at 3 m position - horizontal polarization

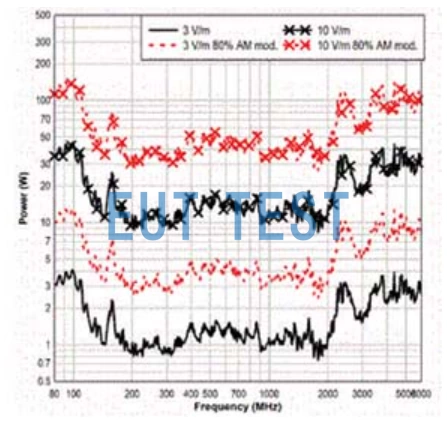

ETS 3142E Verification of 16-point field uniformity at 3 m position - vertical polarization
