Introduction：
The ETS 3116C antenna is a double-ridged horn antenna manufactured by ETS - Lindgren, USA and distributed by EUTTEST Shenzhen, ETS 3116C is the antenna model and ETS 3116C-PA is the horn antenna + preamplifier option. This antenna is ideal for use as a receive antenna for transmit tests above 18 GHz. Note that the 3116-PA is not suitable for RSE testing with specialized radiators.
Optional 1GHz-18GHz antennas are available if needed:3115-PB ets-lindgren Double Ridge Horn Antenna 1-18GHz

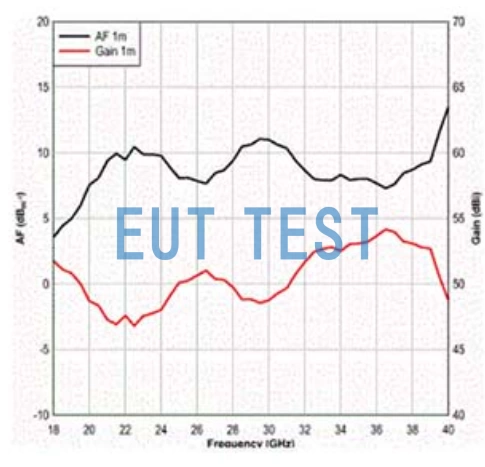

ETS 3116C Antenna Technical Data:
| Antenna Model | 3116C |
| producers | ETS - Lindgren |
| Authorized Agents | Shenzhen EUTTEST |
| Frequency range | 18GHz-40GHz |
| VSWR | N/A Rx only |
| Maximum continuous input power | N/A |
| impedance | 50Ω |
| connector | 2.92mm f |
| antennae direction | directional |
| polarize | biometrics |
| size | Length: 14.2 centimeters (5.59 inches) Width: 26.9 cm (10.59 inches) Height: 22.1 cm (8.70 inches) |
| weight | 1.4kg |
| Shipping List | Antenna and preamplifier (optional) 1/4 inch x 20 thread mounting bracket AC/DC power supply for preamplifier modules Calibrated separately at 1 m in our A2LA accredited laboratory in accordance with SAE ARP 958 Manual accompanied by actual antenna factors and signed calibration compliance certificate brochure |
