Introduction：
The ETS 3112 Double Ridge Horn Antenna is a product manufactured by ETS-lindgren in the U.S.A. and authorized to be distributed by EUTTEST in Shenzhen, China.ETS-Lindgren's ETS 3112 Double Ridge Waveguide Horn is a linearly polarized broadband antenna that delivers high gain and excellent VSWR characteristics over a broadband frequency range of 100 MHz to 1 GHz. The antenna is particularly effective for generating high electromagnetic fields with low power inputs.
The high gain of the ETS 3112 makes it suitable for generating the high magnetic fields (200 V/m) required by ISO 11451-2 and SAE J551 / 11 standards for radiated immunity in all-vehicle automobiles below 2 kW. In addition, because the Model ETS 3112 is a double-ridged waveguide horn, it is a MIL-STD-461E recognized antenna, making the low-frequency performance of this type of antenna satisfactory.
Like the other double-ridged waveguides in the series, the ETS Type 3112 is precision manufactured from aluminum, making it durable and relatively lightweight. To maximize performance, N-type connectors are used (other connectors are available on request). Each antenna is individually calibrated in our A2LA-accredited test lab and comes with actual factors and a signed certificate of compliance. A two-year warranty is included.
ETS 3112 Technical Data:
| Product model | ETS 3112 |
| producers | ETS-lindgren |
| agent | EUTTEST |
| Available frequency range | 100MHz-1GHz |
| Maximum continuous power | 800W |
| Maximum power | 2000W |
| connector | 7/16 |
| impedance | 50Ω |
| standing wave ratio (physics) | 1.6:1 |
| polarize | biometrics |
| antennae direction | directional |
| size | Height: 144 cm (56.69 inches) Length: 195.6 centimeters (77.01 inches) Width: 186.6 cm (73.46 inches) Weight: 86.1 kg (189.82 lbs) |
| Random Accessory | antenna Mounting Bracket Welded aluminum struts and front struts Individually calibrated at 1 m according to SAE ARP 958 Provide actual antenna coefficients and a signed certificate of calibration compliance. Two-year warranty Option: 109621 Pneumatic Polarization Positioning System |
Charts related to technical parameters:

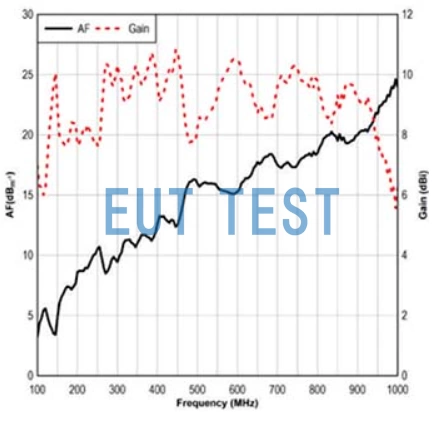

Antenna Coefficients and Gain for the ETS 3112

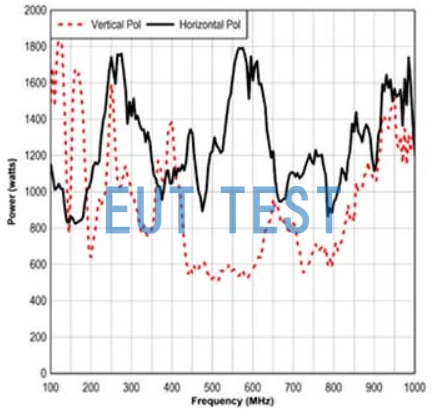

ETS 3112 Antenna Power Required to Generate 200V/m@2m Field Strength

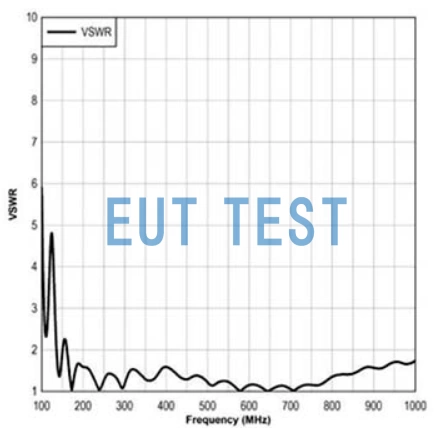

ETS 3112 VSWR for Antennas
E-field and H-field orientation diagrams for the ETS 3112 antenna can be obtained by contacting EUTTEST.
