ETS 3106B Introduction:
The ETS 3106B Double Ridge Horn Antenna is a product manufactured by ETS lindgren in the USA and authorized to be distributed by EUTTEST Shenzhen. The 3106B has high gain and excellent VSWR characteristics over the entire frequency range. ETS-Lindgren's 3106B double-ridged horn antenna is particularly effective for generating high electromagnetic fields with relatively low power input. The antenna can also be used to receive low-level signals that require high gain characteristics. Despite its large size of 93.3 cm (36.7 in.), the antenna weighs only 11.8 kg (26 lb.) N-type female connectors are used to increase power handling capability, and optional RF connectors are available.
The ETS 3106B Double Ridge Horn Antenna has uniform gain over the entire frequency range for effective performance characteristics and directionality. It can handle 1000 W peak and 800 W continuously.Our 3106B Double Ridge Horn Antenna is constructed of lightweight, corrosion-resistant aluminum for years of trouble-free indoor and outdoor service.
ETS 3106B Technical Data:
<<<<提醒：左右滑动表格>>>>| Product model | ETS 3106B |
| producers | ETS-lindgren |
| agent | EUTTEST |
| Available frequency range | 200MHz-2.5GHz |
| connector | N mother |
| impedance | 50Ω |
| standing wave ratio (physics) | 1.6:1 |
| polarize | biometrics |
| antennae direction | directional |
| 3106B Input power (standard with N-type connector) | <300 MHz: 1000W 300 MHz to 1 GHz: 500W 1 GHz to 2.5 GHz: 300W |
| 3106B -7 / 16 DIN Input Power | <300 MHz: 1600W 300 MHz to 1 GHz: 800W 1 GHz to 2.5 GHz: 500W |
| 3106B -SC Input Power | <300 MHz: 1000W 300 MHz to 1 GHz: 500W 1 GHz to 2.5 GHz: 300W |
| size | Height: 72.9 cm (28.70 inches) Length: 97.8 cm (38.50 inches) Width: 93.3 cm (36.7 inches) Weight: 11.8 kg (26.0 lbs) |
| Random Accessory | Drilled mounting bracket accepts standard 1/4 in x 20 threaded ETS-Lindgren or other tripod mounts Individually calibrated at 1 m according to SAE ARP 958. Actual factors and calibration compliance certificates provided brochure |
Detailed technical data charts
Antenna Coefficients and Gain for the ETS 3106B

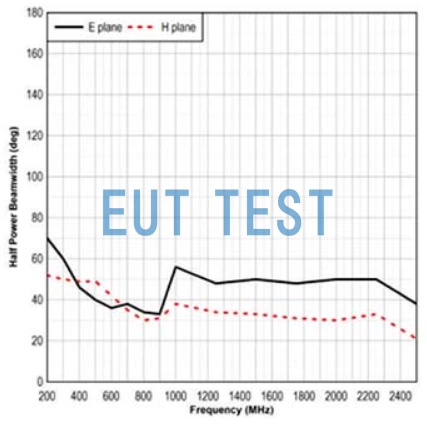

Half-wave bandwidth of the 3106B antenna from ETS-LINDGREN

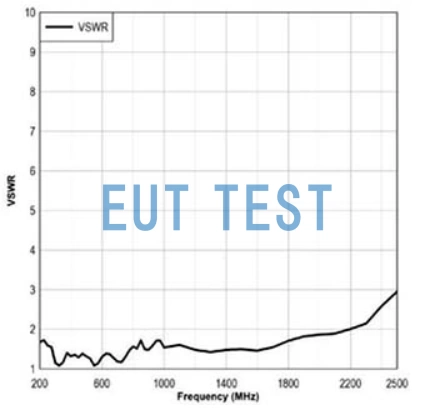

3106B Antenna VSWR
E-field and H-field orientation diagrams for the 3106B antenna can be obtained by contacting EUTTEST.
