Antenna Profile:
The ETS 3104C Biconical Antenna is a biconical antenna manufactured by ETS-LINDGREN in the United States and authorized to be sold by EUTTEST as a distributor, available in the frequency range of 20MHz-200MHz. The ETS 3104C biconical antenna has a conventional coaxial wound unbalanced transformer, which is balanced to provide wide frequency range for both transmit and receive, and moderate gain for both transmission and reception. The antenna can be used for radiated immunity measurements if the input power is limited to no more than 100 W peak.
ETS-Lindgren is the only manufacturer to offer optional expansion elements. These elements are twice as long as the standard elements and allow the user to generate high magnetic fields at low frequencies with 25% less power than normally required.
ETS 3104C Antenna Technical Data:
| Antenna Model | ETS 3104C 3104C |
| factory owners | ETS-lindgren |
| agent | EUTTEST |
| Frequency range | 20MHz-200MHz |
| connector | N f |
| impedance | 50Ω |
| Maximum continuous power | 50W |
| standing wave ratio (physics) | 2.8:1 |
| peak power | 100W |
| Mode type | directional |
| polarize | biometrics |
| size | Depth 81.3mm; Width 143.5mm |
| weight | 2.7kg |
| Standard Accessories | Antenna with balun and antenna oscillator Separate mounting adapter to accommodate ETS-Lindgren or other tripod mounts with standard 1/4 in 20 threads Each SAE ARP 958 is individually calibrated to 1 m and each ANSI C63.5 is individually calibrated to 10 m. Actual antenna factors and signed calibration compliance certificates |
Detailed charts of technical parameters:

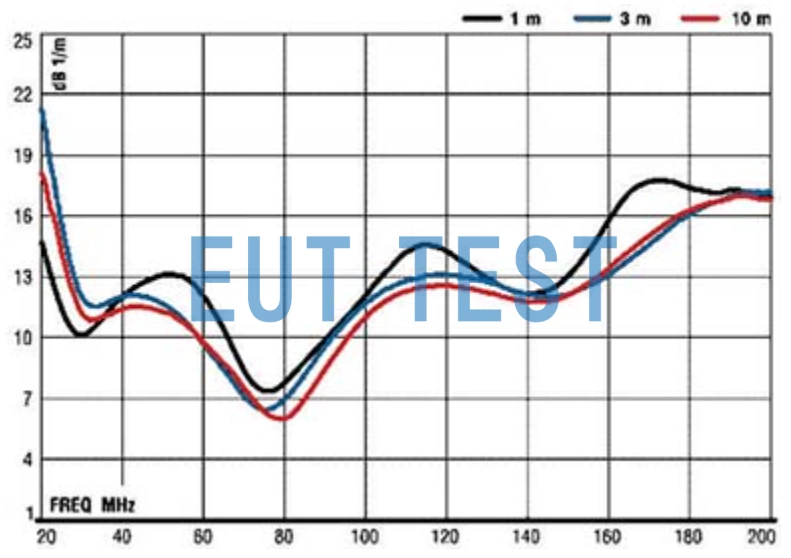

3104C Antenna Factor
3104C Antenna Input Forward Power vs. Field Strength - 1 meter test position

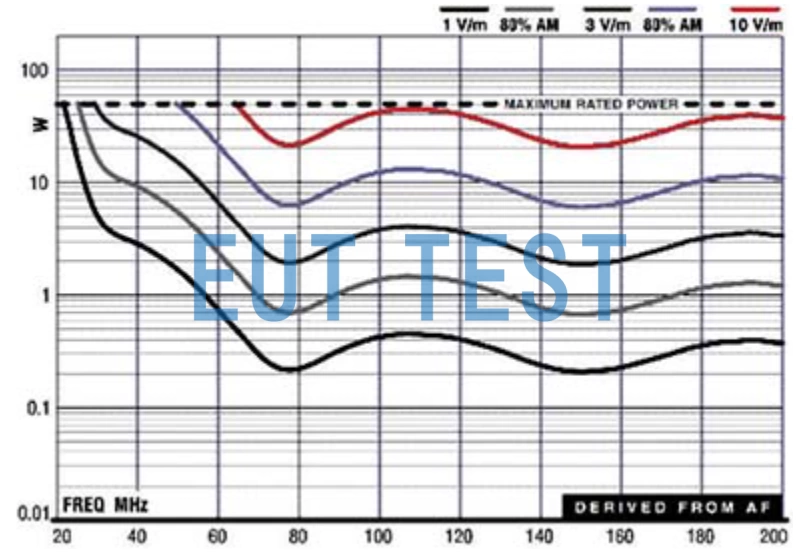

3104C Antenna Input Forward Power vs. Field Strength - 3 meter test position
3104C Antenna Gain

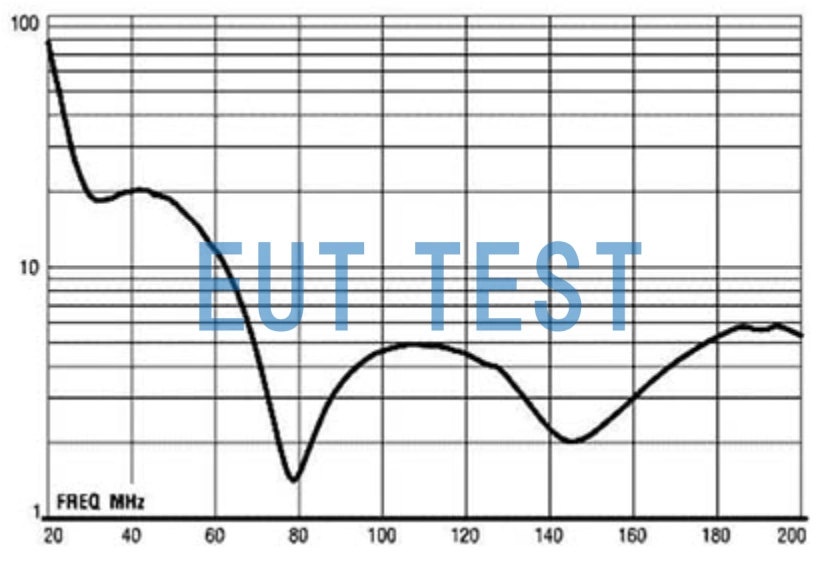

3104C Antenna VSWR
