What is the ESD3000?
ESD3000 is a handheld electrostatic discharge generator produced by Swiss EMC PARTNER, it produces air and contact discharge up to ± 30kV electrostatic gun, ESD3000 is fully compliant with all standards of electrostatic discharge immunity tester, the purchase of different discharge module, can be telecom, automotive, aerospace, components, military and other types of products standard ESD electrostatic discharge immunity test.
ESD3000 Product Features:
The maximum discharge voltage can be up to 30kV for both air and contact discharges.
Built-in storage function for 9 groups of settings, and another built-in IEC standard test level for quick one-touch selection.
Compact design and lightweight, only 870 grams including battery.
When set to discharge at the maximum test voltage, the battery can operate continuously for about 8 hours.
Powered by ordinary #5 batteries, there is no need to purchase from the original manufacturer when the batteries fail.
Easy to operate, use the "+" and "-" buttons to change the set parameters.
Remote control and software updates via standard interface

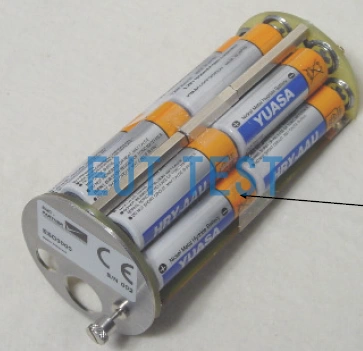

Replaceable Battery Pack for ESD3000
Technical data of the main unit of the ESD3000 electrostatic gun:

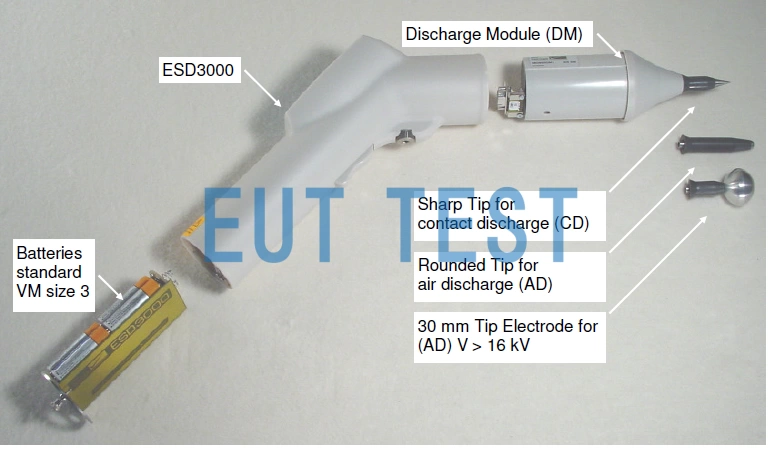

ESD3000 Case Diagram
| Discharge rise time:Depends on the type of module selected Air discharge can be supported:0.2~30kV Contact discharge can be supported:0.08~30kV Voltage increment:100V each time Contact discharge interval adjustment:0.05~30s discharging charge:: 1-29999 Polarity:Positive, negative, alternating Holding time:5s Programmable slope setting:Voltage, Polarity Discharge Trigger:Manual, automatic, remote control The power supply is powered:10 UM-3/AA batteries | Accessory Name: Accessory Number Power charger: 1 Grounding cable wire (2 m long): 1 Air discharge head: 1 Contact Discharge Head: 1 Rechargeable batteries: 10 Carrying case: 1 Operation Manual: 1 (DM module is optional) |
List of optional module models for the ESD3000:
The ESD3000 is only the test host and requires the following optional modules.
If you have questions about product selection, contact EUTTEST for advice.
<<<<提醒：左右滑动表格>>>>| Module Model | Meet the standard | Parameters of Resistor Kit | Voltage range (contact discharge) | Voltage range (air discharge) |
| ESD3000DM1 | IEC 61000-4-2, ITU-T K20 | 150pF / 330Ω | +/- 0.2kV ~ 10kV | +/- 0.2kV ~ 16kV |
| ESD3000DM2 | iso tr10605, b21 7110 | 330pF / 2000Ω | +/- 0.2kV ~ 10kV | +/- 0.2kV ~ 16kV |
| ESD3000DM4 | mil-std-883, gr78-core | 100pF / 1500Ω | +/- 0.2kV ~ 10kV | +/- 0.2kV ~ 16kV |
| ESD3000DM5 | RTCA/DO-160 | 150pF / 330Ω | not have | +/-1kV ~ 30kV |
| ESD3000DM6 | IEC 61340-3-1, JEDEC 22- A114 MIL-STD-750D | 100pF / 1500Ω | +/- 0.2kV ~ 8kV | not have |
| ESD3000DM7 | iec 61340-3-2, jedec 22-a115 | 200pF / 0Ω | +/- 0.1kV ~ 2kV | not have |
| ESD3000DM8*1 | IEC 60571, EN 50155 | Rise time < 0.05μs Duration 0.1μs | +/- 0.2kV ~ 10kV | +/- 0.2kV ~ 16kV |
| ESD3000DM16A-C63H | ANSI C63.16 | 330pF / 150Ω | not have | +/- 0.2kV ~ 16kV |
| ESD3000DM16C-C63 | ANSI C63.13 | 330pF / 150Ω | +/- 0.2kV ~ 8kV | not have |
| ESD3000DM32A-UL991 | UL991 | 100pF / 1500Ω | not have | 30kV |
| ESD3000RM32 | IEC 61000-4-2 | 0.7ns- 1ns < 400ps | +/- 1kV ~ 30kV | +/- 1kV ~ 30k |
| ESD3000DN1 | IEC 61000-4-2, RTCA/DO-160 b21 7110, gmw 3100 | 150pF / 330Ω | +/- 1kV ~ 30kV | +/- 1kV ~ 30kV |
| ESD3000DN2 | ISO TR10605, SAEJSSI-IS ford ab/ac, gmw 3097 | 330pF / 2000Ω | +/- 1kV ~ 30kV | +/- 1kV ~ 30kV |
| ESD3000DN3 | ISO TR10605, SAEJSSI-IS ford ab/ac, gmw 3097 | 150pF / 2000Ω | +/- 1kV ~ 30kV | +/- 1kV ~ 30kV |
| ESD3000DN3 | ISO TR10605, SAEJSSI-IS ford ab/ac, gmw 3097 | 150pF / 2000Ω | +/- 1kV ~ 30kV | +/- 1kV ~ 30kV |
| ESD3000DN4 | STANAG 4239 | 500pF / 5000Ω | +/- 1kV ~ 30kV | +/- 1kV ~ 30kV |
| ESD3000DN5 | MIL-STD-331C, MIL-DTL-23659D STANAG 4239 | 500pF / 500Ω | +/- 2kV ~ 30kV | +/- 2kV ~ 30kV |
| ESD3000DN6 | ISO TR10605 | 330pF / 330Ω | +/- 2kV ~ 30kV | +/- 2kV ~ 30kV |
| ESD3000DN32-CAR1 | JASO D 001-94 | 150pF / 500Ω | +/- 2kV ~ 30kV | +/- 2kV ~ 30kV |
| ESD3000DN32-CAR5*2 | Renault 32-10-001/D | 330pF / 0Ω | +/- 2kV ~ 30kV | +/- 2kV ~ 30kV |
| ESD3000DN32-IND1 | IEC 801-2 | 150pF / 150Ω | +/- 2kV ~ 30kV | +/- 2kV ~ 30kV |
| ESD3000DN32-MIL2 | MIL-STD-1576 | 400pF / 150Ω | +/- 2kV ~ 30kV | +/- 2kV ~ 30kV |
| ESD3000DN32-MIL3 | MIL-STD-1576 | 500pF / 0Ω | +/- 2kV ~ 30kV | +/- 2kV ~ 30kV |
ESD3000 optional test accessories:
In addition to the modules in the table above, the following standardized test accessories in accordance with IEC 61000-4-2 are also available.
ESD-TARGET2:2Ω aiming head with SMA connection end, upper limit > 4GHz, 20dB attenuator and 1m coaxial connection cable for ESD calibration and comparison according to IEC 61000-4-2.
ESD-VERI-V:20GΩ attenuator for high voltage testing of ESD3000 up to 25kV with attenuation ratio determined by 1MΩ input impedance of the oscilloscope for ESD voltage verification.
ESD-VCP50:Vertical coupling board with contact discharge lance head for ESD indirect discharge, 2m long wire with 2 x 470kΩ resistors.
ESD-TARGET2-DN:2Ω aiming head with SMA connector, upper limit > 4 GHz, aiming head, attenuator and leads for calibration up to 30 kV, for ESD calibration and comparison.
ESD-TARGET2-50:50 Ω sighting head with SMA connector, attenuator and cable calibration according to IEC 61340-3-1/-2.
ESD-TARGET2-500:500Ω aiming head with SMA connector, attenuator and cable calibrated to IEC 61340-3-1/-2.
ESD3000 SAFETY-S:ESD3000 safety switch, used in combination with ESD3000DM and ESD3000DN.
ESD3000DM-EXT:This module isolates the control and discharge modules and is suitable for DM modules and RM+DN modules.
ESD3000 CNH12:Used for proximity magnetic field sensitivity testing.
ESD-STAND Ed2:Non-metallic bracket for ESD2000/ESD3000 in accordance with standard IEC 61000-4-2 Ed.2, adjustable from 0.4m to 1.75m.
TC-MIG24 ED:Test cabinets for explosive devices, e.g. airbags, munitions detonators...etc.
ESD3000-OTPOLINK:Fiber optic lead for ESD3000 remote control.
USB-RS232 adapter:The TEMA software on the PC connects to the instrument via the USB port and the USB-RS232 adapter.
TEMA software:Installed on a computer, it controls the test equipment, generates reports and produces WORD or EXCEL format.
