DPA 500N1.1 EMTEST 26A Harmonic Flicker Test Analyzer

Model: DPA 500N1.1
Brand: EMTEST

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Product Description:

The DPA 500N1.1 is a 16A harmonic and scintillation test analyzer manufactured by EMTEST Switzerland and distributed by EUTTEST Shenzhen. The DPA 500N1.1 is a harmonic and scintillation analyzer fully compliant with the latest IEC/EN 61000-3-2, IEC/EN 61000-3-3 and JIS C 61000-3-2 requirements. It follows the design specifications of IEC/EN 61000-4-7 (for Class I instruments) and IEC/EN 61000-4-15. It is based on a real-time kernel with its own hard disk and records measurements continuously without any gaps or overlaps. The rectangular measurement window is synchronized to the supply frequency (50 Hz or 60 Hz) for 10 or 12 cycles per set by means of a digital phase-locked loop (PLL). The wide-range current input avoids loss of measurement data due to range switching when using different shunt resistors.

DPA500N1.1 Product Features:

  • Real-time data acquisition
  • Internal hard disk for data storage
  • 16-bit A/D Converter
  • Wide range current (26 A) and voltage inputs
  • Includes 0 - 500 mA current measurement range
  • Built-in stacked flicker impedance up to 26 Arms
  • Advanced analytics and reporting capabilities
  • USB interface for control and data transfer

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Product modelDPA 500N1.1
Product nameHarmonic Analyzer and Scintillation Analyzer
brandingAMETEK-EMTEST
agentEUTTEST
usable phasesingle phase electric power plant
voltage1 channel

10 - 530 Vrms (4 kV peak), 16-bit, 15 - 3000 Hz

Accuracy: ± 0.04 % range ± 0.30 % reading

amps2 outputs (euttest selectable via BNC cable)

Current measurement CM: 0 - 26 amps continuous

Very Low Current Measurement VLCM: 0 - 500 mA

Accuracy: ± 0.1 % of range ± 0.70 % of reading ± 0.08 % (frequency / 1000)

Harmonic Analyzer ConformityConforms to IEC 61000-4-7 Ed. 1

pertain IEC 61000-3-2 Ed 2.1,

IEC 61000-3-12 (with external current transformer),

JIS 61000-3-2 and related standards version 2.1

Functions of Harmonic Analyzer1st harmonic to 50th harmonic, rectangular measurement window (8, 10, 12, or 16 cycles), 16-bit ADC, anti-alias filter (> 90 dB), FFT algorithm, smoothing filter (1x 1.5 sec digital low-pass filter, on/off selectable), grouping (on/off), PLL synchronization
Scintillation Analyzer Conforms to standardsIEC 61000-3-3 and related standards according to IEC 61000-4-15 (120 / 230 V, 50 / 60 Hz) Accuracy: better than 5% (according to IEC 61000-4-15) Observation time: Pst min. 1 minute, optional
Scintillation Analyzer Measurable Parameterspst, plt, vrms, dc, dt, dmax, tmax, p50%s, euttest, p10%s, p3%s, p1%s, p0.1%.
impedanceBuilt-in Zref, IEC 60725 compliant

Line 0.24 Ω + j0.15 Ω, Neutral 0.16 Ω + j0.10 Ω

Optional AC Power ModelsACS 500N3 - 3 kVA single phase AC voltage source;

ACS 500N6 - 6 kVA single phase AC voltage source;

NetWave 3.1 - 3 kVA single phase AC/DC voltage source;

NetWave 7 / 7.3 - 7 kVA single phase AC/DC voltage source;

test softwareCompliance Test Studio 23 (CTS 23)
Other Recommended ProductsIf you want to test the EUT for three-phase power:

Please purchase EUTTEST's products.DPA 503N & AIF 503N

Harmonic scintillation analyzer metrology equipment HFG01KIT01

<<<<提醒:左右滑动表格>>>>

Test software Compliance Test Studio 23 (CTS 23):

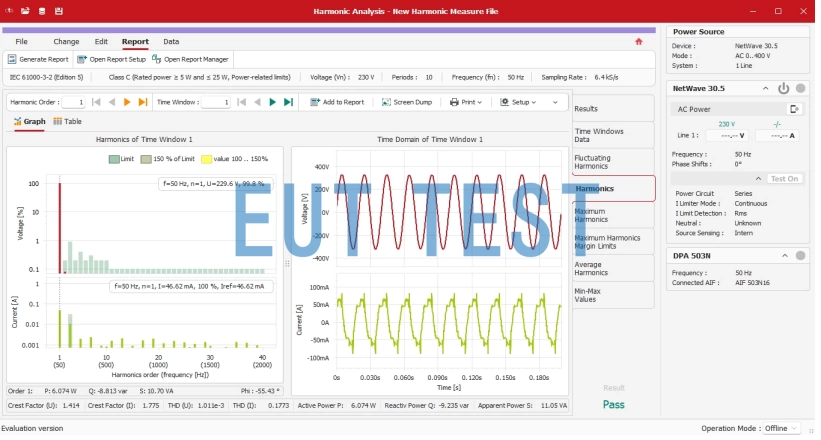

DPA 500N1.1 Test Software Compliance Test Studio 23 (CTS 23)

DPA 500N1.1 Test Software Compliance Test Studio 23 (CTS 23)

The EMTEST Compliance Test Studio 23 (CTS 23) is the software tool required to operate a harmonic and scintillation analysis system. It has all the functions for controlling DPA 503N and AIF 503N, uploading recorded measurement data, and classifying and analyzing them. It includes analyses according to the latest standards, as well as procedures that follow the requirements of previous standards. Simple fault/passage functions enable quick analysis, while detailed data can be used for extended analysis and EUT evaluation.The CTS 23 has a powerful documentation function with direct export to Word, PDF and other file formats.

EMTEST CTS 23 Software Testing Functions:

<<<<提醒:左右滑动表格>>>>
software functionalityConformity Standard No.
Harmonic test functionIEC 61000-3-2 Revisions 3.2, 4, 5, 5.1 and 5.2

IEC 61000-3-12 Revisions 1, 2 and 2.1

JIS C 61000-3-2 2005 and 2019 editions

EN 12015 2014

IEC 61000-3-16 1st Edition

ECE R10 5th and 6th editions

Ecodesign LED (CELEX 2019/2020)

Various manufacturer standards

Flicker test functionIEC 61000-3-3 Revisions 1.2, 2, 3 and 3.2

IEC 61000-3-11 1st and 2nd editions

DIN EN 61000-3-3 euttest

ECE R10 5th and 6th editions

Various manufacturer standards

specificitiesStandards library with pre-programmed settings, gapless logging for post-processing analysis and changing standards/classifications, PASS/FAIL evaluation, test report generator (customizable), advanced analysis with access to detailed test data
<<<<提醒:左右滑动表格>>>>

Shenzhen EUTTEST Technology Co., Ltd. is the designated sales unit of EMTEST, agent sales of Swiss EMTEST all serial products, consulting EMTEST product offerings, please contact EUTTEST sales staff.

DPA500N1.1 Harmonic Test Evaluation Process:

  • Check the test data of each test window and use the mouse to switch the test data of any point.
  • Forward and reverse display of the test process
  • Display of harmonic currents and voltages at each point in the time and frequency domains
  • Print a table of harmonic currents and voltages at each point
  • Prints graphs of harmonic currents and voltages in the time and frequency domains for each point.
  • On the time axis, the magnitude of each harmonic component is displayed
  • Three-phase harmonic analysis, test data of all phases are saved in the same file and can be switched to display at will.
  • Checking long-cycle test data (150s per test window)
  • Possibility to change the classification of the device under test after the test
  • AC source can output sufficient inrush current
