Product Description:

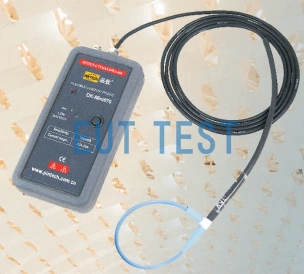

DK-70000 Flexible Current Probe is a product distributed and sold by EUTTEST Shenzhen, designed for current testing up to 70,000 A. The size of the probe coil can be customized to clamp larger cables. Before connecting the Flexible Current Probe to the circuit to be tested, please connect the output of the Flexible Current Probe to the measuring instrument first. Disconnect the Flex Current Probe input and ground from the circuit before disconnecting the Flex Current Probe from the measuring instrument. To avoid fire or personal injury, observe all data and markings on the product. Before connecting the product, please read the manual for information on further measurements.
Technical parameters：
<<<<提醒：左右滑动表格>>>> | Product model | DK-70000 |
| agent | EUTTEST |
| Transmission coefficient-variation ratio | 0.1 mV/A |
| Maximum test current | 70000 A |
| Minimum test current | 700 A |
| output voltage | 7 V |
| output noise | 5 mV |
| 3dB bandwidth | 50Hz-20/30 MHz |
| accurate | 1%+2 mV |
| pressure resistance | 3 kV |
| Maximum operating temperature range | -20°C-100°C |
| Recommended operating temperature range | 0℃-50℃ |
| electric power source | battery powered |
| Operating humidity | 20%-75% |
| weight | 400 grams |
| size | 170*86*30 mm |
| Optional Test Coil Length | 300mm - 1000mm |
| Optional test cable length | 1-4 meters available |
Standard Accessories
<<<<提醒：左右滑动表格>>>> | Name of annex | quantities |
| Flexible Current Probe DK-70000 | 1 unit |
| BP-250 BNC Coaxial Cable | 1 article |
| Flexible Adapter | 1 |
| Flexible USB Adapter Cable | 1 article |
| batteries | 4 |
| Operating Instructions | 1 copy |
| Certificate of Conformity | 1 copy |
Other models available:
If the test current and other parameters of this probe do not meet your needs, you can also compare and purchase the following products:
