Product Description:

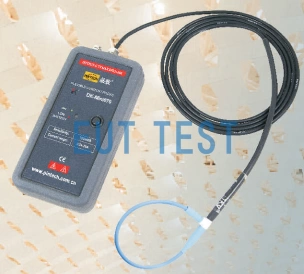

The DK-2000, distributed by EUTTEST Shenzhen, can test up to 2000A of industrial frequency current at 50Hz, with a minimum of 35A, and can be used from 50Hz to 150kHz. The high linearity of the flexible current probe makes calibration very easy. Common reference signals can be used for calibration in system applications and are always linear over the calibrated range, making the measurement results very accurate.
Technical parameters:
<<<<提醒:左右滑动表格>>>>Product model | DK-2000 |
agent | EUTTEST |
Transmission coefficient-variation ratio | 2 mV/A |
Maximum test current | 2000 A |
Minimum test current | 35 A |
output voltage | 4 V |
output noise | 5 mV |
3dB bandwidth | 50Hz-150kHz |
accurate | 2% |
pressure resistance | 3 kV |
Maximum operating temperature range | -20°C-100°C |
Recommended operating temperature range | 0℃-50℃ |
electric power source | battery powered |
Operating humidity | 20%-75% |
weight | 400 grams |
size | 170*86*30 mm |
Optional Test Coil Length | 300 mm |
Optional test cable length | 2.5 meters |
Standard Accessories
<<<<提醒:左右滑动表格>>>>Name of annex | quantities |
Flexible Current Probe DK-2000 | 1 unit |
BP-250 BNC Coaxial Cable | 1 article |
Flexible Adapter | 1 |
Flexible USB Adapter Cable | 1 article |
batteries | 4 |
Operating Instructions | 1 copy |
Certificate of Conformity | 1 copy |
Attention:
If two or more probes are used at the same time, the probes should not touch each other (be careful to separate the probes from each other) or the accuracy of the test will be affected. Before use, it is necessary to ensure that all the equipment is disconnected from the power supply, to ensure that the grounding is good. Operating temperature and humidity: 0℃-50℃ / 20-75%RH.
Caution. Do not operate the Flexible Current Probe clamped to circuits above 3000VAC (as shown in Figure I). Personal injury or damage to the current probe may occur.
Other models available:
If the test current and other parameters of this probe do not meet your needs, you can also compare and purchase the following products:
<<<<提醒:左右滑动表格>>>>Flexible Power Probe Models | Maximum test current (A) | Minimum test current ( A) |
DK-0700 | 700 | 7 |
DK-1400 | 1400 | 14 |
DK-2000 | 2000 | 20 |
DK-3500 | 3500 | 35 |
DK-7000 | 7000 | 70 |
DK-14000 | 14000 | 140 |
DK-35000 | 35000 | 350 |
DK-70000 | 70000 | 700 |
DK-140000 | 140000 | 1400 |
DK-350000 | 350000 | 3500 |
