CVP 9222C Schwarzbeck Capacitive Voltage Probe

Model: CVP 9222C
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

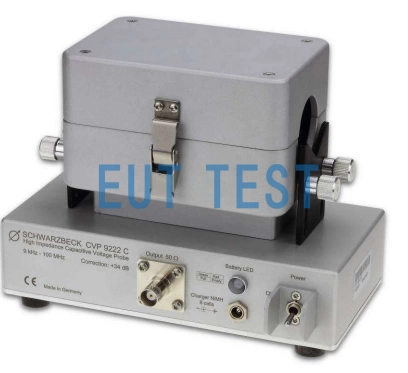

The CVP 9222C is a high impedance capacitive voltage probe manufactured by Schwarzbeck (Germany) and authorized for sale by EUTTEST (Shenzhen) to test asymmetrical disturbing voltages on the DUT cable without interrupting the DUT power supply.

The probe is equipped with a highly efficient metal shield to suppress external interference and is powered by a high capacity battery with a built-in battery capacity for over 40 hours of continuous operation. The probe's built-in transimpedance amplifier has extremely low noise characteristics and is capable of handling CISPR 16 standard pulses without distortion.

This probe can be used for the CVP conducted emission test method described in the CISPR32 standard, as shown below: Contact EUTTEST for more information about this probe's product pricing, technical specifications, voltage divider calibration, and its detailed CISPR32 standard test description.

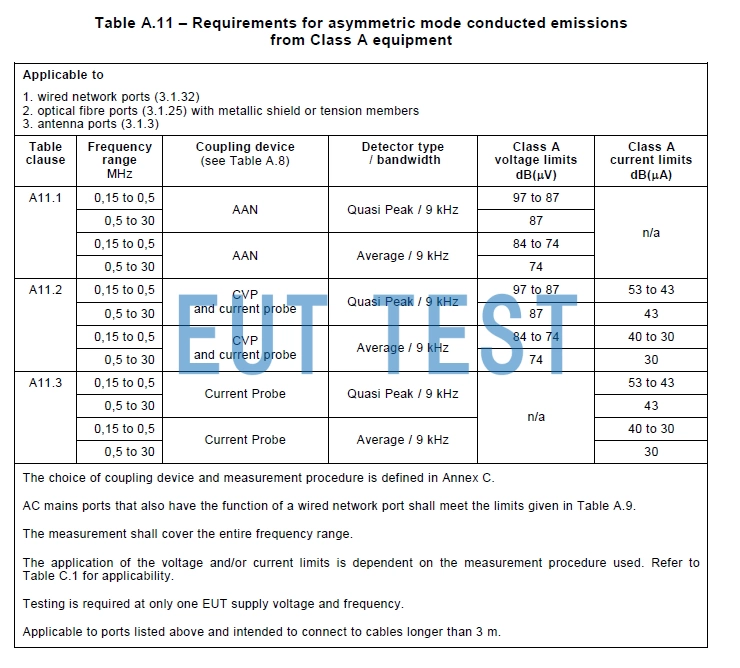

CISPR32 Test Requirements for CVP Capacitive Voltage Probes

CISPR32 Test Requirements for CVP Capacitive Voltage Probes

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberCVP 9222C
manufacturerSchwarzbeck Germany
Authorized AgentsShenzhen EUTTEST
Frequency range9kHz-100MHz
insertion loss34dB (8mm)
frequency flatness<±0.5dB
Shielding against external field strengthsTypical 50dB
Maximum voltage30V
standing wave ratio (physics)VSWR<1.2
Cable Diameter32mm
Additional capacitance4pF
connectorBNC
electric power source8NiMH Battery AA
Battery life40h
size110*180*140mm
weight2kg
Recommended Option PurchaseOption ACS 110 power supply: Charger ACS 110 for CVP 9222, CVP 9222 B and CVP 9222 C.

Option CAL 9222 B Calibration Adapter: Calibration Adapter for CVP 9222, CVP 9222 B and CVP 9222 C.

Meet the standardGB∕T 6113.102-2008 Specification for radio nuisance and immunity measurement equipment and measurement methods Part 1-2: Radio nuisance and immunity measurement equipment Auxiliary equipment Conducted nuisance

GB∕T 6113.201-2008 Specification for radio nuisance and immunity measurement equipment and measurement methods Part 2-1: Radio nuisance and immunity Measurement methods Conducted nuisance measurement

CISPR32:2015+AMD1:2019 Electromagnetic compatibility of multimedia equipment - Emission requirements

<<<<提醒:左右滑动表格>>>>

Test Utilization Guide

Capacitive voltage probe designed to measure with EMI receiversAsymmetrical interference voltageThe

The typical method of application of the capacitive voltage probe is described in CISPR 22/EN 55022 C 1.3. When the cable diameter is 8 mm, this probe has a transmission coefficient of 34 dB which must be added to the reading of the EM measurement receiver. For other cable diameters, please refer to the chart below to find the appropriate transducer factor.

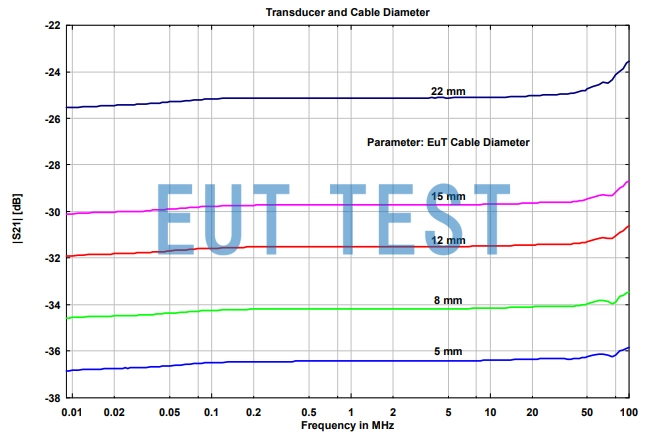

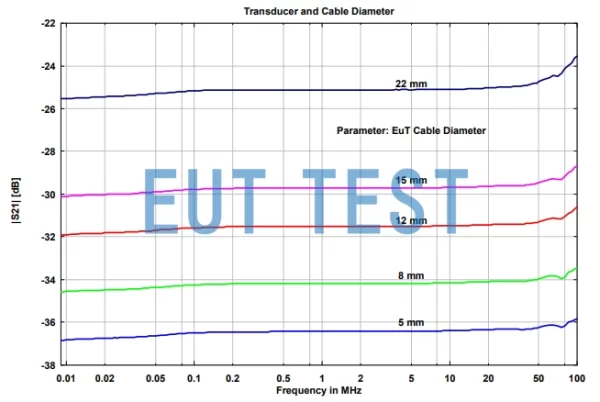

CVP 9222C Factor Chart for Common Cable Sizes

Factor charts for common cable sizes

Typically, measurements in the frequency range 150 kHz to 30 MHz are made using a quasi-peak or average detector with a bandwidth of 9 kHz. The probe comes with a clamp that can be opened to hold the cable to be measured, and it is recommended that the cable be centered inside the probe as much as possible using the M-shaped plastic pieces on each side of the probe. The probe is equipped with a screw that allows the tester to quickly and accurately adjust the cable position in seconds without additional tools, the larger the cable diameter the more important it is that the EUT cable is correctly centered.

The CVP 9222C comes with a clamp for open clamping of the cable under test.

Self-contained clamp for open clamping of the cable under test

Capacitive voltage probes need to be calibrated for voltage dividing factor, the calibration method is detailed in GB 6113.102 G.2, EUTTEST configures the following list of products for you to calibrate the voltage dividing factor of capacitive voltage probes:

<<<<提醒:左右滑动表格>>>>
  1. CVP 9222 C Capacitive Voltage Probe
  2. Option CAL 9222 B: Calibration Adapter for CVP 9222 (includes external and internal ports)
  3. 10dB Attenuator

Additional equipment required for partial pressure coefficient calibration (own equipment):

50Ω Signal Generator, Adjustable

EMI test receivers or spectrometers

<<<<提醒:左右滑动表格>>>>
