Introduction：

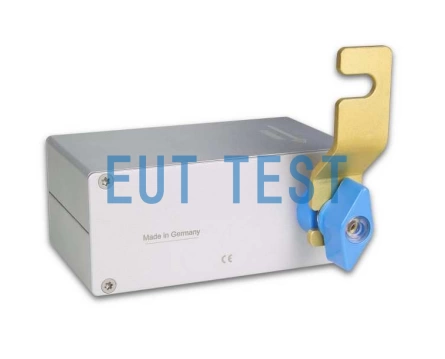

The CP 9610 is a 1MHz current sensor from Schwarzbeck, Germany, designed for DC-1MHz test measurements of low-frequency interfering currents up to 40 A. The probe is galvanically isolated from the DUT and can withstand a maximum product operating voltage of 210 VPK / VDC. The probe is galvanically isolated from the DUT and can withstand a maximum product operating voltage of 210 VPK / VDC. The internal resistance of the probe's conductive path is less than 3 mΩ, with low power loss, and the Hall sensor is temperature compensated for high accuracy over the entire temperature range.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | CP 9610 |
| Product Nouns | Current sensors or current probes |
| manufacturer | Germany schwarzbeck |
| agent | Shenzhen EUTTEST |
| Test frequency range | DC-1MHz |
| connector | BNC |
| impedance | 1MΩ |
| Current Test Range | -40A to 40A |
| output error | ±3% |
| size | 105*44*115mm |
| weight | 430g |
| electricity supply | 3.7V, 2.6Ah battery powered |
| Battery power time | 24 hours |
| Standard configuration list | Coaxial cable BNC-BNC USB connection cable Brass Bracket |
Graph of related technical parameters：

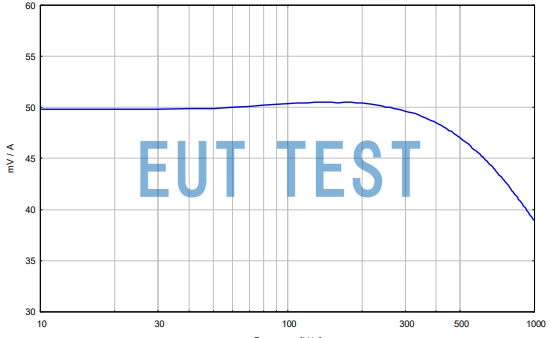

Correction factor graph for CP9610
