Introduction：

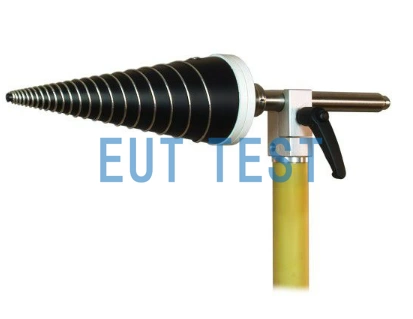

CLSA 0110-RHCP is a right-handed polarized helical antenna manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation service. The circularly polarized helical antenna comes with an aluminum reflector and N-type connector and can be used for RF receiving and transmitting applications in the frequency range of 1 GHz to 10 GHz. The antenna can also cover linearly polarized fields, eliminating the need for separate horizontal and vertical polarization arrangements. When used in linearly polarized fields, the antenna coefficient must be increased by 3 dB and the gain must be decreased by 3 dB to obtain correct readings. All data sheet specifications refer to circular polarization.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Antenna Model | CLSA 0110-RHCP |
| Antenna name | Right-handed polarized helical antenna |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUTTEST |
| Test frequency range | 1GHz-10GHz |
| Maximum available frequency range | 800Hz-11GHz |
| Antenna Gain Range | -4 to 6 dBic |
| Antenna Coefficient Range | 25 dB/m to 55 dB/m |
| impedance | 50Ω |
| standing wave ratio (physics) | 1.5-3.5 |
| Half-power beamwidth | 60°-125° |
| Maximum input power | 60-120W |
| size | 470 mm * 92 mm * 92 mm |
| weight | 0.5 kg |
| Recommended Antenna Mounts | AM 9144 Antenna tripod AA 9202 or AA9203 adapter |
Gain graph:

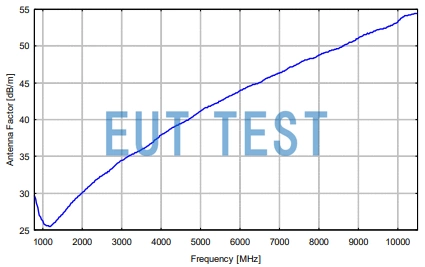

Antenna Coefficient Graph
Product Recommendation:
In addition to this helical antenna, we also offer the following two antennas with the same type of polarization (right-handed polarized RHCP or left-handed polarized LHCP):
- HLX 0810-LHCP Left-rotation polarized helical antenna , Test frequency 750MHz-1050MHz.
- HLX 0810-RHCP Right-handed polarized helical antenna , Test frequency 750MHz-1050MHz.
- CLSA 0110 - LHCP Left-rotation polarized helical antenna , test frequency 1GHz-10GHz.
