CLSA 0110-LHCP Schwarzbeck Left-Handed Polarized Helical Antenna

Model: CLSA 0110-LHCP
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

CLSA 0110-LHCP is a left-handed polarized helical antenna manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation service. The circularly polarized helical antenna comes with an aluminum reflector and N-type connector and can be used for RF receiving and transmitting applications in the frequency range of 1GHz-10GHz. The antenna can also cover linearly polarized fields, eliminating the need for separate horizontal and vertical polarization arrangements. When used in linearly polarized fields, the antenna coefficient must be increased by 3 dB and the gain must be decreased by 3 dB to obtain correct readings. All data sheet specifications refer to circular polarization.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Antenna ModelCLSA 0110-LHCP
Antenna nameLeft-rotation polarized helical antenna
manufacturerSchwarzbeck
agentShenzhen EUTTEST
Test frequency range1GHz-10GHz
Maximum available frequency range800Hz-11GHz
Antenna Gain Range-4 to 6 dBic
Antenna Coefficient Range25 dB/m to 55 dB/m
impedance50Ω
standing wave ratio (physics)1.5-3.5
Half-power beamwidth60°-125°
Maximum input power60-120W
size470 mm * 92 mm * 92 mm
weight0.5 kg
Recommended Antenna MountsAM 9144 Antenna tripod

AA 9202 or AA9203 adapter

<<<<提醒:左右滑动表格>>>>

Gain graph:

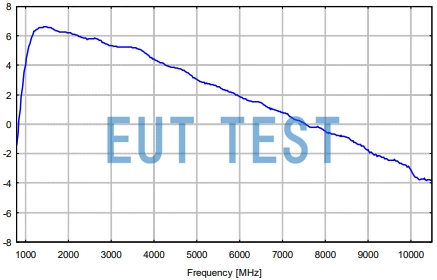

CLSA 0110-LHCP Antenna Gain Graph - Unit - dBic

Antenna Gain Graph - Unit - dBic

Product Recommendation:

In addition to this helical antenna, we also offer the following two antennas with the same type of polarization (right-handed polarized RHCP or left-handed polarized LHCP):
