CGE06 york Comb Spectrum Noise Signal Generator Test Frequency-40GHz

Model: CGE06

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

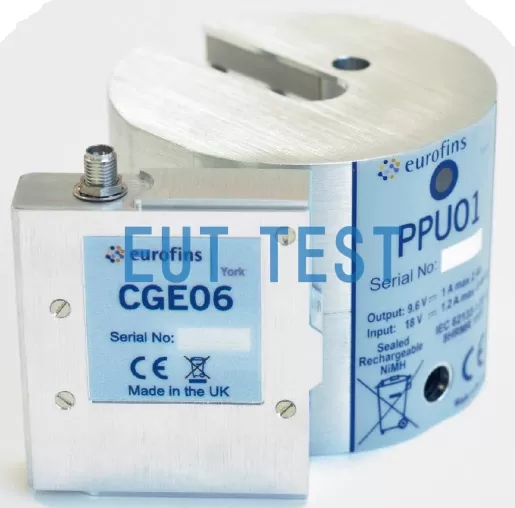

The CGE06, manufactured by yorkemc in the UK, is a 40 GHz comb noise signal generator, distributed by EUTTEST in Shenzhen, and is available in two different configurations:

  • CGE06KIT01
  • CGE06KIT02

They both contain the CGE06 Main Generator, a broadband reference comb source that produces frequencies in the 915 MHz - 40GHz range in two user-selectable step (915MHz or 1GHz) sizes. It is an ideal reference source and comparison signal source for inspections of other electronics test environments such as full-wave darkrooms or half-wave darkrooms and shielded rooms.

  • Compact enough to run from the power adapter (supplied) or independently of the PPU01 battery pack to minimize the effects of wiring when characterizing the electromagnetic environment. The generator set is housed in a metal enclosure so that it can be in direct contact with the ground plane as required for some tests. Comb signals allow simultaneous viewing of reference and noise floor signal levels, aiding dynamic range measurements.
  •  Equipped with a precision 2.92mm output connector, an antenna can be mounted to generate a radiated electric field for darkroom comparison testing.
  • If equipment is required for verification during LISN, purchase a comb signal generator up to 1 GHz:YRS04
  • We also offer a comb noise generator with a test frequency of 26 GHz:CGE05
  • and a comb noise generator with a test frequency of 18 GHz:CGE04

Technical parameters:

We offer two different configurations, you can't just buy the main generator, you need to choose KIT01 and KIT02 according to your needs.

<<<<提醒:左右滑动表格>>>>
Comb Signal Generator ModelCGE06
Combination set (optional)CGE06KIT01

CGE06KIT02

manufacturerEurofins E&E Yorkemc
agentEUTTEST
Available Noise Signal Output FrequencyConduction: 915MHz-40GHz @50Ω

Radiation: 1GHz-26GHz (using MCN02 antenna)

output level60dBμV minimum
Step Selection915MHz

1GHz

Mode SelectionThree-way switch

Comb mode 1 | OFF | Comb mode 2

agentEuttest
Output Waveformscomb-spectrum signal source
amplitude stability15°C - 30°C <+/-1 dB, 915MHz -40GHz

5°C - 40°C <+/-1.5 dB, 915MHz -40 GHz

frequency stability5°C - 40°C <+/- 30 ppm max.

<+/- 10 ppm typ

time stability<1dB per year
working hours6.5 hours
output connector50Ω 2.92mm
Meet the standardISO 17025

DEFSTAN 59-411

sizeCGE06 : 56 mm x 17.5 mm x 72 mm

+ PPU01 battery: 80 mm diameter x 72 mm

weightCGE06 : 0.1kg

+ PPU01 battery: 0.65kg

electric power source9-18V DC, 0.5A
KIT01 standard equipment listMaster Generator

PPU01 Power Supply

PSU01 Power Supply Adapter 18V

casts

factory report

KIT02 Standard equipment listMaster Generator

PPU01 Power Supply

PSU01 Power Supply Adapter 18V

casts

factory report

MCN02: 1-26 GHz transmitter antenna

40GHz transmitter antenna (optional)The standard antenna can only be used to radiate at 26 GHz.

15GHz-45GHz Transmitter Antenna BBHA 9170

<<<<提醒:左右滑动表格>>>>
Main generator direct conduction comb spectrum output power curve (915 MHz step)

Main generator direct conduction comb spectrum output power curve (915 MHz step)

Direct conduction output comb spectrum power curve (1 GHz step)

Direct conduction output comb spectrum power curve (1 GHz step)
