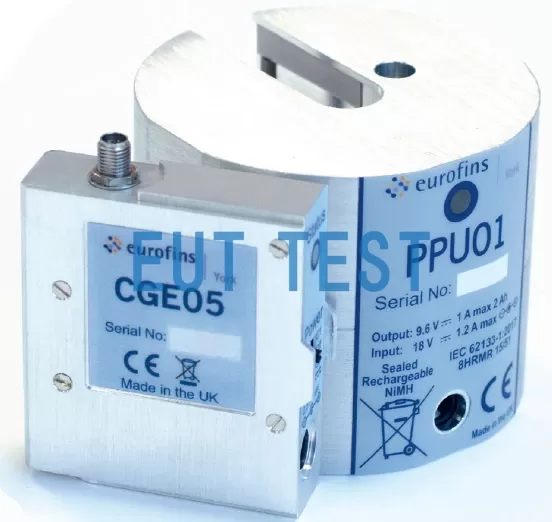

CGE05 york Comb Spectrum Noise Source Test Frequency - 26GHz

Model: CGE05

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

UK Eurofins York company produces CGE05 Comb Noise Signal Generator by Shenzhen EUTTEST to provide agent sales service, according to customer demand York put the main generator CGE05 in two different product models to form a new test suite.

  • CGE05KIT01
  • CGE05KIT02

Both kits include the Main Generator, a broadband reference comb source that produces frequencies in the 434 MHz to 26 GHz range in two user-selectable step (435 MHz and 0.5 GHz) sizes. It is an ideal reference source for inspection of full or half air chambers and other electronic field test environments.

  •  Compact enough to run from the power adapter (supplied) or independently of the PPU01 battery pack to minimize the effects of wiring when characterizing the electromagnetic environment. The generator set is housed in a metal enclosure so that it can be in direct contact with the ground plane as required for some tests. Comb signals allow simultaneous viewing of reference and noise floor signal levels, aiding dynamic range measurements.
  • Equipped with a precision SMA output connector, an antenna can be mounted to generate a radiated electric field for darkroom comparison testing.

We also offer a comb noise generator with a test frequency of 40 GHz:CGE06

and a comb noise generator with a test frequency of 18 GHz:CGE04

Technical parameters:

The current noise source contains two different configurations of test kits as detailed in the configuration list in the table below. Please note that it is not possible to purchase just the main generator, the tester will need to select either KIT01 or KIT02 depending on requirements.

<<<<提醒:左右滑动表格>>>>
Comb Signal Generator ModelCGE05
Combination set (optional)CGE05KIT01

CGE05KIT02

manufacturerEurofins E&E Yorkemc
agentEUTTEST
Available frequencyConduction: 434MHz-26GHz @50Ω

Radiation: 1GHz-26GHz (using MCN02 antenna)

output level60dBμV minimum
Step Selection434MHz

0.5GHz

Mode SelectionThree-way switch

Comb mode 1 | OFF | Comb mode 2

Output Waveformscomb-spectrum signal source
amplitude stability15°C - 30°C <+/-1 dB, 0.5 GHz - 26 GHz

5°C - 40°C <+/-1.5 dB, 0.5 GHz - 26 GHz

frequency stability5°C - 40°C <+/- 30 ppm max.

<+/- 10 ppm typ

time stability<1dB per year
working hours10 hours
output connectorSMA 50Ω
Meet the standardISO 17025

DEFSTAN 59-411

size 56 mm x 17.5 mm x 72 mm

+ PPU01 battery: 80 mm diameter x 72 mm

weight0.1kg

+ PPU01 battery: 0.65kg

KIT01 List of standard equipmentMaster Generator

PPU01 Power Supply

PSU01 Power Supply Adapter 18V

casts

factory report

KIT02  List of standard equipmentMaster Generator

PPU01 Power Supply

PSU01 Power Supply Adapter 18V

casts

factory report

MCN02: 1-26 GHz transmitter antenna

<<<<提醒:左右滑动表格>>>>

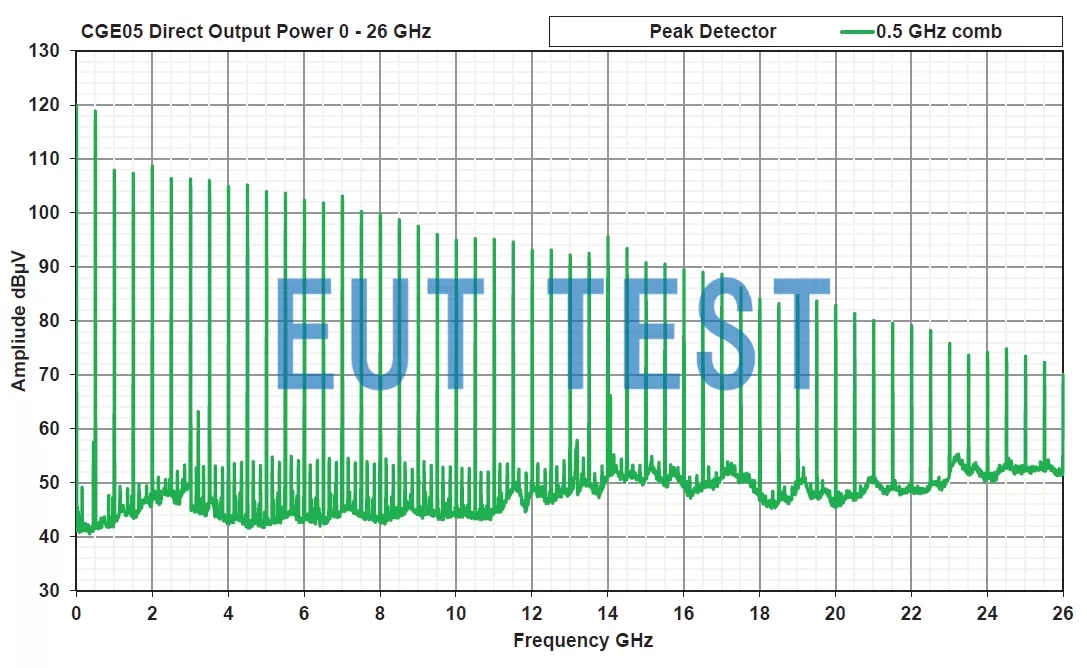

Main generator direct conduction comb spectrum output power profile (0.5 GHz step)

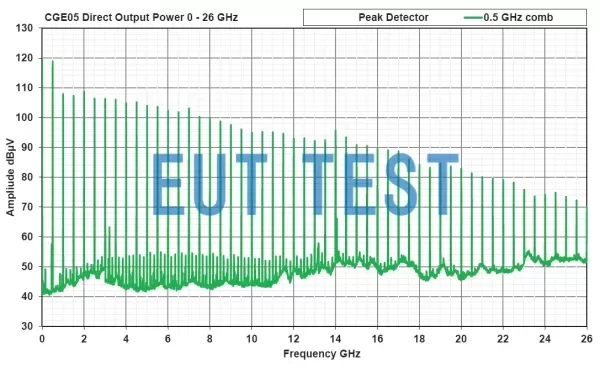

Main generator direct conduction comb spectrum output power profile (0.5 GHz step)

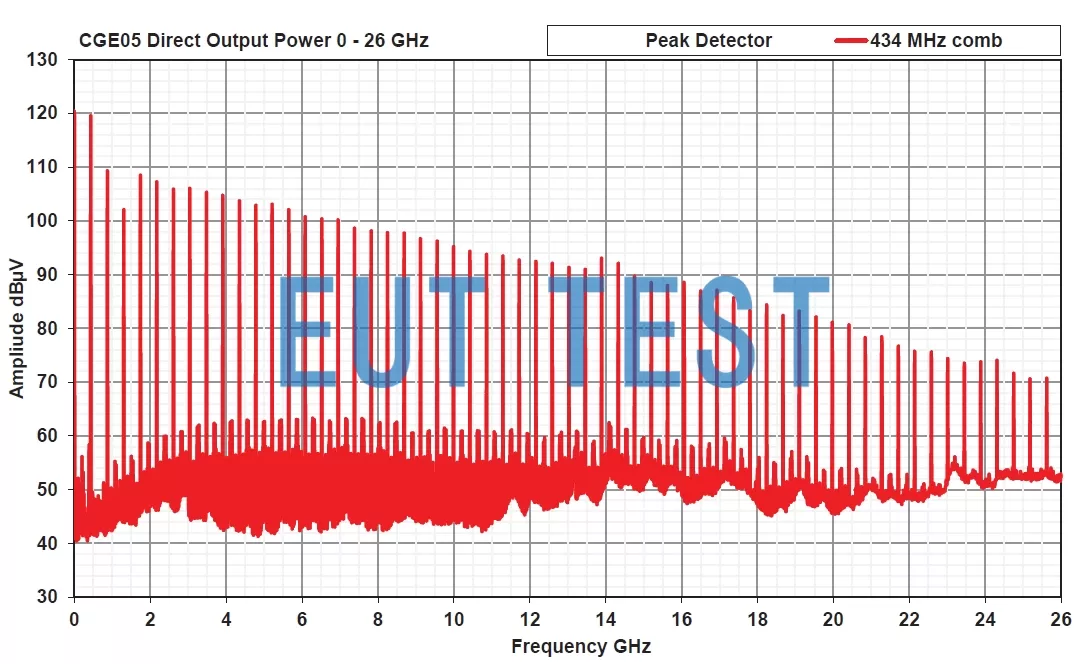

Direct conduction output comb spectrum power curve (434 MHz step)

Direct conduction output comb spectrum power curve (434 MHz step)
