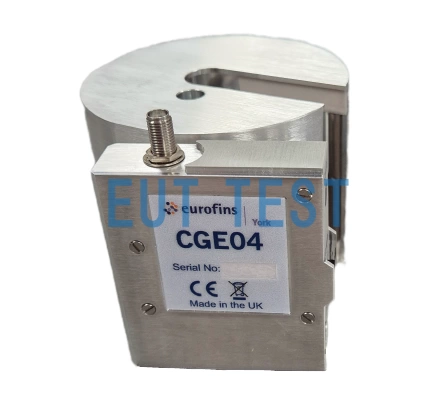

CGE04 18 GHz Reference Comb Signal Source

Model: CGE04

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Product Description:

CGE04 Sequence Comb Signal Source is a new 18GHz reference signal generator launched by Eurofins E&E UK Ltd in 2025.The sequence products include two kits, CGE04KIT01 and CGE04KIT02, which are mainly used for generating comb signals in the frequency range of 100MHz-18GHz.

The CGE04 fills the gap of the discontinued CGE01 sequence and can be used with the following two products for laboratory comparison or period verification testing from 100 MHz to 40 GHz.

If a lower test frequency is required, the optional YRS04 maybe YRS05 Sequential products.

Product Parameters:

<<<<提醒:左右滑动表格>>>>
Comb Signal Generator ModelCGE04
Combination set (optional)CGE04KIT01

CGE04KIT02

manufacturerEurofins E&E Yorkemc
agentEUTTEST
Conducted output frequency range100MHz-18GHz
Radiation output frequency range1GHz-18GHz
stepper100MHz,200MHz,300MHz,18GHz

106.25MHz,212.5MHz,17.95625MHz

Amplitude Stability15℃-30℃: <±1dB

5℃-40℃: <±1.5dB

frequency stability5°C-40°C: <±30 ppm max, <±10 ppm typical
time stability<1dB
output connectorSMA
impedance50Ω
weight0.65 kg
indicator lightStep 100MHz Mode 1

Step 106.25MHz Mode 2

Low battery / power supply error

<<<<提醒:左右滑动表格>>>>

Optional Kit Details

<<<<提醒:左右滑动表格>>>>
CGE04 Optional Kit Modelsdescriptiveitemized list
CGE04KIT01Standard CGE04 noise sourceCGE04 Comb Generator Transmitter

PPU01 Portable Power Unit

PSU01 18 VDC Power Adapter

Hard Case

Manufacturer's test certificate

CGE04KIT02Standard CGE04 noise source + transmitter antennaPPU01 Portable Power Unit

PSU01 18 VDC Power Adapter

Hard Case

Manufacturer's test certificate

MCN02-SMA 1 GHz to 18 GHz Detachable Single Cone Antenna

CAL13 - Conducted Power Output Measurement, 0 GHz to 18 GHz

<<<<提醒:左右滑动表格>>>>

Optional accessories:

  • MCN02-SMA: detachable single cone antenna (available from 1 GHz to 18 GHz when used with CGE04)
  • BP01: 5 V 2 AHr removable battery pack

CGE04 output signal spectrum graph:

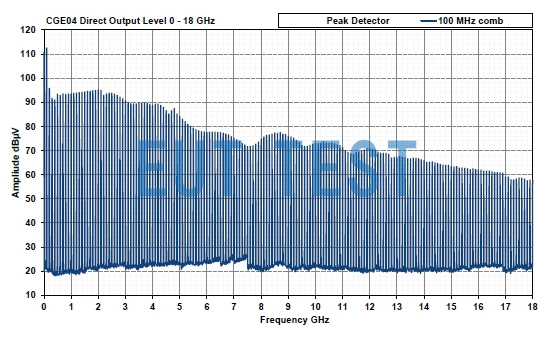

CGE04 Spectrogram of conducted output signal with 100MHz step selected

CGE04 Spectrogram of conducted output signal with 100MHz step selected

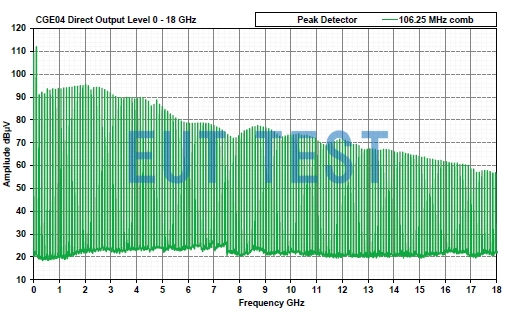

CGE04 Conducted Output Signal Spectrogram with 106.25 MHz Step Selected

CGE04 Conducted Output Signal Spectrogram with 106.25 MHz Step Selected

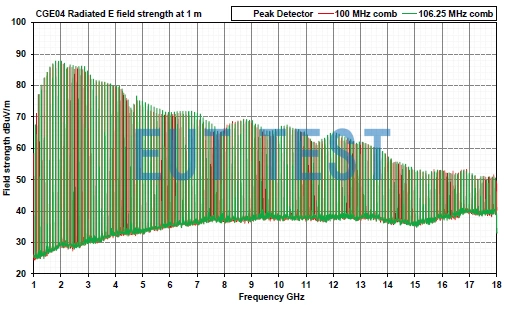

Electric field strength curve of CGE04 with MCN02-SMA output at 1 meter test position

Electric field strength curve of CGE04 with MCN02-SMA output at 1 meter test position
