Introduction：
CGE01 Comb Spectrum Signal Generator is a Comb Spectrum - Noise Signal Generator manufactured by York emc, UK and distributed by EUTTEST, containing the following sub-models:
- CGE01KIT01
- CGE01KIT02
- CGE01KIT03
- CGE01KIT04
- CGE01KIT05
- CGE01KIT06
All available models include the CGE01 main generator - and two different configurations, the CGE01C and CGE01R, for use in EMC laboratory comparisons and periodical verifications.
- The main generator - CGE01C, which can be equipped with a 50 Ω SMA output connector, is used to connect directly to the implemented test system or to an external antenna in order to generate a test field for the evaluation of radiated emission test systems.
- Alternatively, for optimal reproducibility and compactness in radiation-only applications, the main generator - CGE01R - can be equipped with an integrated antenna.
As standard, the noise source's stepping can be switched between 80 MHz and 100 MHz, so more frequency points can be measured than with a fixed frequency source. Optional special requirements provide a 50 MHz/80 MHz stepping option, allowing measurements to be made in accordance with CISPR 16 for darkroom validation above 1 GHz.
For higher test frequencies such as 26 GHz, please purchase the optionalCGE05
CGE01 Comb Spectrum Signal Generator Technical Data:
The CGE01 Noise Source is available in six different configurations, please select according to the parameter table below or contact euttest for more information.
| Available frequency | 50MHz-18GHz direct output 1GHz-18GHz radiated output |
| integrated antenna | CGE01R |
| External accessory antenna | CGE01C |
| stepper | 80MHz or 100MHz 50MHz or 80MHz (contact EUTTEST) |
| output connector | 50Ω SMA |
| temperature stability | 15 °C -35 °C 1 GHz - 16 GHz: <0.5 dB 100 MHz - 18 GHz: <2 dB, |
| time stability | <1dB /12 months |
| size | CGE01C + Battery Pack: 76 mm diameter × 64 mm (74 mm incl. connector) CGE01C + without battery pack: 76 mm diameter × 18 mm (28 mm incl. connector) CGE01R + battery pack: 76 mm diameter x 92 mm CGE01R + without battery pack: 76 mm diameter × 46 mm |
| weight | 550g |
| electric power source | 5V 2A internal battery External input 4.75 V - 7.5 V, 300 mA |
| operating time | 6.5 hours |
| indicator light | Mode1 and mode2 step size display |
| 80MHz or 100MHz step adjustable model selection | |
| CGE01KIT01 Standard Accessories | CGE01C : Comb Spectrum Generator CAL13 : Conducted Output Power Test Results 0-18GHz BP01: Built-in battery BCH04: Charger Box, manual |
| CGE01KIT02 Standard Accessories | CGE01R : Comb Spectrum Generator CAL09 : 3m darkroom output results 1GHz-18GHz BP01: Built-in battery BCH04: Charger Box, manual |
| CGE01KIT03 Standard Accessories | CGE01C : Comb Spectrum Generator CAL13 : Conducted Output Power Test Results 0-18GHz MCN02 : 1-18GHz Antenna BP01: Built-in battery BCH04: Charger Box, manual |
| 80MHz or 50MHz step adjustable model selection | |
| CGE01KIT04 Standard Accessories | CGE01C : Comb Spectrum Generator CAL13 : Conducted Output Power Test Results 0-18GHz BP01: Built-in battery BCH04: Charger Box, manual |
| CGE01KIT05 Standard Accessories | CGE01R : Comb Spectrum Generator CAL09 : 3m darkroom output results 1GHz-18GHz BP01: Built-in battery BCH04: Charger Box, manual |
| CGE01KIT06 Standard Accessories | CGE01C : Comb Spectrum Generator CAL13 : Conducted Output Power Test Results 0-18GHz MCN02 : 1-18GHz Antenna BP01: Built-in battery BCH04: Charger Box, manual |

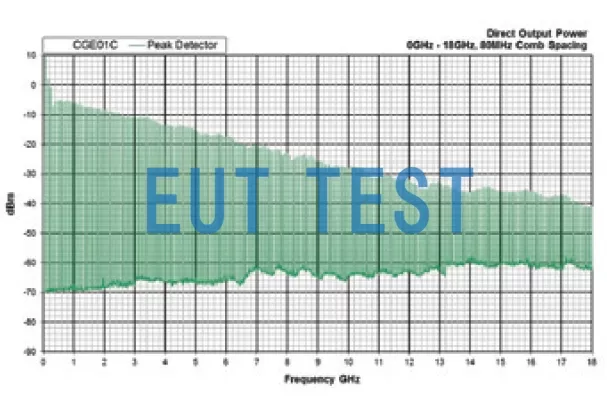

Conducted output power curve of CGE01C main generator

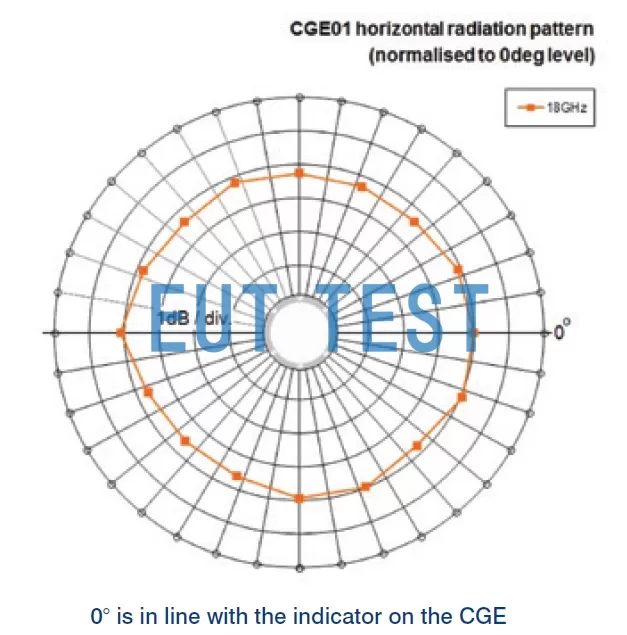

Antenna Direction Diagram of CGE01C

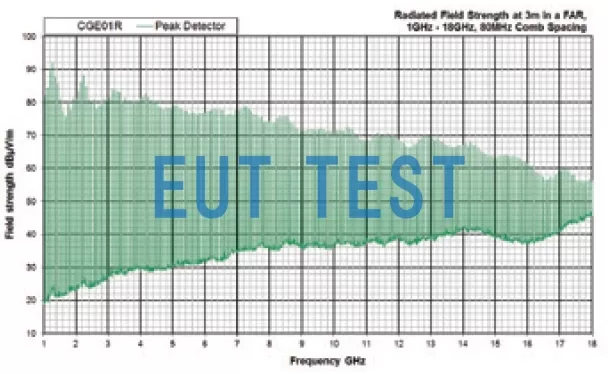

Radiated output power curve of the CGE01R main generator

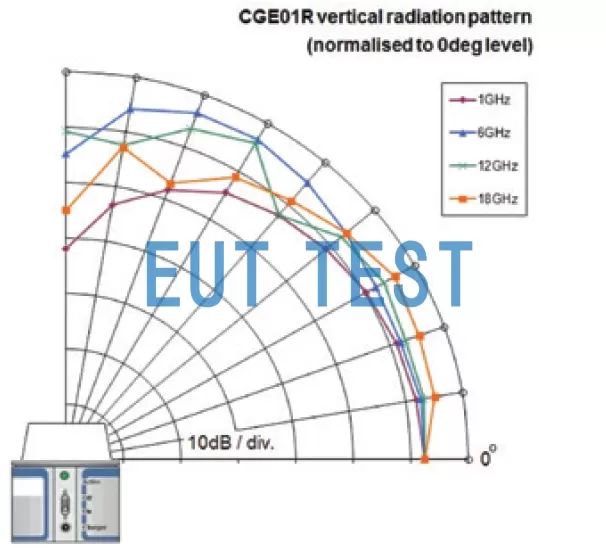

CGE01 Comb Spectrum Signal Generator - CGE01R Antenna Orientation Map
