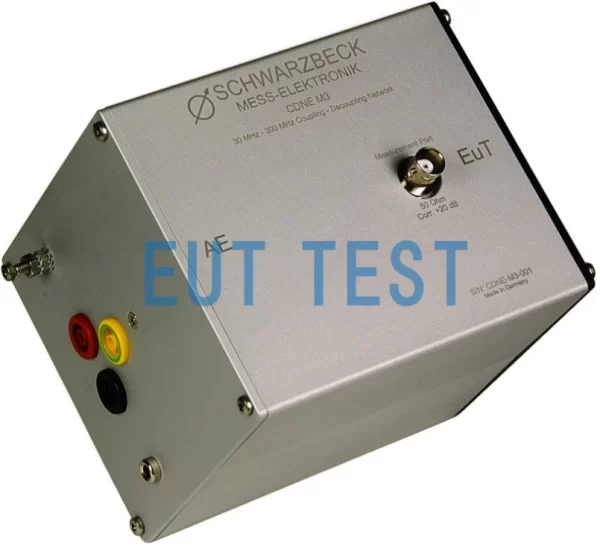

CDNE M3 Germany Schwarzbeck Coupling Decoupling Network 30MHz-300MHz

Model: CDNE M3
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

CDNE M3 Introduction:

CDNE M3 is a coupling and decoupling network produced by Schwarzbeck, Germany and authorized by EUTTEST in Shenzhen, CDNEM3 is mainly used for the latest CISPR15 lamp test standard requirements of the conducted emission test, M3 model has three power cord interface so you can connect the three EUT's power cord test use.

Difference between CDNE and CDN:

Prior to the advent of CDNE, CDN coupling/decoupling networks were generally used for measuring conducted noise and immunity tests.The structure and usage of CDNE is mentioned in the latest standard of CISPR15 from 2018.Contrary to the coupling/decoupling network (CDN) described in IEC/EN 61000-4-6, CDNE can inject very little power and is particularly suitable for measurement of Conducted emission tests for luminaires with tighter impedance tolerances, so CDN can be used as a conducted immunity test, whereas CDNE cannot be used as a conducted immunity test.

Read more about Optional Models of CDN and CDNE Concepts Difference

Types of CDNE:

Depending on the number of power cords in the EUT DUT, you can use either of the following two CDNEs for testing.

CDNE M2 Coupled decoupling network (L,N)

CDNE M3 Coupling decoupling network (L,N,GND) (products on this page)

CDNE M3 meets the criteria:

The CDNE M3 from Schwarzbeck, Germany, complies with the conducted emission method of the latest EMC test standards for luminaires.

CISPR 15-2018 or newer standards

EN 55015-2018 or newer standards

The main technical parameters of the CDNE M3:

The parameters of the CDNE M3 and M2 are basically the same except for the frequency, so you only need to choose one model according to the number of cables to be tested.In addition, CDNE M3 cannot be used for two-wire EUT testing, so please contact us to purchase both CDNE M2 and CDNE M3 together if you need all the cables.

<<<<提醒:左右滑动表格>>>>
Model numberCDNE M3
manufacturerSCHWARZBECK, Germany
Domestic agentsShenzhen EUTTEST
Frequency range30MHz-300MHz
EUT line type3-wire
EUT and AE end connectors2*4mm Safety Banana Plug
RF test port50Ω BNC
Maximum voltage from EUT line to ground400V DC,277V 50/60Hz
Maximum current16A
Common mode impedance150 Ω +10 Ω/ -20 Ω
phase characteristic0° ±25°
Maximum EUT RF Voltage140dBμV
Maximum Test Port Voltage5V
EUT Test Port Voltage Divide Factor20 dB ±1.5 dB
Decoupling attenuation EUT->AE>30dB
grounding4mm rubber tip and M4 screw fixing at AE end
size104 mm x 104 mm x 127 mm
EMC compliantCISPR 15-2018 / EN 55015-2018 , GB17743
<<<<提醒:左右滑动表格>>>>

Optional calibration accessory for the CDNE M3:

The CDNE M3 requires a calibration kit to calibrate parameters such as voltage divider, decoupling, etc. There are several different connections for the calibration configuration and a number of ancillary accessories are required in addition to those listed below. euttest can provide a full range of calibration kits for sale together with an on-site training service, contact us for more information.

  • CA CDNE M3 Part A
  • CA CDNE Part B
  • SR-100-6W

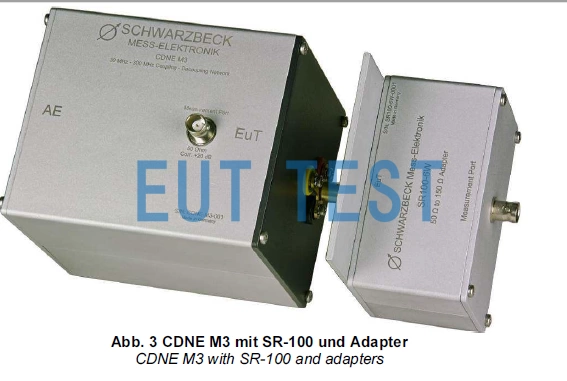

Calibration kit for CDNE M3

Calibration kit for CDNE M3

Technical data sheet of CDNE M3:

The following test charts are for use during testing.

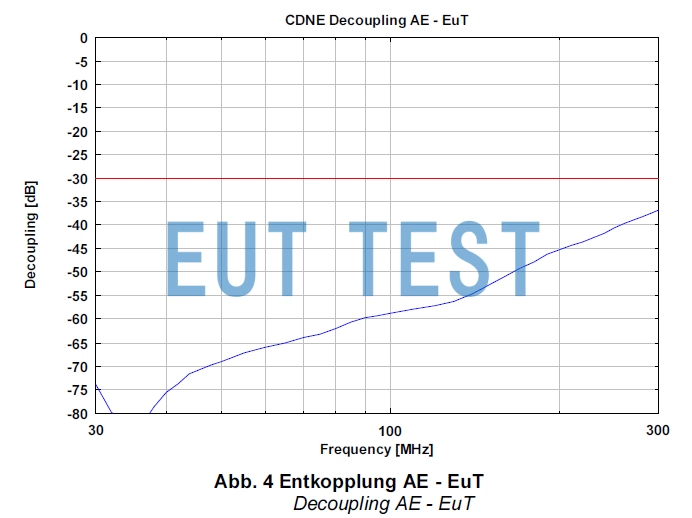

Decoupling attenuation of CDNE M3

Decoupling attenuation of CDNE M3

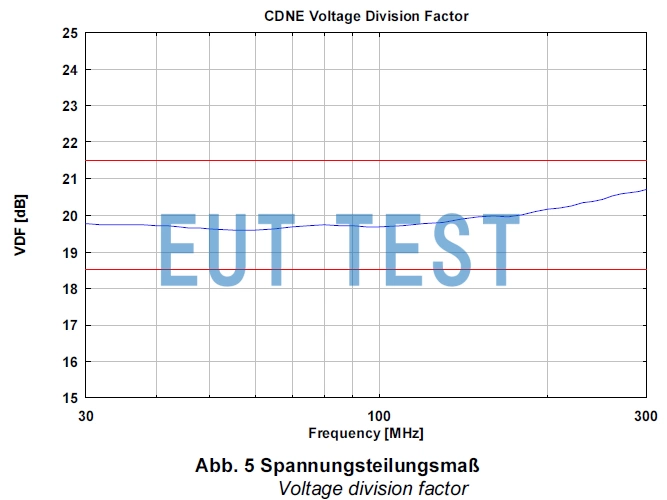

Voltage divider coefficient diagram for CDNE M3

Voltage divider coefficient diagram for CDNE M3

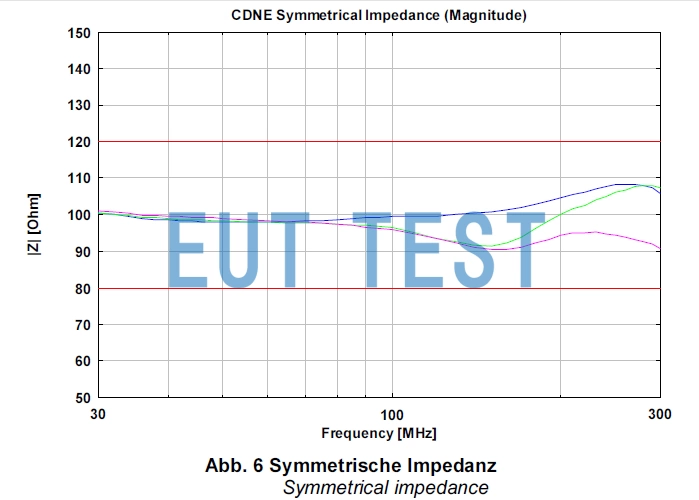

Symmetrical impedance of CDNE-M2

Symmetrical impedance of CDNE-M2
