CDN T4 RJ45 network port connector coupling decoupling network

Name: CDN T4 RJ45
Brand: Schwarzbeck
SKU: cdn-t4-rj45
Price: 2844 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

CDN T4 RJ45 network port connector coupling decoupling network

CDN T4 RJ45 Network Port Connector Coupling Decoupling Network Common Mode Impedance Curves

Model: CDN T4 RJ45

Type: CDN-T Sequentially Coupled Decoupling Network

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards:

IEC 61000-4-6

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

CDN T4 RJ45 is a coupling decoupling network device for RJ45 port connectors produced by Schwarzbeck from Germany, which is authorized by Shenzhen EUTTEST agent sales and quotation service. The device complies with the standard IEC 61000-4-6 proposed Figure D.1 requirements, can be RJ45 network port of four unshielded balanced line connector products for conducted immunity testing, the device supports a maximum of 100V AC voltage or 150V DC voltage input to the test object, the rated current is 0.5A.

If you are going to performConducted immunity test for RJ45 port connector with shield, please select CDN S8 RJ45 The

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Model number	CDN T4 RJ45
Device name	Coupling decoupling network for RJ45 network port connectors
manufacturer	Schwarzbeck
agent	EUT TEST
Test frequency range	10kHz-230MHz
Common mode impedance of CDN	At 10 kHz - 24 MHz: 150 Ω ±20 Ω At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω 80 MHz - 230 MHz: 150 Ω ±60 Ω See common mode impedance graph below for detailed values.
partial pressure coefficient	10dB
Maximum RF Voltage	30V
Maximum input power	6W ≈ 37dBm
connector	BNC
Input/Output Impedance	50Ω
Maximum Input Voltage	100V AC 150V DC
saturation current	0.5A
size	216 mm105 mm108 mm
weight	1.5 kg
EUT Port Connector	RJ45
AE Port Connector	RJ45
Recommended Calibration Options	SA RJ45 SR 100-6W

<<<<提醒：左右滑动表格>>>>

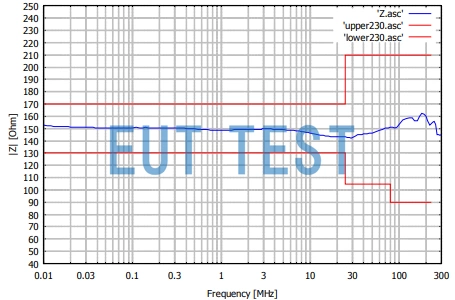

Coupling and decoupling network for mesh connectors Common mode impedance plot
