CDN S9 Coupling Decoupling Network for USB3.0 Connectors

Name: CDN S9 USB3.0
Brand: Schwarzbeck
SKU: cdn-s9-usb3-0
Price: 1919 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

CDN S9 Coupling Decoupling Network for USB3.0 Connectors

Coupling Decoupling Network for USB3.0/2.0/1.0 Connectors Common Mode Impedance Curves

Model: CDN S9 USB3.0

Type: CDN-S Sequentially Coupled Decoupled Networks

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards: /

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

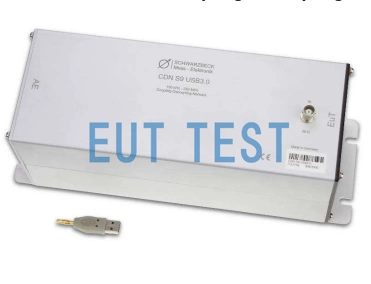

CDN S9 USB3.0 is a coupling decoupling network device for USB3.0 connectors from Schwarzbeck, Germany, which is authorized by EUTTEST Shenzhen for sales and quotation services. The device complies with the requirements of IEC 61000-4-6, Figure D.1, and can conduct conducted immunity tests on products with USB3.0 shielded cable connectors, but of course, it is also compatible with USB 2.0 and USB 1.1 types of connectors. The device supports a maximum of 100V AC or 150V DC voltage input to the DUT and a rated current of 0.25A.

If you want toConducted Immunity Testing for Type C USB Connectors Optional: CDN S24 Coupling and Decoupling Network for USB-C Connectors The

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Model number	CDN S9 USB3.0
Device name	Coupling decoupling network for USB 3.0 connectors
manufacturer	Schwarzbeck
agent	EUT TEST
Test frequency range	10kHz-230MHz
Common mode impedance of CDN	At 10 kHz - 24 MHz: 150 Ω ±20 Ω At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω 80 MHz - 230 MHz: 150 Ω ±60 Ω See common mode impedance graph below for detailed values.
partial pressure coefficient	9.5dB
Maximum RF Voltage	30V
Maximum input power	6W ≈ 37dBm
connector	BNC
Input/Output Impedance	50Ω
Maximum Input Voltage	100V AC 150V DC
saturation current	0.25A
size	216 mm105 mm108 mm
weight	1.5 kg
EUT Port Connector	USB 3.0 Connector, Type A
AE Port Connector	USB 3.0 Connector, Type B
Recommended Calibration Options	SA USB SR 100-6W

<<<<提醒：左右滑动表格>>>>

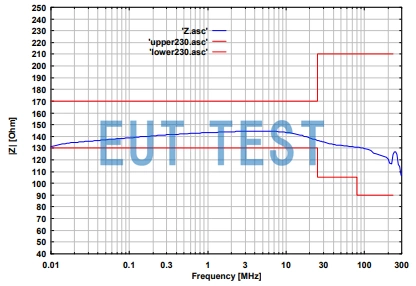

Common mode impedance graph

Other types of CDN recommendations:

Learn how to shop for a CDN?
Need CDNE?
Need more CDN & CDNE Coupling & Decoupling Networks models with test voltages and number of cables under test?

Please go to the following link to view:

Difference between CDN and CDNE Schwarzbeck Coupling Decoupling Networks Product Catalog
