CDN S24 Coupling Decoupling Network for USB-C Connectors

Name: CDN S24 USB-C
Brand: Schwarzbeck
SKU: cdn-s24-usb-c
Price: 2037 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

CDN S24 Coupling Decoupling Network for USB-C Connectors

CDN S24 USB-C Coupling and decoupling network for USB-C or Type C connectors Common mode impedance plot

Model: CDN S24 USB-C

Type: CDN-S Sequentially Coupled Decoupled Networks

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards:

IEC 61000-4-6

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

The CDN S24 USB-C is a coupling and decoupling network device for USB-C connectors from Schwarzbeck, Germany, which is authorized to be sold and quoted by EUTTEST Shenzhen. The device meets the requirements of IEC 61000-4-6, Figure D.1, and can conduct conducted immunity tests on products with USB-C or Type C connectors up to 24 pins. The device supports a maximum of 100V AC or 150V DC input to the DUT, and has a rated current of 0.25A.

This device is not compatible with USB3.0, USB 2.0, USB 1.1 types of USB connectors, if you need to test the conducted immunity of these three types of USB ports, please select the optional CDN S9 USB3.0 The

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Model number	CDN S24 USB-C
Device name	Coupling decoupling network for USB-C connectors
manufacturer	Schwarzbeck
agent	EUT TEST
Test frequency range	10kHz-230MHz
Common mode impedance of CDN	At 10 kHz - 24 MHz: 150 Ω ±20 Ω At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω 80 MHz - 230 MHz: 150 Ω ±60 Ω See common mode impedance graph below for detailed values.
partial pressure coefficient	9.5dB
Maximum RF Voltage	30V
Maximum input power	6W ≈ 37dBm
connector	BNC
Input/Output Impedance	50Ω
Maximum Input Voltage	100V AC 150V DC
saturation current	0.25A
Vbus-GND Maximum current	5A
size	216 mm105 mm108 mm
weight	1.7 kg
EUT Port Connector	USB type C Connector, Female
AE Port Connector	USB type C Connector, Female
Recommended Calibration Options	SA USB-C SR 100-6W

<<<<提醒：左右滑动表格>>>>

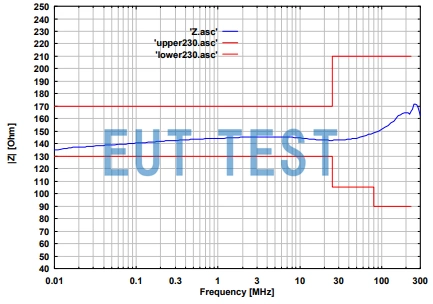

Common mode impedance graph
