Introduction：

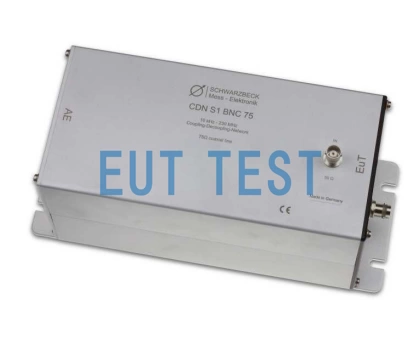

CDN S1 BNC 75 is a 75 Ohm coaxial shielded cable coupling and decoupling network device from Schwarzbeck, Germany, which can be used for conducted immunity testing of coaxial shielded cables with 75Ω impedance and BNC connectors, and is authorized to be sold and quoted by EUTTEST Shenzhen. The device meets the requirements of IEC 61000-4-6, Figure D.1, and can be used to perform conducted sensitivity tests on coaxial cables with 75Ω impedance, supporting DUT inputs of up to 100V AC or 150V DC, and rated at 0.25A, with a notch at the bottom of the device for connecting to a reference ground plane.
We also offer another CDN S1 BNC can be used for conducted immunity testing of coaxial cables with 50Ω impedance.The
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | CDN S1 BNC 75 |
| Device name | 75 Ohm Coaxial Shielded Cable Coupling Decoupling Networks |
| Coaxial cable impedance under test | 75Ω |
| Number of cables under test | 1 strip with BNC connector |
| manufacturer | Schwarzbeck |
| agent | EUT TEST |
| Test frequency range | 10kHz-230MHz |
| Common mode impedance of CDN | At 10 kHz - 24 MHz: 150 Ω ±20 Ω At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω 80 MHz - 230 MHz: 150 Ω ±60 Ω See common mode impedance graph below for detailed values. |
| partial pressure coefficient | 9.5dB |
| Maximum RF Voltage | 30V |
| Maximum input power | 6W ≈ 37dBm |
| connector | BNC |
| Input/Output Impedance | 75Ω |
| Maximum Input Voltage | 100V AC 150V DC |
| saturation current | 0.25A |
| size | 216 mm*105 mm*108 mm |
| weight | 1.6 kg |
| Recommended Calibration Options | SA BNC SR 100-6W |

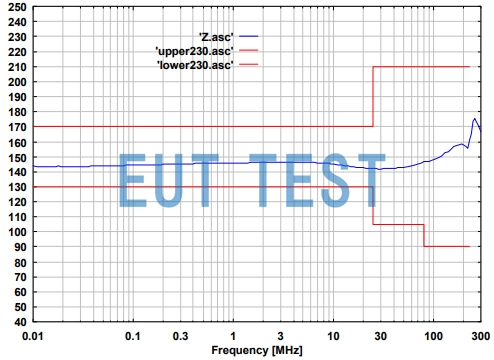

Common mode impedance graph
