CDN S1 BNC 50 Ohm Coaxial Shielded Cable Coupling Decoupling Networks

Name: CDN S1 BNC 50
Brand: Schwarzbeck
SKU: cdn-s1-bnc-50
Price: 1725 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

CDN S1 BNC 50 Ohm Coaxial Shielded Cable Coupling Decoupling Networks

CDN S1 BNC 50 Ohm Coaxial Shielded Cable Coupling Decoupling Network Common Mode Impedance Curves

Model: CDN S1 BNC 50

Type: CDN-S Sequentially Coupled Decoupled Networks

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards:

IEC 61000-4-6

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

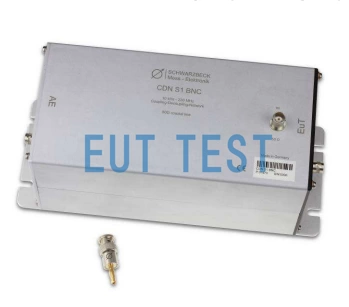

CDN S1 BNC 50 is a 50 Ohm coaxial shielded cable coupling and decoupling network device from Schwarzbeck, Germany, which can be used for conducted immunity testing of coaxial shielded cables with 50 Ω impedance and BNC connectors, and which is authorized to be sold and quoted by the EUTTEST agent in Shenzhen. The device meets the requirements of IEC 61000-4-6, Figure D.1, and can be used for conducted sensitivity testing of coaxial cables with 50Ω impedance, with a maximum support of 100V AC or 150V DC input to the DUT, and a rated current of 0.25A. A notch on the bottom of the device is provided for connecting to a reference ground plane.

We also offer another CDN S1 BNC 75 can be used for conducted immunity testing of coaxial cables with 75Ω impedance.The

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Model number	CDN S1 BNC 50
Device name	50 Ohm Coaxial Shielded Cable Coupling Decoupling Networks
Coaxial cable impedance under test	50Ω
Number of cables under test	1 strip with BNC connector
manufacturer	Schwarzbeck
agent	EUT TEST
Test frequency range	10kHz-230MHz
Common mode impedance of CDN	At 10 kHz - 24 MHz: 150 Ω ±20 Ω At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω 80 MHz - 230 MHz: 150 Ω ±60 Ω See common mode impedance graph below for detailed values.
partial pressure coefficient	9.5dB
Maximum RF Voltage	30V
Maximum input power	6W ≈ 37dBm
connector	BNC
Input/Output Impedance	50Ω
Maximum Input Voltage	100V AC 150V DC
saturation current	0.25A
size	216 mm105 mm108 mm
weight	1.6 kg
Recommended Calibration Options	SA BNC SR 100-6W

<<<<提醒：左右滑动表格>>>>

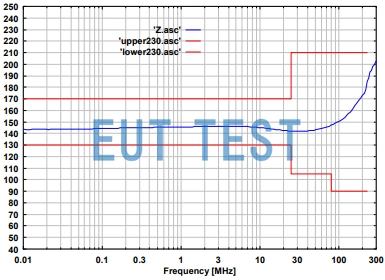

Common mode impedance graph
