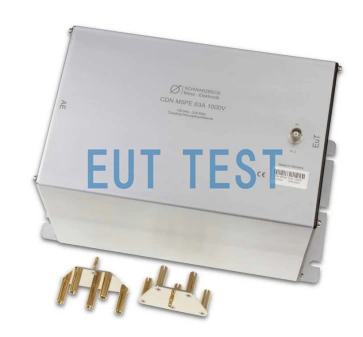

CDN M5PE 63A 1000V SCHWARZBECK 3-phase 5-wire coupled decoupling network

Model: CDN M5PE 63A 1000V
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

CDN M5PE 63A 1000V is a three-phase, five-wire coupling and decoupling network product manufactured by SCHWARZBECK Company in Germany and authorized by Shenzhen EYT Company for sales and quotation service. The device supports the maximum line-to-ground AC voltage of 500V and DC voltage of 1000V, the maximum saturation current of 63A, and can be connected to a total of five three-phase power cables of L1, L2, L3, N and GND of the test object. Can also be used for EMC testers according to IEC 61000-4-6 Annex D.2 standards for conducted common mode immunity test, suitable for unshielded AC and DC power lines (utility) along the power line conducted immunity test.

The connection of this 5-wire CDN coupling and decoupling network to the reference ground plane is made through the bottom of the CDN. In addition, the AE side capacitor has a 2 MΩ discharge resistor, an M4 threaded ground on the AE side, and a 4 mm socket for connecting the unit to ground. four 6 mm wide mounting slots on the CDN base plate allow you to snap the CDN onto the screws.

For increased operational safety, the power connection using this device should be made with a safety socket. If you intend to design your own adapter, we recommend that you use a special 4 mm safety plug. These connectors can also be purchased together by contacting us.

If you have a three-phase, four-wire product, you can also purchase it:CDN M4PE 32A 1000V (with ground) or CDN M4 63A 1000V(with zero line).

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberCDN M5PE 63A 1000V
Device nameFive-wire coupled decoupling network-CDN
manufacturerSchwarzbeck
agentEUT TEST
Test frequency range150kHz-230MHz
Common mode impedance of CDNAt 150 kHz - 24 MHz: 150 Ω ±20 Ω

At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω

80 MHz - 230 MHz: 150 Ω ±60 Ω

See common mode impedance graph below for detailed values.

Maximum RF Voltage30V
Maximum input power6W
connectorBNC
impedance50Ω
Maximum Operating Voltage - Line to Ground500V AC

1000V DC

Maximum operating voltage - line to line1000V AC

2000V DC

saturation current63A
size251 mm * 165 mm * 167 mm
weight4.5 kg
Recommended Calibration OptionsCA 5/6

SR 30/4

SR 100-6W

<<<<提醒:左右滑动表格>>>>

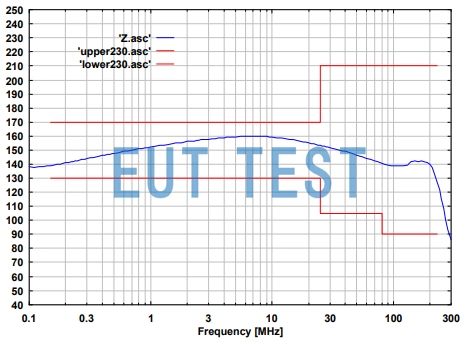

Common mode impedance plot:

The following figure shows the common mode impedance curve of this product in accordance with the requirements of IEC 61000-4-6 and GBT 17626.6 conducted immunity test standard, the red line in the figure represents the impedance value range given by the standard.

Common mode impedance plot of CDN M5PE 63A 1000V 5-wire coupled decoupling network

Common mode impedance graph

Product Recommendation:

The CDN M5PE is available in 16A, 32A, 63A, and 125A current versions. If this product does not meet your requirements, please choose one of the following products:



  • Learn how to shop for a CDN?
  • Need CDNE?
  • Need more CDN & CDNE Coupling & Decoupling Networks models with test voltages and number of cables under test?

Please go to the following link to view:

Difference between CDN and CDNE Schwarzbeck Coupling Decoupling Networks Product Catalog
