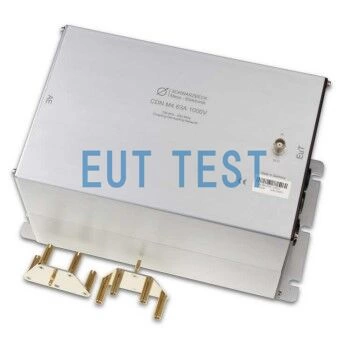

CDN M4 63A 1000V SCHWARZBECK 4-wire coupled decoupling network

Model: CDN M4 63A 1000V
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

CDN M4 63A 1000V is a four-wire coupling and decoupling network product manufactured by SCHWARZBECK Company in Germany, authorized by Shenzhen EYT Company for sales and quotation service. This CDN coupling and decoupling network supports the maximum line-to-ground AC voltage of 500V and DC voltage of 1000V, the maximum saturation current of 63A, and can be connected to the four cables of L1,L2,L3,N of the DUT. It can also be used for EMC testers to conduct conducted common mode immunity tests according to IEC 61000-4-6 Annex D.2 standard, and is suitable for conducting conducted immunity tests along the power lines of unshielded AC and DC power lines (utility).

This CDN is similar to the CDN M4PE 125A 1000V Both are four-wire coupling networks, but the cable connection of two kinds of CDNs are different, CDN M4PE is L1,L2,L3,PE; CDN M4 is L1,L2,L3,N. Please select the correct test instrument according to the working mode of the DUT.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberCDN M4 63A 1000V
Device nameFour-wire coupled decoupling network-CDN
manufacturerSchwarzbeck
agentEUT TEST
Test frequency range150kHz-230MHz
Common mode impedance of CDNAt 150 kHz - 24 MHz: 150 Ω ±20 Ω

At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω

80 MHz - 230 MHz: 150 Ω ±60 Ω

See common mode impedance graph below for detailed values.

Maximum RF Voltage30V
Maximum input power6W
connectorBNC
impedance50Ω
Maximum Operating Voltage - Line to Ground500V AC

1000V DC

Maximum operating voltage - line to line1000V AC

2000V DC

saturation current63A
size251 mm * 165 mm * 167 mm
weight4.5 kg
Recommended Calibration OptionsCA 4/6

SR 30/4

SR 100-6W

<<<<提醒:左右滑动表格>>>>

Common mode impedance plot:

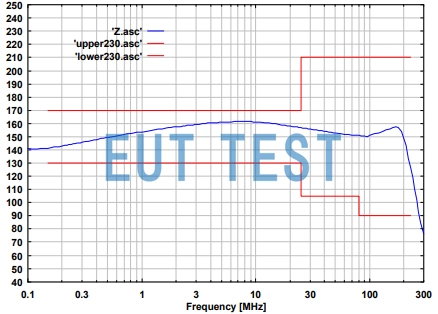

The following figure shows the common mode impedance curve of this product in accordance with the requirements of IEC 61000-4-6 and GBT 17626.6 conducted immunity test standard, the red line in the figure represents the impedance value range given by the standard.

Common mode impedance plot of CDN M4 63A 1000V four-wire coupled decoupling network

Common mode impedance graph
