Introduction：

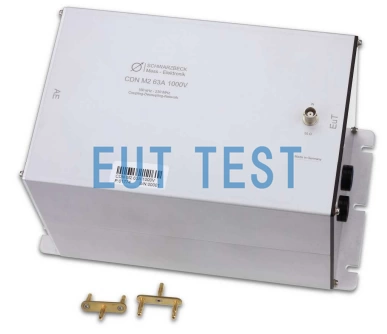

CDN M2 63A 1000V is a two-wire coupling and decoupling network manufactured by SCHWARZBECK, Germany and authorized by Shenzhen EYT Company for sales and quotation service. This CDN coupling and decoupling network supports a maximum AC voltage of 500V and a maximum DC voltage of 1000V, and a maximum saturation current of 63 A. It can be used by EMC testers to conduct conducted common-mode immunity tests according to the IEC 61000-4-6 Annex D.2 standard, and is suitable for conducting immunity tests along the power supply lines of unshielded AC and DC power lines (mains). .
This model is compatible with CDN M2 32A 1000V The biggest difference is that the test current has been expanded to 63A, supporting more DUT types.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | CDN M2 63A 1000V |
| Device name | Bilinear coupled decoupling network-CDN |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUTTEST |
| Test frequency range | 150kHz-230MHz |
| Common mode impedance of CDN | At 150 kHz - 24 MHz: 150 Ω ±20 Ω At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω 80 MHz - 230 MHz: 150 Ω ±60 Ω See common mode impedance graph below for detailed values. |
| Maximum RF Voltage | 30V |
| Maximum input power | 6W |
| connector | BNC |
| impedance | 50Ω |
| Maximum Operating Voltage - Line to Ground | 500V AC 1000V DC |
| Maximum operating voltage - line to line | 1000V AC 2000V DC |
| saturation current | 63A |
| size | 215 mm * 165 mm * 167 mm |
| weight | 3.48 kg |
| Recommended Calibration Options | CA 2/6 SR 30/4 SR 100-6W KBT6AR-N/10-S (for 10 mm² cable) KBT6AR-N/16-S (for 16 mm² cable) |
Common mode impedance plot:
The following figure shows the common mode impedance curve of this product in accordance with the requirements of IEC 61000-4-6 and GBT 17626.6 conducted immunity test standard, the red line in the figure represents the impedance value range given by the standard.
Common mode impedance graph
