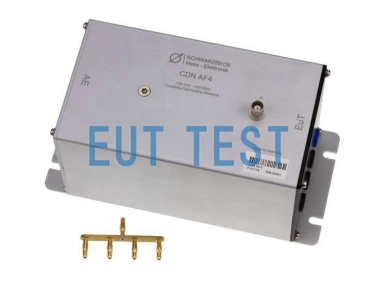

CDN AF4 SCHWARZBECK Unbalanced line coupled decoupling network

Model: CDN AF4
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

CDN AF4 is an unbalanced line coupling decoupling network product manufactured by German SCHWARZBECK company, which can test four unshielded or unbalanced cables of EUT, and the product is authorized to be sold and quoted service by Shenzhen EYT agent.

This CDN coupling/decoupling network device supports an input AC voltage of 100V or a DC voltage of 150V at the DUT, has a rated input current of 4A, and can connect up to four unshielded or unbalanced data lines from the DUT.

AF Sequence CDN Scope of application:

AF Sequence CDNs are designed to be used by EMC testers for conducted common mode immunity testing according to IEC 61000-4-6 Annex D.2. We generally recommend that our customers use these CDNs for interconnecting cables between AEs and EUTs, and before settling on an AF Sequence CDN, you should prioritize the use of an AF Sequence CDN.CDN-M type,CDN-T type,CDN-S type coupled decoupling networksThe selected CDN should not unduly affect the functional signaling of the EUT, and the AF type CDN should only be used as a last resort when there is no alternative.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberCDN AF4
Device nameUnbalanced line coupling decoupling network
Number of cables under testFour lines can be measured
Type of cable under testUnshielded Cable - Data Cable

Unbalanced Cable - Data Cable

manufacturerSchwarzbeck
agentEUT TEST
Test frequency range150kHz-230MHz
Common mode impedance of CDNAt 150 kHz - 24 MHz: 150 Ω ±20 Ω

At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω

80 MHz - 230 MHz: 150 Ω ±60 Ω

See common mode impedance graph below for detailed values.

partial pressure coefficient9.5dB
Maximum RF Voltage30V
Maximum input power6W ≈ 37dBm
connectorBNC
impedance50Ω
Maximum Input Voltage100V AC

150V DC

saturation current4A
size216 mm*105 mm*108 mm
weight1.4 kg
Recommended Calibration OptionsCA 4/4

SR 30/4

SR 100-6W

<<<<提醒:左右滑动表格>>>>

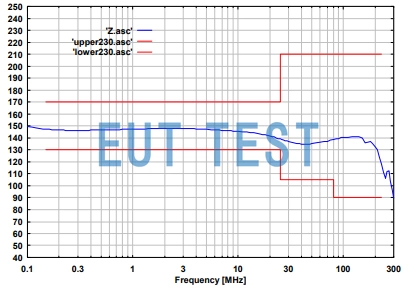

Common mode impedance plot:

The following figure shows the common mode impedance curve of this product in accordance with the requirements of IEC 61000-4-6 and GBT 17626.6 conducted immunity test standard, the red line in the figure represents the impedance value range given by the standard.

CDN AF4 SCHWARZBECK Unbalanced Line Coupling Decoupling Network Common Mode Impedance Graphs

Common mode impedance graph

Product Recommendation:

This product can only test two interconnecting cables. If this does not meet your requirements, we also offer the following AF Sequential Coupling Decoupling Networks with a wide range of interconnecting cable counts:

Other types of CDN recommendations:

  • Learn how to shop for a CDN?
  • Need CDNE?
  • Need more CDN & CDNE Coupling & Decoupling Networks models with test voltages and number of cables under test?

Please go to the following link to view:

Difference between CDN and CDNE Schwarzbeck Coupling Decoupling Networks Product Catalog
