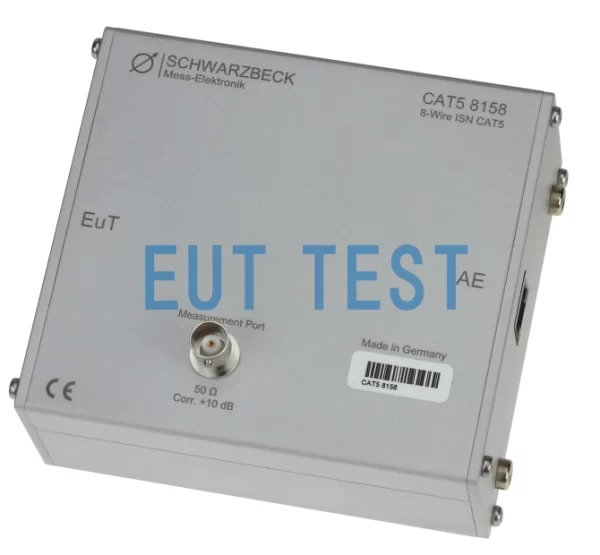

CAT5 8158 Schwarzbeck ISN for Category 5 CAT5 cables

Model: CAT5 8158
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

CAT5 8158 is produced by Germany Schwarzbeck and authorized by Shenzhen EUTTEST agent sales T8-ISN that is, 8-wire impedance matching network, it can test 4 pairs of wires UTP, the design principle in line with the requirements of the standard CISPR 22 edition 5.2-figure D.3 ( LCL = 65 dB ), CAT5 8158 design schematic diagram The schematic diagram of CAT5 8158 is shown below:

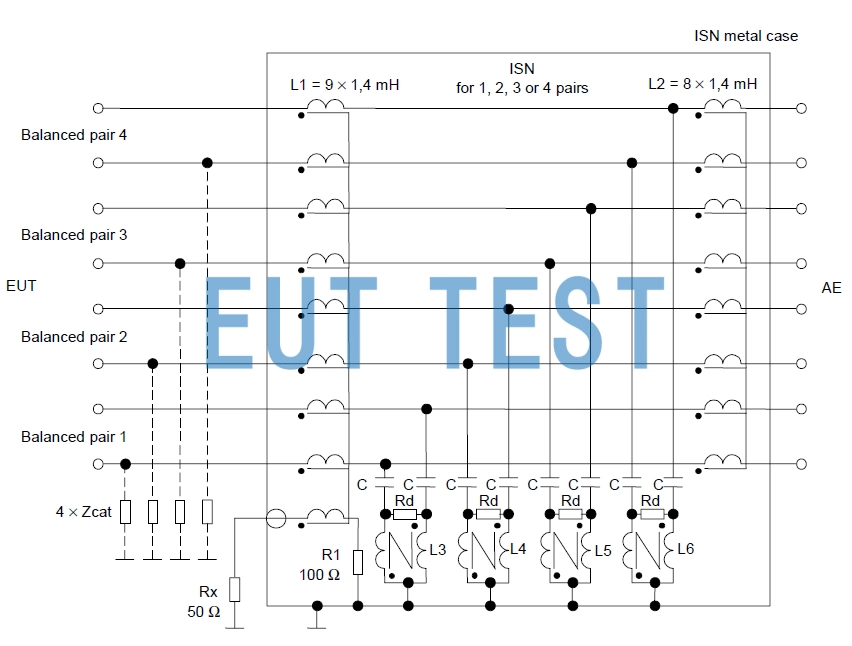

CAT5 8158 Design Schematic

CAT5 8158 Design Schematic

The ISN CAT5 8158 also allows common mode interference voltage measurements to be performed on unprotected twisted-pair UTPs or communication ports with 2, 4, 6, or 8 conductors. The device under test, EuT, or auxiliary equipment, AE, can be connected using an RJ-45 socket. Pin assignments follow EIA/TIA-T568A/B.

CAT5 8158 also complies with the AAN device requirements of CISPR32, details of which can be found by clicking on the link below:

How to select ISNs and AANs by test standard requirements?

Technical parameters of CAT5 8185:

<<<<提醒:左右滑动表格>>>>
Model numberCAT5 8158
Instrument nameImpedance Stabilization Network
Applicable cable typeCAT5 Cable
producersSchwarzbeck
Frequency range in ISN mode150 kHz - 30 MHz
Frequency range in CDN mode150 kHz - 80 MHz
Product TypeT8, T4, T2-ISN, CDN (EAB8 50-150 required)
Insertion loss S21typ.: < 1 dB 150 kHz to 30 MHz

typ.: < 2.5 dB 30 MHz to 250 MHz

CISPR 22, Appendix D, Fig. D.3

Decoupling AE-EUT>55 dB
LCL longitudinal conversion loss65 dB @ 150 kHz

49 dB @ 30 MHz

cultivateEuttest.com
partial pressure coefficient10 dB ± 1 dB
AE EUT ConnectorsRJ-45
Maximum current800mA
Maximum voltage63 VAC / 100 VDC
RF connectorBNC
weight465g
size125 mm x 62 mm x 105 mm
<<<<提醒:左右滑动表格>>>>

Technical data charts:

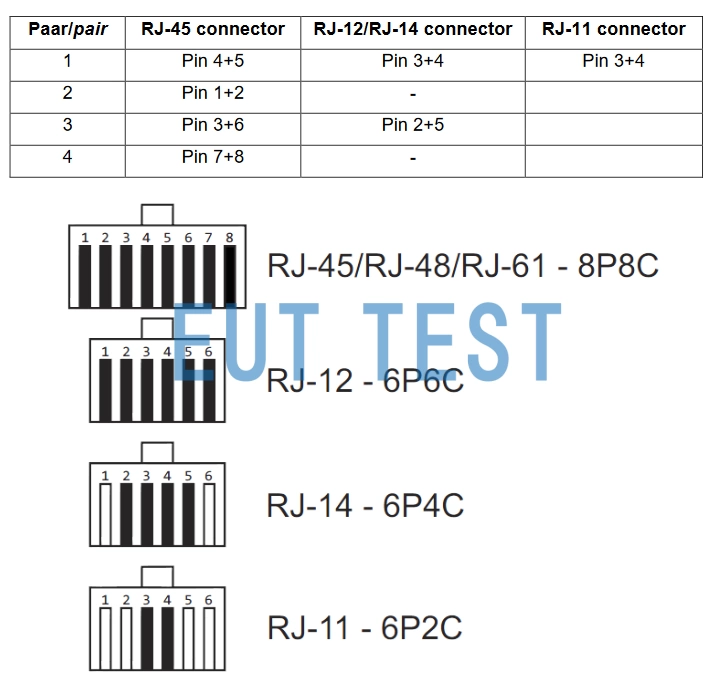

CAT5 8158 connectors can be adapted to a wide range of network cables.

CAT5 8158 connectors can be adapted to a wide range of network cables.

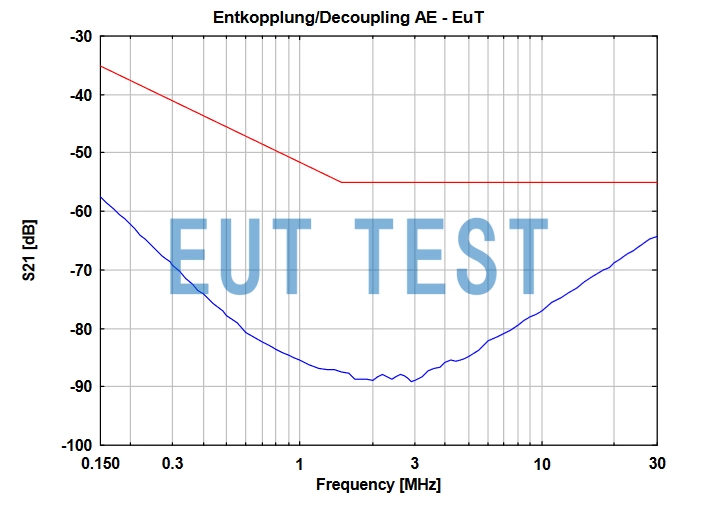

 S21 plot for CAT5 8158

S21 plot for CAT5 8158

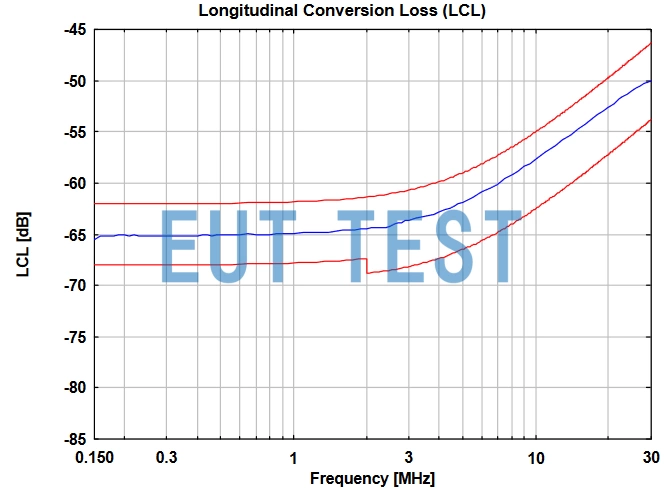

LCL Longitudinal Conversion Loss for CAT5 8158 CISPR22 Compliant

LCL Longitudinal Conversion Loss for CAT5 8158 CISPR22 Compliant

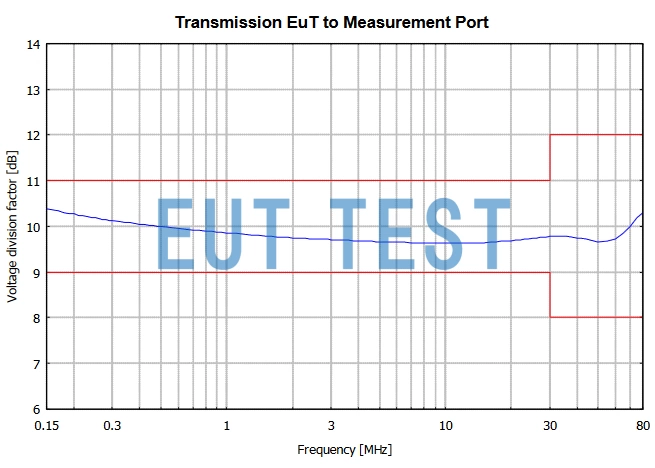

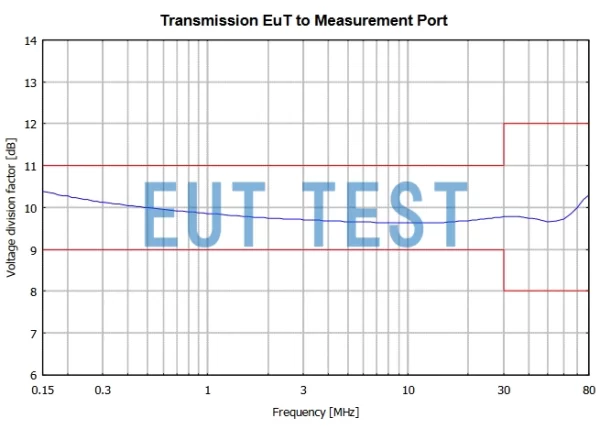

 Voltage Dividing Factor for CAT5 8158

Voltage Dividing Factor for CAT5 8158

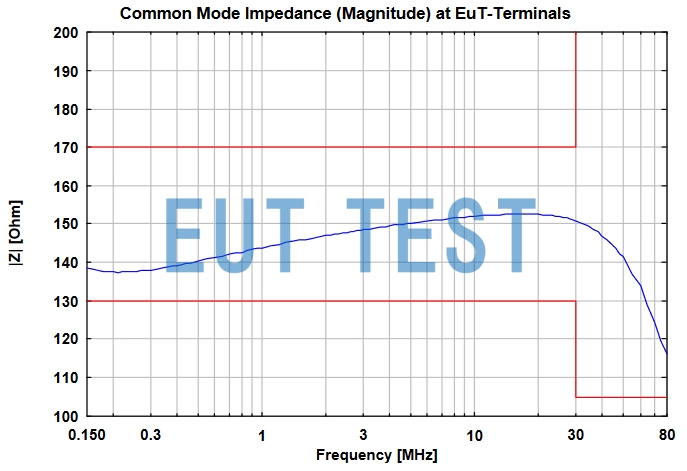

 Impedance of CAT5 8158

Impedance of CAT5 8158

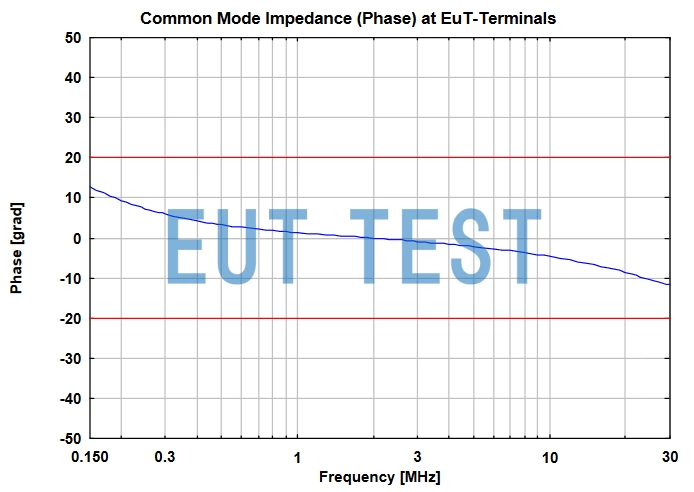

 Phase of CAT5 8158

Phase of CAT5 8158
