CAT3 8158 Schwarzbeck ISN for CAT3 Category Cables

Model: CAT3 8158
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

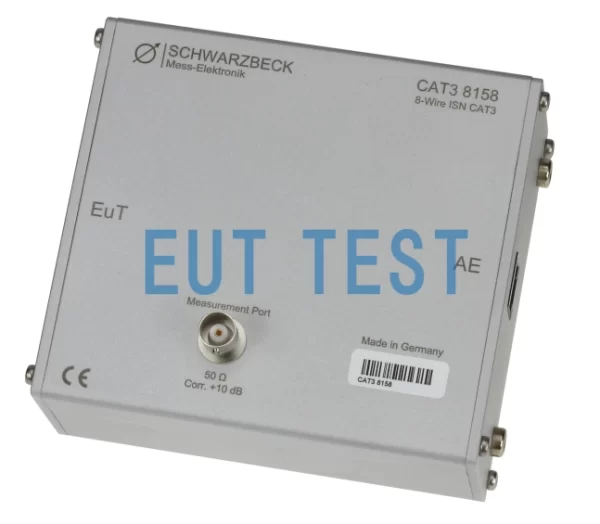

CAT3 8158 is produced by Germany Schwarzbeck and authorized by Shenzhen EUTTEST agent sales of T8-ISN that is, 8-wire impedance matching network, with theCAT5 8158 The difference is that CAT3 is suitable for CAT3 network cables. CAT38158 conforms to ( LCL = 55 dB ) standard CISPR 22 edition 5.2 - Figure D.3 for 4-pair wire UTP, the design schematic is shown below:

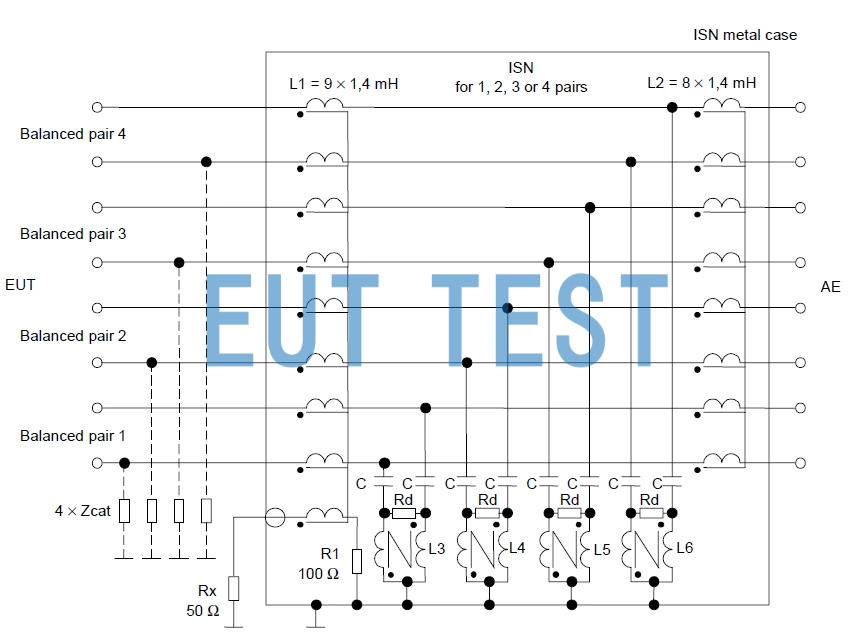

CAT3 8158 Design Schematic

schematic design

The ISN CAT3 8158 allows to perform common mode interference voltage measurements on unprotected twisted pair (UTP) or communication ports with 2, 4, 6 or 8 conductors according to CISPR 22:2005 or EN 55022:2006. It has connectors to accommodate a wide range of network cables, as shown in the figure below:

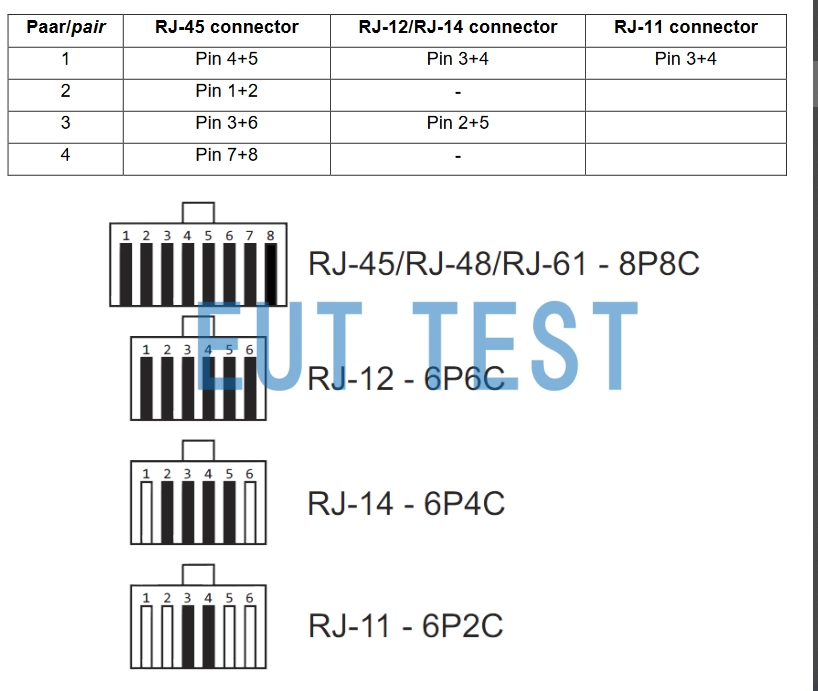

CAT3 8158 connectors can be adapted to a wide range of network cables.

The connectors can be adapted to a wide range of network cables

In addition to measuring the interference voltage, the CAT3-8158 allows measurement of the immunity in progress. CISPR 24 or EN 55024 up to 80 MHz. For testing IEC 61000-4-6 an additional 50 Ω-150 Ω impedance conversion option (EAB8 50-150) is required, which can be easily mounted on the CAT3 8158 and is available as an option.

The CAT3 8158 also meets the AAN device requirements for CISPR32, details of which can be found by clicking on the link below:

How to select ISNs and AANs by test standard requirements?

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberCAT3 8158
Instrument nameImpedance Stabilization Network
Applicable test cable typesCAT3 Cable
producersSchwarzbeck
agentShenzhen EUTTEST
ISN mode available frequency range150 kHz - 30 MHz
Frequency range available in CDN mode150 kHz - 80 MHz
Product TypeT8, T4, T2-ISN, CDN (EAB8 50-150 required)
insertion losstyp.: < 1 dB 150 kHz to 30 MHz

typ.: < 2.5 dB 30 MHz to 250 MHz

CISPR 22, Appendix D, Fig. D.3

Decoupling AE-EUT>55 dB
LCL longitudinal conversion loss55 dB @ 150 kHz

39 dB @ 30 MHz

agentEuttest.com
partial pressure coefficient10 dB ± 1 dB
AE EUT ConnectorsRJ-45
Maximum current800mA per pair of wires
Maximum voltage63 VAC / 100 VDC
RF connectorBNC
weight465g
size125 mm x 62 mm x 105 mm
<<<<提醒:左右滑动表格>>>>

Illustration of technical parameters:

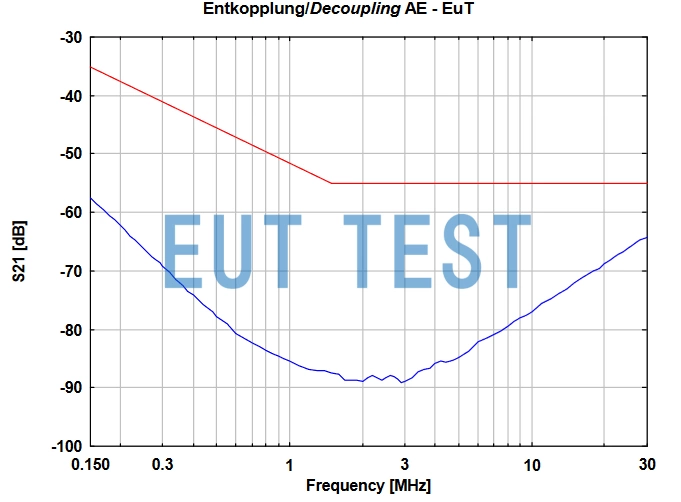

 S21 curve for CAT3 8158

S21 curve

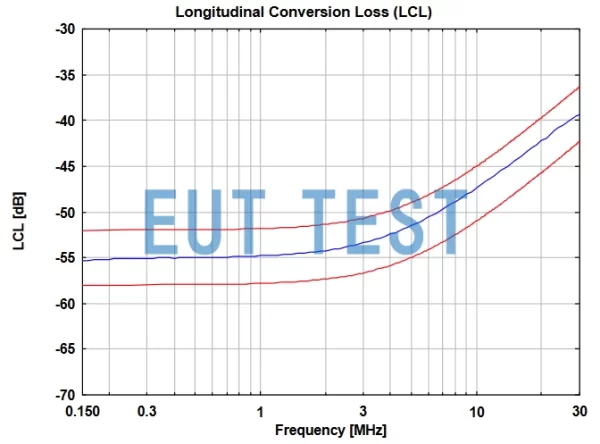

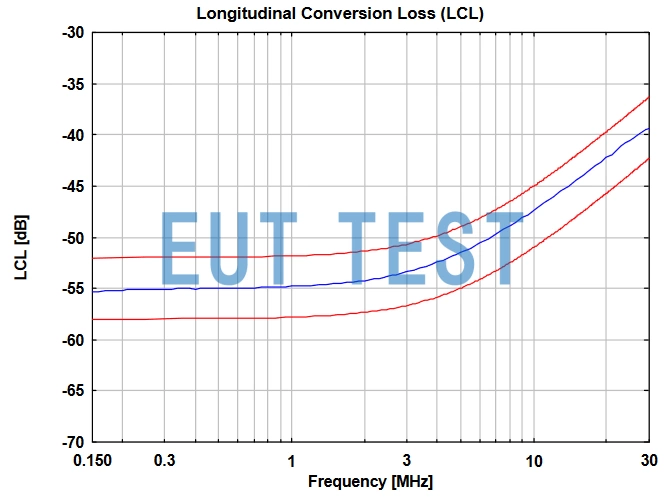

LCL longitudinal conversion loss for CAT3 8158

LCL Longitudinal Conversion Loss

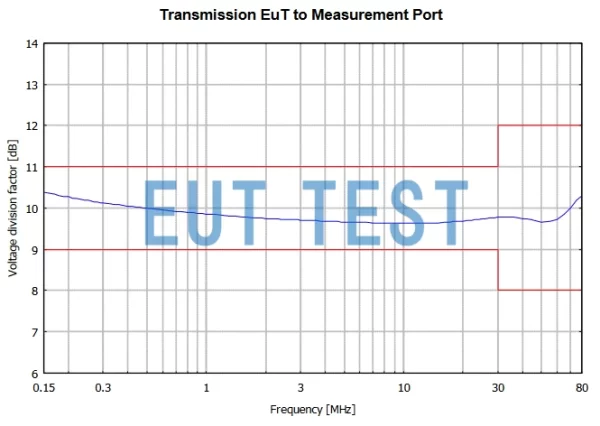

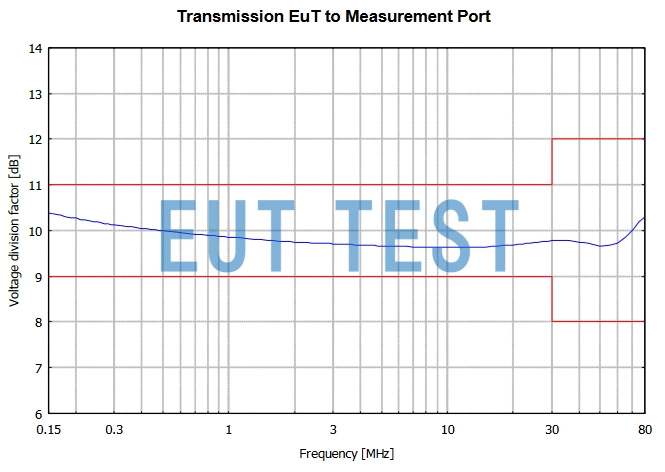

 Voltage Dividing Factor for CAT3 8158

voltage divider

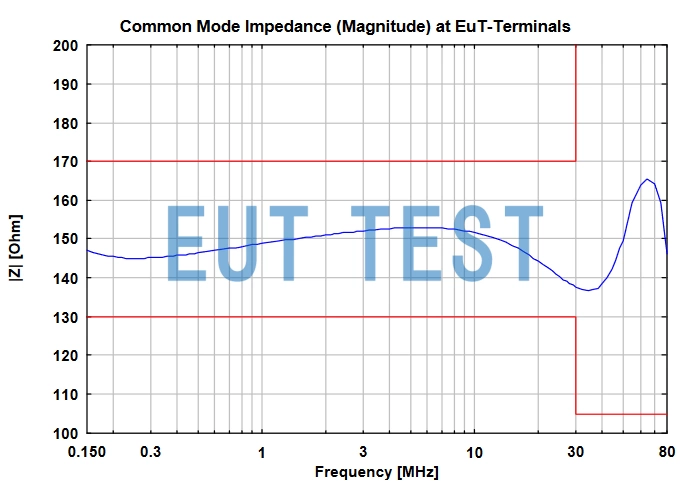

 Impedance Curve for CAT3 8158

Impedance graph

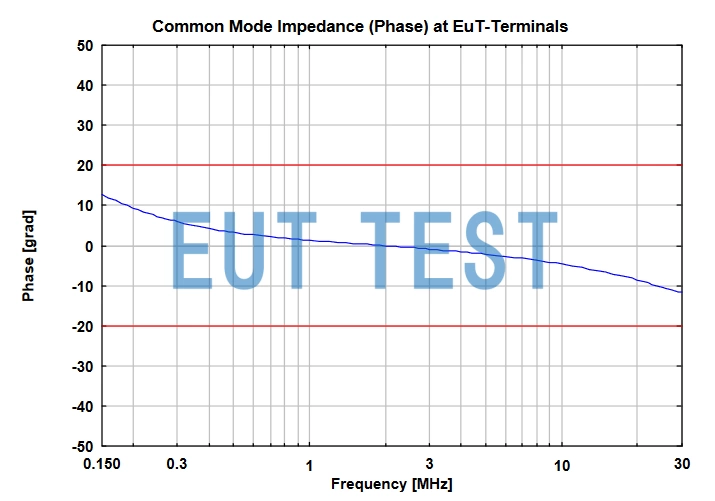

 Phase Curve Diagram of CAT3 8158

phase portrait
