Introduction:
BBHX 9120 LF is a dual polarized horn antenna manufactured by Schwarzbeck, Germany and distributed by EUTTEST Shenzhen. This antenna is specially designed for 1 meter test distance RF radiation emission and radiation reception test, according to the test requirements in the 800MHz-10.5GHz frequency range of RF power input up to 50 watts, dual-polarized antenna is configured with an input connector, can be input at the same time two different frequencies of RF signals and radiate from the different polarization direction, so our company recommends EMC We recommend EMC testers to use this antenna for dual-channel RF power emission testing at a distance of 1 meter.
Technical parameters:
<<<<提醒:左右滑动表格>>>>Product model | BBHA 9120 LF |
manufacturer | Schwarzbeck, Germany |
Domestic Agency Sales Service Provider | Shenzhen EUTTEST |
Recommended Test Frequency Range | 1 GHz - 8 GHz |
Maximum Test Frequency Range | 0.8 GHz - 10.5 GHz |
Isotropic gain - at 1 meter test distance | Typical: 4 -15 dBi |
Antenna factor - at 1 meter test distance | 20 - 34 dB/m |
impedance | 50 Ω |
SWR | 2 |
Maximum input power | 50W |
connector | N mother |
size | 190 x 190 x 420 (600) mm |
weight | 2.8 kg |
Option - 22mm mounting tube | d=22 mm, L=200 mm |
Optional-Antenna Mount | AM 9144 |
Graphical representation of the technical parameters of the BBHX 9120LF:

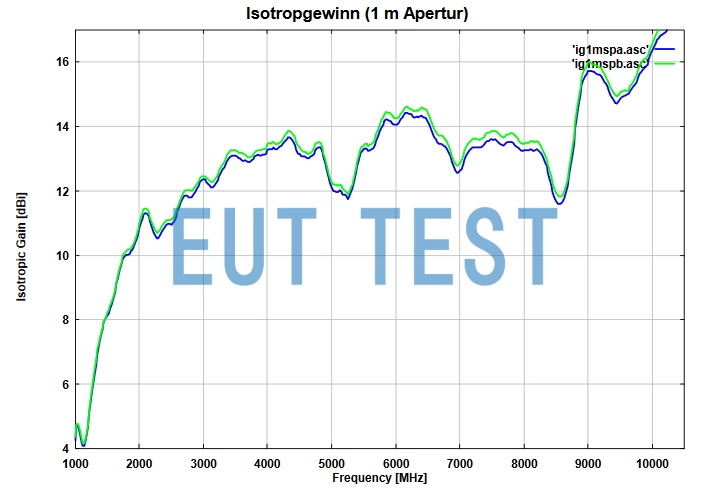

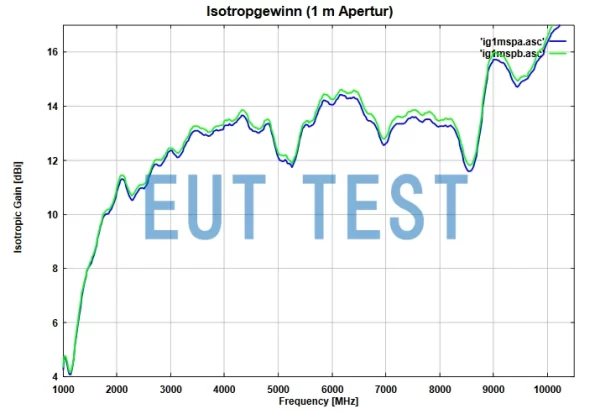

Isotropic gain plot at 1 meter test distance

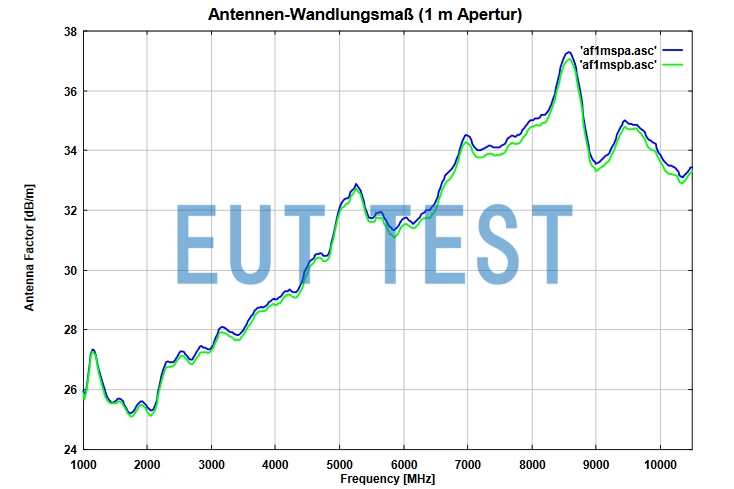

Plot of antenna coefficients at 1 meter test distance
