Introduction:
BBHX 9120 E is a dual polarized horn antenna manufactured by Schwarzbeck, Germany and distributed by EUTTEST Shenzhen. This antenna can be used in the frequency range of 400MHz-10GHz according to the demand for far-field RF radiation emission and radiation reception test, the maximum input RF power of 200 watts, dual-polarized antenna is configured with an input connector, can be input at the same time two different frequencies of RF signals and radiated from different polarization direction, so we recommend EMC testers to use this antenna for Dual-channel far-field RF power emission test.
Technical parameters:
<<<<提醒:左右滑动表格>>>>Model number | BBHX 9120 E |
manufacturer | Schwarzbeck, Germany |
agent | Shenzhen EUTTEST |
Test frequency range | 0.7GHz - 7GHz |
Maximum available frequency range | 0.4GHz - 10GHz |
isotropic gain | Typical: 6-15 dBi |
radiance factor | 20-34 dB/m |
impedance | 50Ω |
SWR | 2 |
Maximum input power | 200W |
connector | N mother |
size | 320 x 320 x 615mm |
weight | 6 kg |
Option - 22mm mounting tube | d=22 mm, L=200 mm |
Option-Antenna Triangle Bracket | AM 9144 |
Graphical representation of the technical parameters of the BBHX 9120E:

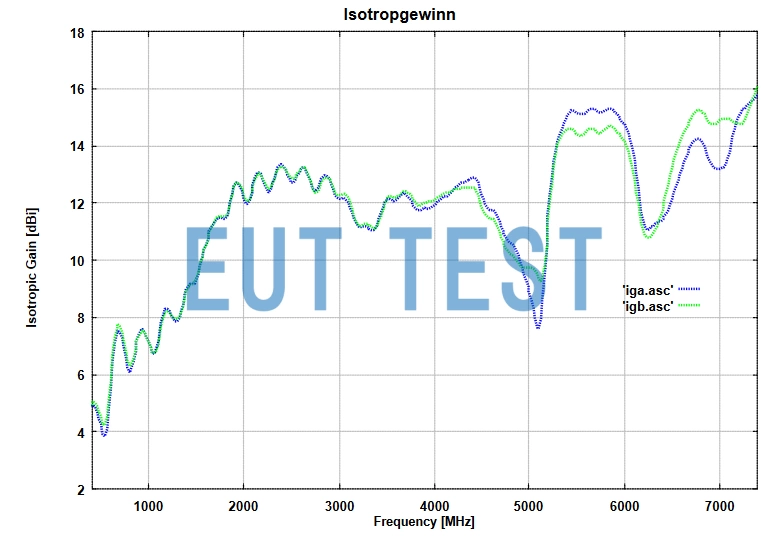

Isotropic Gain Curve

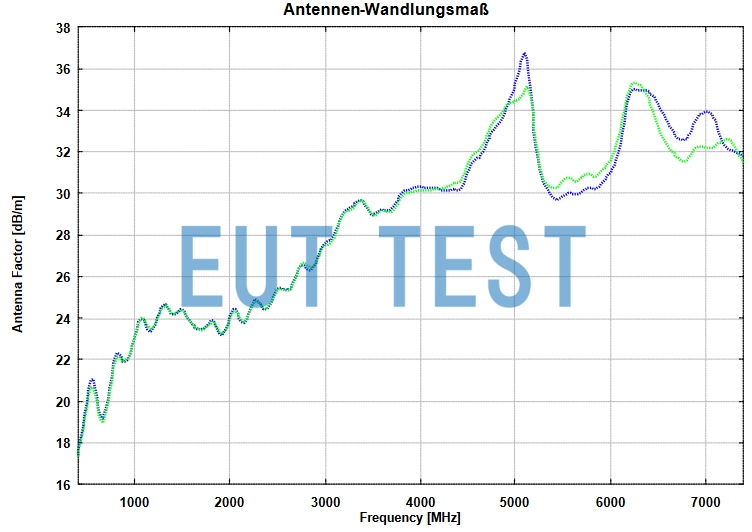

Antenna Coefficient Graph
