Introduction：
The BBHA 9120 F is a linearly polarized 2 GHz device manufactured by Schwarzbeck, Germany.Double ridge horn antennaThe antenna is authorized to be sold by EUTTEST Shenzhen, the antenna can be used in the frequency range of 0.2 GHz-2 GHz for EMC EMC lab customers for RE reception and RS transmission applications, especially suitable for GJB151B-2013 radiated emission and radiated immunity testing below 2 GHz, we provide an optional 7-16 connector can be used for high power input test applications.
How do I select the connector for the input connector of the BBHA 9120F?
1. Maximum input power when selecting N-type connectors:
- 1.5 kW @ 200 MHz
- 0.5 kW @ 2 GHz Max.
2、Maximum input power when selecting 7/16 connector
- 3.5 kW @ 200 MHz
- 1.5 kW @ 2 GHz
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | BBHA 9120 F |
| producers | SCHWARZBECK, Germany |
| Agent in China | Shenzhen EUTTEST |
| Frequency range | 0.2 GHz - 2 GHz |
| polarize | biometrics |
| Mode type | directional launch |
| material | aluminum structure |
| Maximum power | see chart |
| connector | N Mother 7/16 Optional High Power Connector |
| impedance | 50 Ω |
| lengths | 950 mm |
| height | 960 mm |
| high degree | 680 mm |
| weight | 16 kg |
| Bracket Installation | Center support M12, M10 and 3/8″ usable AM 9144 |
| option | PDG 9211
|
Graph of related technical parameters：

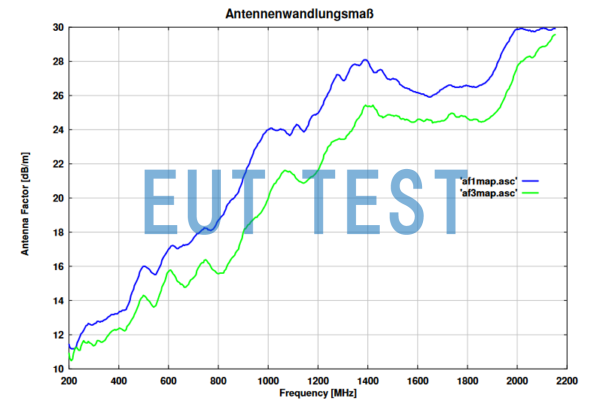

Antenna factor graphs (at 1 m and 3 m test distances)

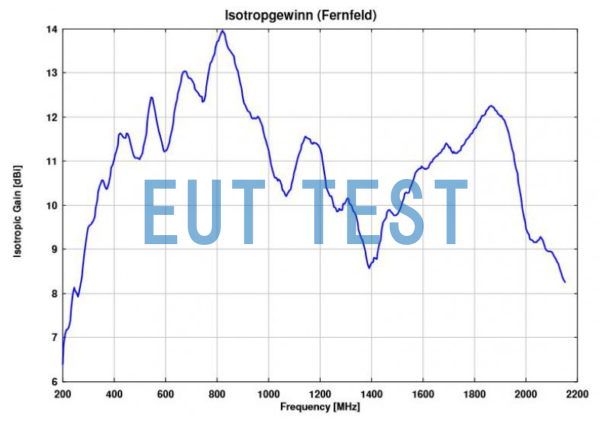

Isotropic Gain Curve
Option PDG 9211 Introduction:
The BBHA 9120F is very bulky and we recommend that customers purchase additional mounting bracket PDG 9211 and tripod AM 9144 for support, otherwise it will be very difficult to artificially change the antenna's polarization and fix the antenna.
BBHA 9120F with option PDG 9211 installed
