Introduction:
BBA 9106 + VHBD 9134 is a 2500W biconical antenna produced by Schwarzbeck, Germany, authorized by Shenzhen EUTTEST agent sales quotation and technical support services. This antenna consists of a biconical element BBA 9106 and Baron VHBD 9134, can be used in the frequency range of 20MHz-200MHz, the whole frequency band can be input 2.5kW of RF power for RF radiation immunity test use.
BBA 9106 and VHBD 9134 Technical Data:
<<<<提醒:左右滑动表格>>>>Antenna Model | bba 9106 + vhbd 9134 |
Antenna name | Biconical antenna |
manufacturer | Schwarzbeck |
agent | EUTTEST |
Test frequency range | 30MHz-300MHz |
Antenna Orientation Diagram | in all directions |
RF connector | N or 7/16 optional |
Maximum input power | 2500W |
polarize | biometrics |
impedance | 50Ω |
Antenna Gain | (-20dBi ) - 2dBi |
radiance factor | 7 dB/m - 17 dB/m |
weight | 2.1 kg |
Length of Barron VHBD 9134 | 530 mm |
Width of biconical element BBA 9106 | 1.35 m |
Recommended antenna mounts | AM 9144 AA 9202 AA 9203 |
Graph of related technical parameters:

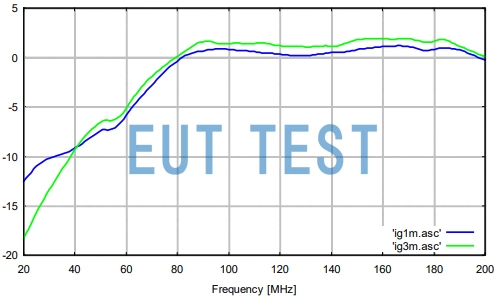

Antenna Gain Test Data
