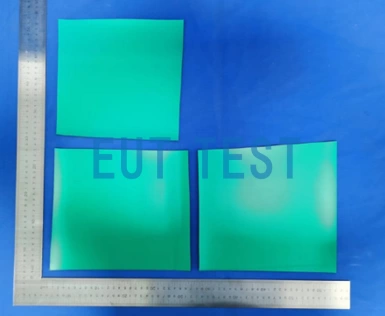

Product Description:
AOEMC-ESD-SDM is a kind of static dissipative mat used for automotive electronics according to EMC standard GB/T 19951 and ISO10605 when testing static electricity, also known as anti-static table mat, we sell anti-static table mat has a wide range of uses, in addition to static dissipation, you can also be used in factory assembly lines, laboratories, test benches, factory workshops and other scenes.
Meets criteria:
- GB/T 19951-2019 Test method for immunity to electrostatic discharge of electrical/electronic components of road vehicles
- ISO 10605-2008 Test Method for Electrical Nuisance Generated by Electrostatic Discharge in Road Vehicles

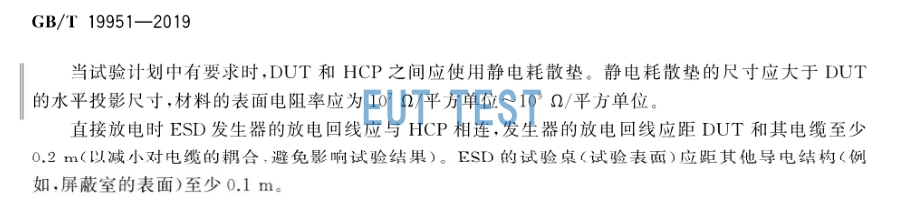

GB/T 19951-2019 Requirements for static dissipative mats
Provide test reports:
AOEMC-ESD-SDM is divided into two layers, the upper layer is static dissipative layer, the bottom layer is conductive layer, EUTTEST can provide customers who have purchased the upper and lower layers of the surface resistance test report, the report also contains volume resistance test data. The test report is based on SJ/T 10694-2022 Electronic Product Manufacturing and Application System Anti-static Test Methods to test, if you need a test report please inquire together with the inquiry, we will quote the cost of the test report together.
Technical parameters：
<<<<提醒：左右滑动表格>>>>
| Product model | AOEMC-ESD-SDM |
| Product name | Static Dissipative Mats Anti-static table mat |
| Surface resistance - top layer | 4*10^8 Ω |
| Surface Resistance - Substrate | 4*10^3 Ω |
| Maximum thickness | 2mm or 3mm available |
| Maximum temperature resistance | 100° |
| durometer | Shore hardness 90 |
| maximum width | 1.2 meters |
| Maximum length | 10 meters |
| ROSH | ROSH 2.0 |
| Recommended Products | Electrostatic discharge generator |
You can choose the size you need according to the maximum width and maximum length above and provide it to EUTTEST, our sales staff can cut the size you need free of charge and provide free installation of grounding clasp, which can be installed with grounding wire or anti-static bracelet for use.
ESD-SDM Installation of Ground Clamp and Ground Wire Effective Diagram
