AM 9144 Schwarzbeck Antenna Tripod with AM9144 Adapter Option

Model: AM 9144
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

AM 9144 is an antenna tripod and antenna mount manufactured by Schwarzbeck, Germany, and is authorized to be sold and quoted as a service agent by EUTTEST Shenzhen. In order to meet the different needs of testers on the antenna height, please from the following antenna bracket related AM9144 accessories: antenna adapter, antenna extension, antenna pole, tripod, casters and other configurations to choose the test height you need, such as your selection of the type of questions can be provided directly to the antenna test height to us, we will customize the antenna bracket to meet your needs.

We also recommend theAdjustable four-meter height antenna tower AM 9104 The

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberAM9144
manufacturerSchwarzbeck
Device nameTripod or antenna mount
Authorized AgentsShenzhen EUTTEST
The antenna can be adjusted for height range:0.56m-3m
Antenna or Adapter Mounting Threads3/8″ (male)
material (that sth is made of)GFK/Glass Fiber
Diameter of the occupied circle1.5m
weight5-7kg
Option-Matching Adapter
  • AA 9202
  • AA9202 POM
  • AA 9203
  • PDG 9211
  • RA 9215
  • AA 9205
  • AA 9209
  • KG 9201
Option - Bracket bar height H1Foundation poles:

  • T-05 (510mm~940mm)
  • T-08 (700mm~1300mm)
  • T-09 (800mm~1500mm)
  • T-12 (1050mm~1950mm)

Extra Extension Rod: H2

  • E-05 (430mm)
  • E-08 (600mm)
  • E-09 (710mm)
  • E-12 (900mm)
Option - Triangle stand base H3
  • M-VA: 10cm increase
  • M-GFK: Increase of 5 cm
  • M-TILT: 14cm increase; tiltable
Option - Bottom pulley H4
  • W-VA: Increase by 5cm
  • W-GFK: Increase by 5cm
<<<<提醒:左右滑动表格>>>>

AM 9144 Basic structure of a triangular antenna mast:

The basic structure of this antenna tripod consists of the following five parts:

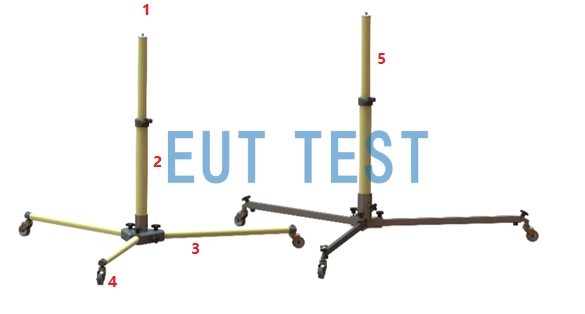

AM 9144 Five components

Five components

1. Antenna adapter

This antenna holder is supplied with a screw for 3/8 inch and female threads on which the following adapters can be mounted.

Adapter models include AA 9202, AA 9202 Paraformaldehyde material, AA 9203, PDG 9211, RA 9215, AA 9205, AA 9209, KG 9201 and many more to choose from.

The adapter needs to be selected according to the antenna, please provide the antenna model to EUTTEST to help you choose.

The antenna pole adapter is used on one end to attach to the screws of the tripod AM9144, and the other end snaps onto the antenna to hold the adapted antenna in place and change the polarization direction of the antenna according to the test requirements.

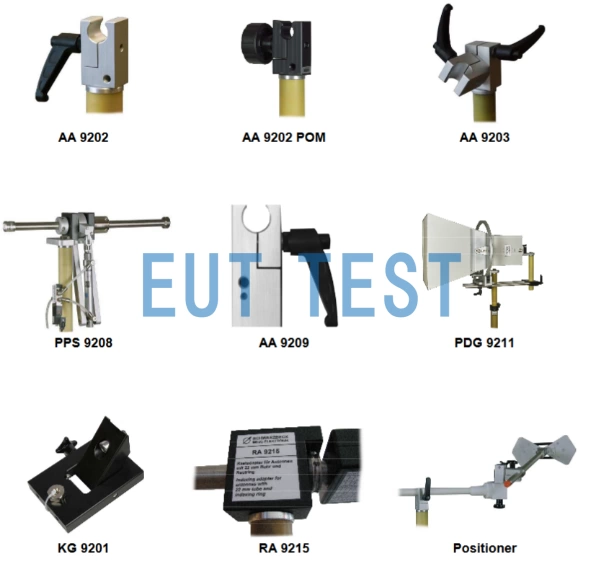

AM 9144 Optional Antenna Pole Adapter

Optional Antenna Pole Adapter

2. Foundation bars

The base pole is an interchangeable telescopic antenna pole of different sizes that must be selected. Just choose according to the length; available in 510mm; 700mm; 800mm; 1050mm.

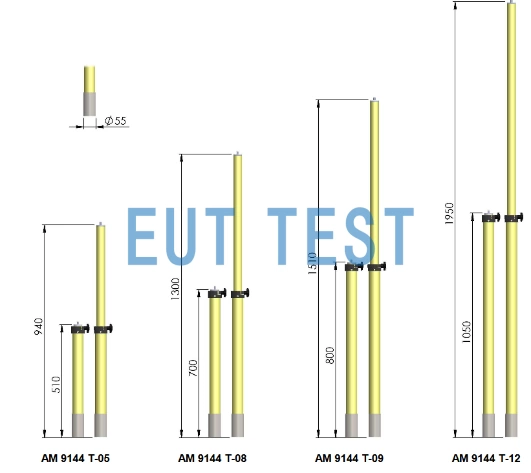

AM 9144 Selection of foundation bars of different heights depending on length

Selection of foundation poles of different heights according to length

3、Triangle bracket

Triangle brackets are available in 3 different materials: stainless steel, GF or tiltable mast feet.

Choose according to ground clearance, one 10cm ground clearance ( AM 9144 M-VA ) and one 5cm ground clearance ( AM9144 M-GFK ).

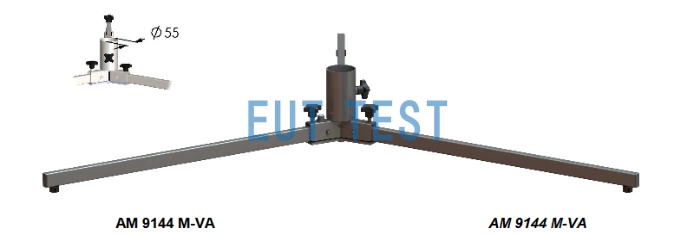

Three-legged bracket for AM 9144

Three-legged bracket

4、Casters

These wheels are optional. They have different mounting systems depending on the foot.

Casters fit stainless steel mast bases M-VA and tiltable masts M-TILT. they are simply attached, and locked in place with star shank screws. The tripod stays in place and does not move when the parking brake is applied.

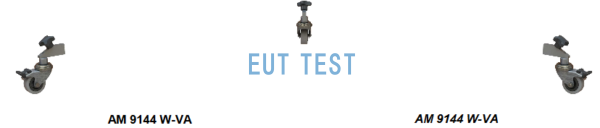

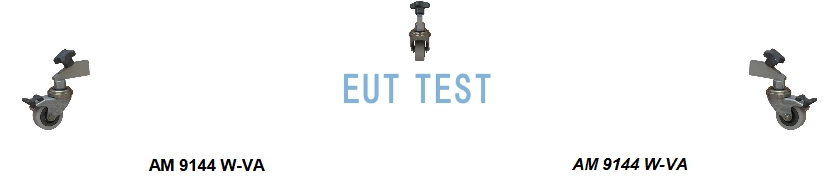

Casters for AM 9144

caster

5, Antenna pole extension extension pole

The maximum height of the antenna pole can be extended by adding an antenna pole extension pole. The extension pole is selected according to the required test height of the antenna, but it cannot be expanded infinitely because the higher the antenna is, the more likely it is to cause the antenna's center of gravity to be unstable and fall down and be damaged. Four heights of 430mm, 600mm, 710mm and 900mm are available.

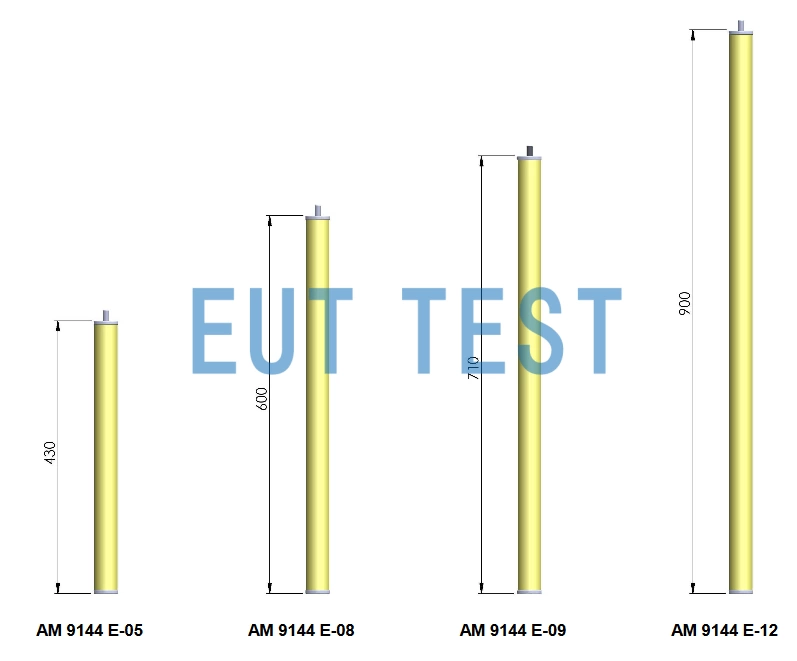

Four extensions for the AM 9144

Four extensions

These are the five components of the AM9144 tripod, you can continue to read the following content directly based on the test standards, antennas and other information to choose the test configuration has been fixed, but we still reserve the right for you to freely choose the configuration.

The basic configuration of the already fixed pairing:

BBHA 9120F Antenna How to choose an antenna tripod?

EMC standard testing of military equipment will use BBHA 9120F When the antenna is configured with the AM9144, it is configured with the model shown below.

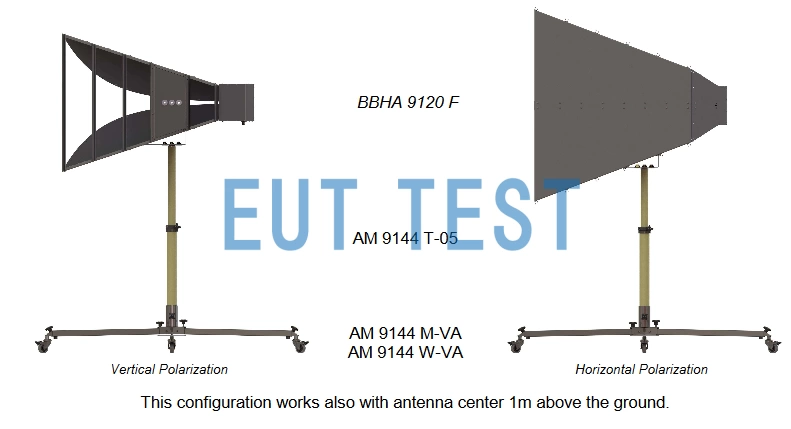

AM9144 Antenna Tripod with BBHA9120F Antenna Tests EMC Standards for Military Equipment

Antenna Tripod with BBHA9120F Antenna Tests EMC Standards for Military Equipment

The BBHA 9120F antenna can be mounted directly on the 3/8" threads of the telescoping section or by using the adapter described above. For more information, refer to the appropriate data sheet for the adapter.

How do I configure my antenna tripod for VAMP 9243 B Tie Rod Antenna Testing?

Schwarzbeck's tie rod antennas are used in the CISPR25, GJB151B, and MIL-STD-461 standards. VAMP 9243 or VAMP 9243 B, if required, can be configured directly according to the model shown in the figure below.

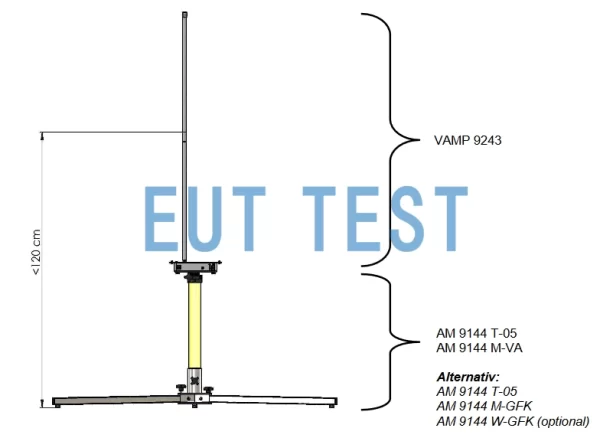

VAMP 9243 B Tie Rod Antenna Test How to Configure an Antenna Tripod

VAMP 9243 B Tie Rod Antenna Test How to Configure an Antenna Tripod

Note: The antenna height requirements for automotive electronics CISPR25 and military standard MIL-STD-461 testing are different. You need to select different antenna tripod configurations for different test standards.

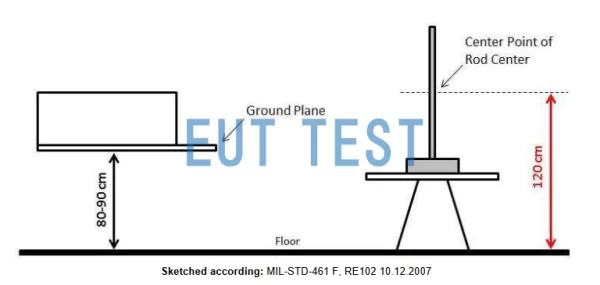

GJB151B, MIL-STD-461 Height Requirements for Tie Rod Antenna Arrangement

GJB151B, MIL-STD-461 Height Requirements for Tie Rod Antenna Arrangement

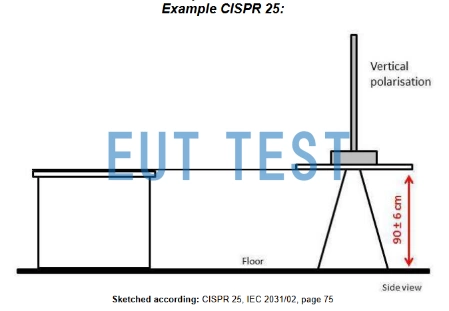

CISPR25, GB18655 standards on the height requirements of the test configuration of the tie rod antenna

CISPR25, GB18655 standards on the height requirements of the test configuration of the tie rod antenna

Get a quote:

When you have clearly selected the required test configuration from the above, please provide your selected model to us, EUTTEST as schwarzbeck's authorized agent, we will provide you with one-stop quotes including tax, original imported new products and door-to-door installation and commissioning services.

You can also contact us directly if you have questions about selection.
