Introduction：

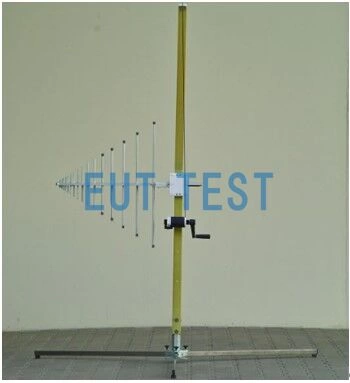

The AM 9104 is a height-adjustable four-meter antenna tower manufactured by Schwarzebck and distributed by EUTTEST in Shenzhen, Germany. The main application of this manually adjustable antenna tower is the frequent change of the antenna height during the measurement of RE-radiated emissions. The mast of the antenna tower can be mounted and dismounted manually in just 2 minutes without any tools, and due to its small transport dimensions it can be stored in a small car without any problems, so it is very convenient for outdoor radiation tests.
Antenna installation method:
The AM9104 antenna tower is used to mountEMI Test AntennaThe 22 mm antenna tube and index ring of the antenna being mounted can be stuck on the antenna tower. The polarization is held in place by a locking device on the antenna bracket, and an index ring is included with any Schwarzbeck antenna, allowing the antenna to snap directly onto the 22 mm antenna tube without the need for an additional antenna adapter. The antenna tower is fitted with a bubble level, allowing testers to easily adjust the polarization and level of the antenna on uneven ground, and the bottom triangular stabilizer bracket is fitted with pulleys, which is very useful for mobile testing applications.
If you need a miniaturized antenna tripod that doesn't require height adjustment, go for it: AM 9144 The
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | AM 9104 |
| Device name | Adjustable height antenna tower |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUTTEST |
| Height adjustable range | 40 cm to 4.15 m |
| Height adjustment method | hand shaken |
| polarization direction | Vertical polarization and horizontal polarization adjustment - manual |
| tilt | not have |
| weight | 13 kg |
| size | 1.17 m * 0.3 m * 0.3 m |
| Maximum load | 5 kg |
| Bottom Tripod Diameter | 2.06 m |
| Optional accessories (must choose one) | AM 9104 Opt. Rollen: stainless steel base AM 9104 Opt. GFK: metal-free base |
Schematic diagram of polarization direction adjustment:
The polarization direction of the installed antenna can be easily changed using the AM9104, but the pitch angle of the antenna cannot be adjusted.

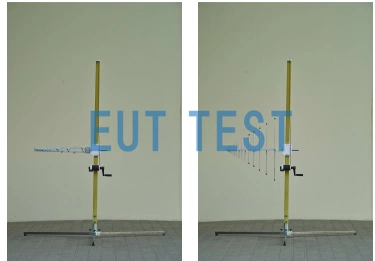

Antenna towers make it easy to change the polarization direction of installed antennas
