AK 9540B 40GHz RF coaxial cable Length customizable

Model: AK 9540B
Type: /
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

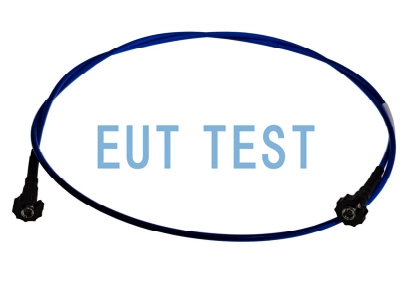

The AK 9540B is a 40 GHz RF coaxial cable manufactured by schwarzbeck in Germany and authorized for sale by EUTTEST in Shenzhen in customized lengths.The AK 9540 B offers low losses in the frequency range up to 40 GHz. It is flexible enough to cope with changing cable geometries and more than 500 duty cycles. 9540B cable's inner conductor consists of 19 silver-plated copper wires, each 0.2 mm in diameter, with a low-loss dielectric made of extruded LD (low-density) PTFE, and the outer conductor consists of two layers: a silver-plated copper foil and silver-plated copper braid, with the inner contact for RF signal propagation of the 2.92 mm RF connector made of gold-plated copper braid, and the inner contact for RF signal propagation made of gold-plated copper braid. The 2.92 mm RF connector's inner contact for transmitting RF signals is made of gold-plated copper-beryllium alloy, and the connector's outer contact for grounding is made of stainless steel.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberAK 9540B
manufacturerSchwarzbeck
agentShenzhen EUT TEST
impedance50Ω
capacitors90 pF/m
frequency of useBelow 40 GHz
Cable Shielding Effectiveness-100dB at 1GHz
Cable Diameter4.2 mm
Bending Diameter190 mm
operating temperature-55°C to 110°C
connector2.92mm, other fittings can be customized
lengthscustomizable
attenuationVariation with frequency, see decay graph below
<<<<提醒:左右滑动表格>>>>

Cable attenuation curves:

This cable is used more frequently and it is generally not recommended to use very long cables for testing. As you can see from the graph below, the cable attenuates as much as 8.5dB at a 3 meter length, compared to only 3dB at a 1 meter length.

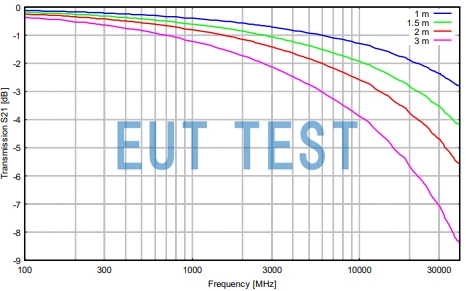

S21 attenuation curve of AK 9540B with cable length in 40 GHz frequency range

Plot of S21 attenuation with cable length in the 40 GHz frequency range

Coaxial cable shopping method:

Please start with one of the following coaxial cables in the frequency range you need to test:

Selecting the right modelAnd thenProvide cable length and connector type to EUTTEST. Get quotes and lead times from our sales staff.

We only offer new imported coaxial cables, no used goods or defective products.

Service

Our company sells all the instrumentation equipment products provide after-sales personnel door-to-door training or telephone, e-mail, microblogging and other ways of installation and training services.

We are committed to supplying equipment that is brand new and manufactured by the original manufacturers at home and abroad.

After-sales of the product is carried out by the after-sales policy provided by the original equipment manufacturer.

Purchase

The EUTTEST website does not sell any products online and is only used to display information about the products that our company represents and sells or researches in-house.

The prices shown are for display purposes only, please contact our sales staff to get the real-time quotation information of the required instruments and equipment products;

When you confirm your purchase, we will contact you to sign a purchase and sales contract.

Our company only deals with companies and provides formal Chinese VAT special invoices.

Sales call:134 2515 8926

Sales mailbox:sales@euttest.com

Company Wechat: euttest
