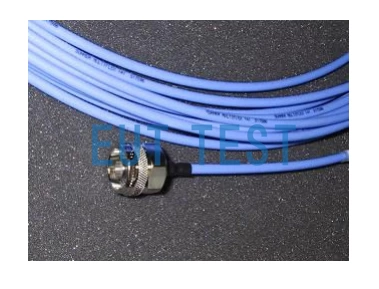

AK 9515H 18 GHz RF coaxial cable Length can be customized

Model: AK 9515H
Type: RF cable
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

AK 9515H is produced by Germany Schwarzbeck and authorized by Shenzhen EUTTEST agent sales of 18 GHz RF coaxial cable, the cable in the frequency range up to 18 GHz insertion loss is very low, and has a strong flexibility to deal with the actual use of RF cable in the actual use of the cable in the process of constantly changing direction of the actual situation, the AK 9515 H cable's inner conductor consists of silver-plated The inner conductor of the AK 9515 H cable consists of silver-plated copper wire. The inner conductor has a diameter of 0.92 mm. The outer conductor is double shielded with a silver-plated copper foil and a copper braid. The low-loss dielectric material is PTFE. For long service life and optimal function, mechanical stresses such as crushing, bending and twisting should be avoided.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberAK 9515H
manufacturerSchwarzbeck
agentShenzhen EUT TEST
impedance50Ω
capacitors95 pF/m
frequency of useBelow 18 GHz
shielding effectiveness>90dB at 1GHz frequency
Cable Diameter4.14 mm
Bending Diameter60 mm
operating temperature-40°C to 65°C
connectorN, SMA, other fittings can be customized
lengthscustomizable
attenuationVariation with frequency, see decay graph below
<<<<提醒:左右滑动表格>>>>

The above customizable parameters need to be determined at the time of order and contact us to start production.

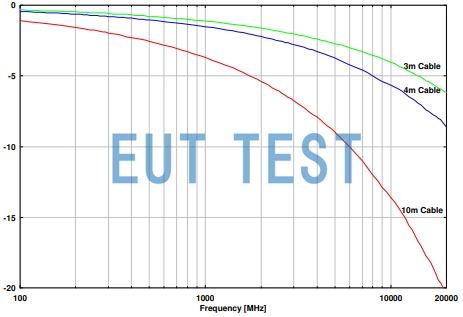

Attenuation curves of 18 GHz RF coaxial cable type AK 9515H with frequency and length variations

Attenuation graph of RF coaxial cable with frequency and length variation

Coaxial cable shopping method:

Please start with one of the following coaxial cables in the frequency range you need to test:

Selecting the right modelAnd thenProvide cable length and connector type to EUTTEST. Get quotes and lead times from our sales staff.

We only offer new imported coaxial cables, no used goods or defective products.
