Introduction：

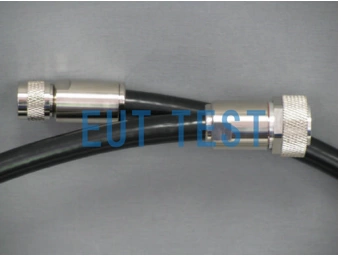

The AK 9515G is a 6 GHz RF coaxial cable with 50 Ω impedance manufactured by Schwarzbeck, Germany, and authorized for sale by EUTTEST Shenzhen. 9515G has extremely low losses over the entire frequency range and is flexible enough to be used especially for radiated immunity or inductance measurements. Since amplifier power is extremely expensive and the attenuation of cables in field strength generation systems must therefore be minimized, the cable offers low losses in the frequency range up to 6 GHz, good flexibility, and a robust design with an inner conductor consisting of stranded wires (7 x 1.55 mm), an inner conductor with a diameter of 4.5 mm, an outer conductor consisting of copper mesh, and a low-loss dielectric consisting of polyethylene (PE). For long service life and optimal functioning, mechanical stresses such as crushing, bending and twisting should be avoided.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | AK 9515G |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUT TEST |
| impedance | 50Ω |
| capacitors | 77 pF/m |
| frequency of use | Below 6 GHz |
| input power | 190W-6500W with frequency variation |
| peak voltage | 1 kV |
| Cable Diameter | 14.6 mm |
| Bending Diameter | 150 mm |
| operating temperature | -40°C to 65°C |
| connector | N, 7/16, other fittings can be customized |
| lengths | customizable |
| attenuation | Variation with frequency, see decay graph below |
The above customizable parameters need to be determined at the time of order and contact us to start production.

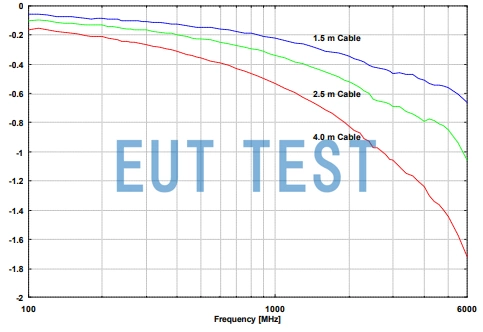

Decay graph with frequency
Coaxial cable shopping method:
Please start with one of the following coaxial cables in the frequency range you need to test:
Selecting the right modelAnd thenProvide cable length and connector type to EUTTEST. Get quotes and lead times from our sales staff.；
We only offer new imported coaxial cables, no used goods or defective products.
