Introduction：

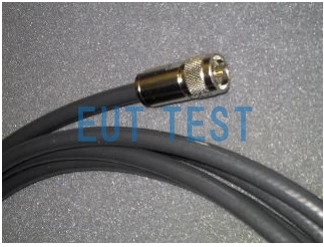

AK 9515E is produced by Germany Schwarzbeck and authorized by the Shenzhen EUTTEST agent sales of 10 GHz RF coaxial cable, impedance of 50 Ω, in the frequency range up to 10 GHz has a low loss, good flexibility and rugged design, for radiation reception test must be considered cable loss and attenuation, if the attenuation is too large, the test must be configured with an additional If the attenuation is too high, an additional preamplifier must be used to improve the signal-to-noise ratio. The cable consists of a stranded (7 x 1 mm) inner conductor with a diameter of 2.8 mm, a copper mesh outer conductor and a low-loss dielectric made of polyethylene (PE).
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | AK 9515E |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUT TEST |
| impedance | 50Ω |
| capacitors | 78 pF/m |
| frequency of use | Below 10 GHz |
| peak voltage | 1 kV |
| Cable Diameter | 10.2 mm |
| Bending Diameter | 150 mm |
| operating temperature | -40°C to 65°C |
| connector | N, other fittings can be customized |
| lengths | customizable |
| attenuation | Variation with frequency, see decay graph below |
The above customizable parameters need to be determined at the time of order and contact us to start production.

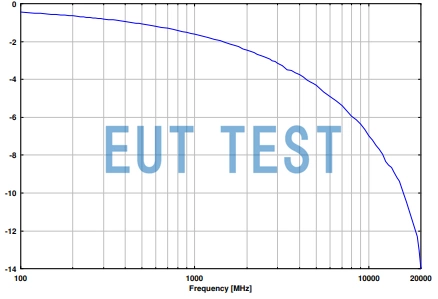

Decay graph with frequency
Coaxial cable shopping method:
Please start with one of the following coaxial cables in the frequency range you need to test:
Selecting the right modelAnd thenProvide cable length and connector type to EUTTEST. Get quotes and lead times from our sales staff.；
We only offer new imported coaxial cables, no used goods or defective products.
