Introduction：

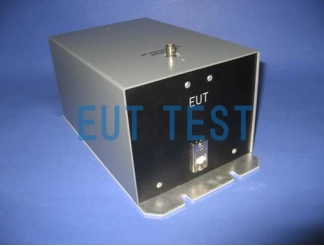

600050-FCC-801-T8-SRJ45 is a U.S. FCC company with shielded network interface CDN, can be tested in accordance with CISPR22 standards with four pairs of balanced lines of conducted common mode immunity test, the typical test object is 1000 BASE-T standard category 5 unshielded twisted-pair cable. This product is represented by Shenzhen EYT company in the national sales and quotation service.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Product model | 600050-fcc-801-t8-srj45 |
| manufacturer | United States FCC |
| agent | Shenzhen EUTTEST |
| Test Frequency | 150kHz-230MHz |
| Common mode impedance | 150kHz-30MHz Frequency: 150Ω ±20Ω At 30MHz-230MHz frequency: 150Ω +60Ω / -45Ω |
| Meets standard requirements | IEC 61000-4-6 CISPR22 |
| DUT type | 100Ω, 4 Pair Balanced Wire Module 1000 BASE-T standard Category 5 unshielded twisted pair cable <3dB insertion loss at 250MHz |
| common-mode phase (electronics) | ±20° |
| partial pressure coefficient | Approximately 9.5dB |
| common mode isolation | At 150kHz-30MHz: >60dB At 30MHz-230MHz: >40dB |
| EUT power rating | AC: 100V DC: 100V Current: 1A |
| connector | Shielded RJ45 network port |
| size | 153*128*233 mm |
| weight | 1 kg |
| Operating Temperature Range | 17°C to 29°C |
| humidity level | Within 80% |
